Datasheet MAX1472 (Maxim) - 2
| Manufacturer | Maxim |
| Description | 300MHz-to-450MHz Low-Power, Crystal-Based ASK Transmitter |
| Pages / Page | 9 / 2 — 300MHz-to-450MHz Low-Power, Crystal-Based ASK Transmitter. ABSOLUTE … |
| File Format / Size | PDF / 169 Kb |
| Document Language | English |
300MHz-to-450MHz Low-Power, Crystal-Based ASK Transmitter. ABSOLUTE MAXIMUM RATINGS. MAX1472. ELECTRICAL CHARACTERISTICS
Model Line for this Datasheet
Text Version of Document

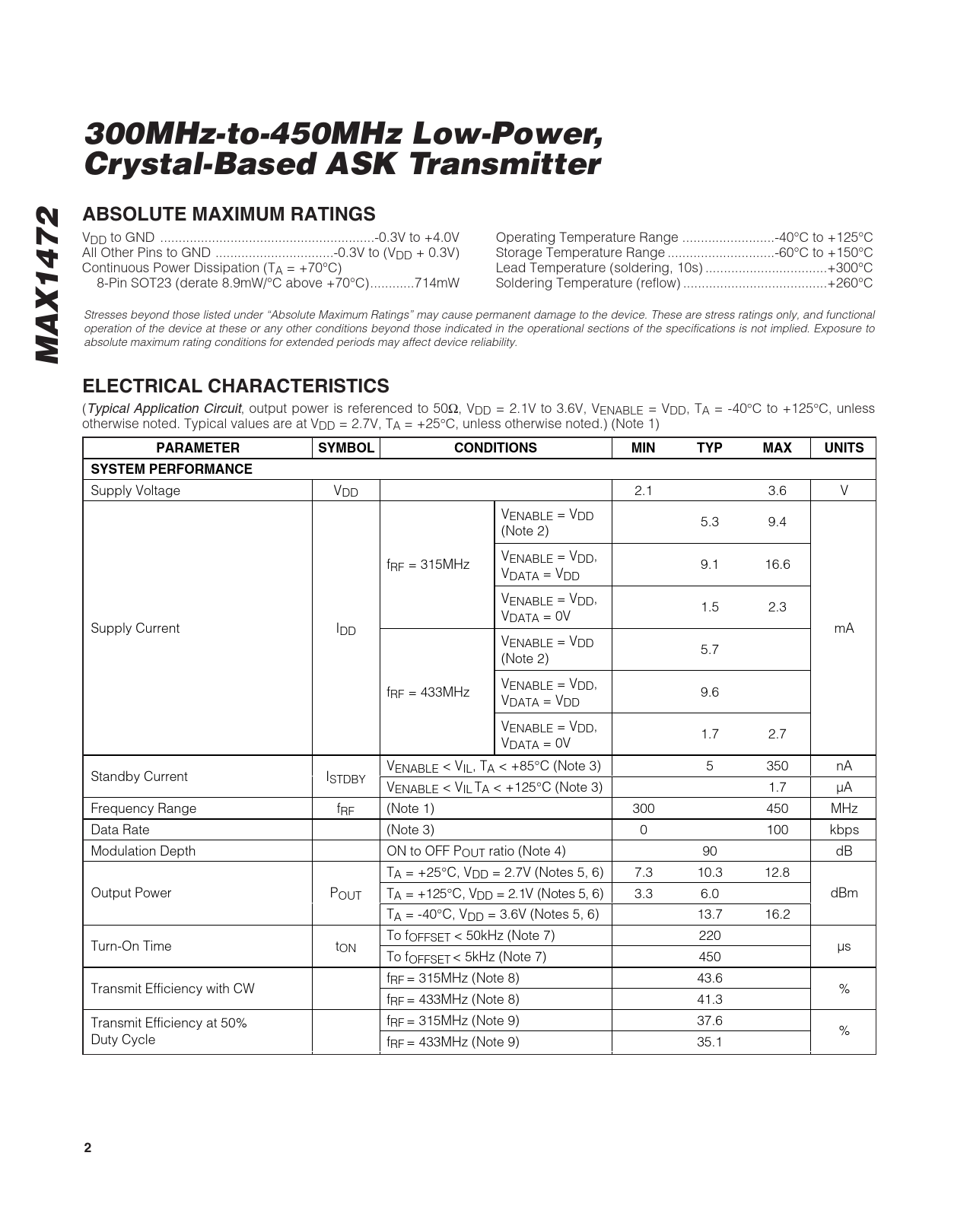

300MHz-to-450MHz Low-Power, Crystal-Based ASK Transmitter ABSOLUTE MAXIMUM RATINGS
VDD to GND ..-0.3V to +4.0V Operating Temperature Range ...-40°C to +125°C All Other Pins to GND ..-0.3V to (VDD + 0.3V) Storage Temperature Range ...-60°C to +150°C Continuous Power Dissipation (TA = +70°C) Lead Temperature (soldering, 10s) ...+300°C 8-Pin SOT23 (derate 8.9mW/°C above +70°C)..714mW Soldering Temperature (reflow) ...+260°C Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
MAX1472 ELECTRICAL CHARACTERISTICS
(Typical Application Circuit, output power is referenced to 50Ω, VDD = 2.1V to 3.6V, VENABLE = VDD, TA = -40°C to +125°C, unless otherwise noted. Typical values are at VDD = 2.7V, TA = +25°C, unless otherwise noted.) (Note 1)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS SYSTEM PERFORMANCE
Supply Voltage VDD 2.1 3.6 V VENABLE = VDD 5.3 9.4 (Note 2) VENABLE = VDD, fRF = 315MHz 9.1 16.6 VDATA = VDD VENABLE = VDD, 1.5 2.3 VDATA = 0V Supply Current IDD mA VENABLE = VDD 5.7 (Note 2) VENABLE = VDD, fRF = 433MHz 9.6 VDATA = VDD VENABLE = VDD, 1.7 2.7 VDATA = 0V VENABLE < VIL, TA < +85°C (Note 3) 5 350 nA Standby Current ISTDBY VENABLE < VIL T A < +125°C (Note 3) 1.7 µA Frequency Range fRF (Note 1) 300 450 MHz Data Rate (Note 3) 0 100 kbps Modulation Depth ON to OFF POUT ratio (Note 4) 90 dB TA = +25°C, VDD = 2.7V (Notes 5, 6) 7.3 10.3 12.8 Output Power POUT TA = + 125° C , V D D = 2.1V ( N otes 5, 6) 3.3 6.0 dBm TA = -40°C, VDD = 3.6V (Notes 5, 6) 13.7 16.2 To fOFFSET < 50kHz (Note 7) 220 Turn-On Time tON µs To fOFFSET < 5kHz (Note 7) 450 fRF = 315MHz (Note 8) 43.6 Transmit Efficiency with CW % fRF = 433MHz (Note 8) 41.3 Transmit Efficiency at 50% fRF = 315MHz (Note 9) 37.6 % Duty Cycle fRF = 433MHz (Note 9) 35.1
2
VDD to GND ..-0.3V to +4.0V Operating Temperature Range ...-40°C to +125°C All Other Pins to GND ..-0.3V to (VDD + 0.3V) Storage Temperature Range ...-60°C to +150°C Continuous Power Dissipation (TA = +70°C) Lead Temperature (soldering, 10s) ...+300°C 8-Pin SOT23 (derate 8.9mW/°C above +70°C)..714mW Soldering Temperature (reflow) ...+260°C Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
MAX1472 ELECTRICAL CHARACTERISTICS
(Typical Application Circuit, output power is referenced to 50Ω, VDD = 2.1V to 3.6V, VENABLE = VDD, TA = -40°C to +125°C, unless otherwise noted. Typical values are at VDD = 2.7V, TA = +25°C, unless otherwise noted.) (Note 1)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS SYSTEM PERFORMANCE
Supply Voltage VDD 2.1 3.6 V VENABLE = VDD 5.3 9.4 (Note 2) VENABLE = VDD, fRF = 315MHz 9.1 16.6 VDATA = VDD VENABLE = VDD, 1.5 2.3 VDATA = 0V Supply Current IDD mA VENABLE = VDD 5.7 (Note 2) VENABLE = VDD, fRF = 433MHz 9.6 VDATA = VDD VENABLE = VDD, 1.7 2.7 VDATA = 0V VENABLE < VIL, TA < +85°C (Note 3) 5 350 nA Standby Current ISTDBY VENABLE < VIL T A < +125°C (Note 3) 1.7 µA Frequency Range fRF (Note 1) 300 450 MHz Data Rate (Note 3) 0 100 kbps Modulation Depth ON to OFF POUT ratio (Note 4) 90 dB TA = +25°C, VDD = 2.7V (Notes 5, 6) 7.3 10.3 12.8 Output Power POUT TA = + 125° C , V D D = 2.1V ( N otes 5, 6) 3.3 6.0 dBm TA = -40°C, VDD = 3.6V (Notes 5, 6) 13.7 16.2 To fOFFSET < 50kHz (Note 7) 220 Turn-On Time tON µs To fOFFSET < 5kHz (Note 7) 450 fRF = 315MHz (Note 8) 43.6 Transmit Efficiency with CW % fRF = 433MHz (Note 8) 41.3 Transmit Efficiency at 50% fRF = 315MHz (Note 9) 37.6 % Duty Cycle fRF = 433MHz (Note 9) 35.1
2
