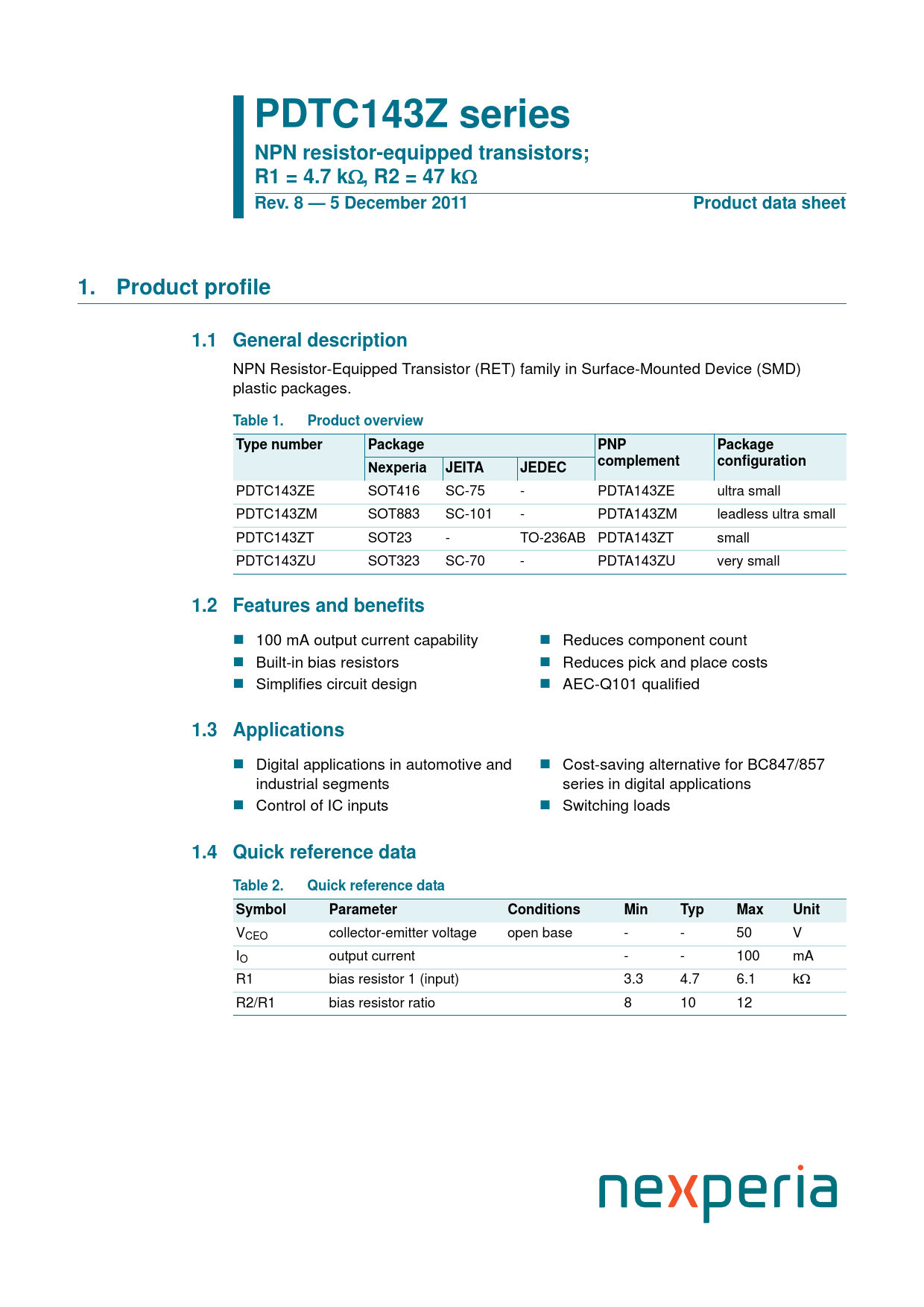

PDTC143Z series NPN resistor-equipped transistors; R1 = 4.7 k. , R2 = 47 k. Rev. 8 — 5 December 2011. Product data sheet
Model Line for this Datasheet
Text Version of Document
PDTC143Z series NPN resistor-equipped transistors; R1 = 4.7 k , R2 = 47 k Rev. 8 — 5 December 2011 Product data sheet 1. Product profile 1.1 General description
NPN Resistor-Equipped Transistor (RET) family in Surface-Mounted Device (SMD) plastic packages.
Table 1. Product overview Type number Package PNP Package complement configuration Nexperia JEITA JEDEC
PDTC143ZE SOT416 SC-75 - PDTA143ZE ultra small PDTC143ZM SOT883 SC-101 - PDTA143ZM leadless ultra small PDTC143ZT SOT23 - TO-236AB PDTA143ZT small PDTC143ZU SOT323 SC-70 - PDTA143ZU very small
1.2 Features and benefits
100 mA output current capability Reduces component count Built-in bias resistors Reduces pick and place costs Simplifies circuit design AEC-Q101 qualified
1.3 Applications
Digital applications in automotive and Cost-saving alternative for BC847/857 industrial segments series in digital applications Control of IC inputs Switching loads
1.4 Quick reference data Table 2. Quick reference data Symbol Parameter Conditions Min Typ Max Unit
VCEO collector-emitter voltage open base - - 50 V IO output current - - 100 mA R1 bias resistor 1 (input) 3.3 4.7 6.1 k R2/R1 bias resistor ratio 8 10 12 Document Outline 1. Product profile 1.1 General description 1.2 Features and benefits 1.3 Applications 1.4 Quick reference data 2. Pinning information 3. Ordering information 4. Marking 5. Limiting values 6. Thermal characteristics 7. Characteristics 8. Test information 8.1 Quality information 9. Package outline 10. Packing information 11. Soldering 12. Revision history 13. Legal information 13.1 Data sheet status 13.2 Definitions 13.3 Disclaimers 13.4 Trademarks 14. Contact information 15. Contents
