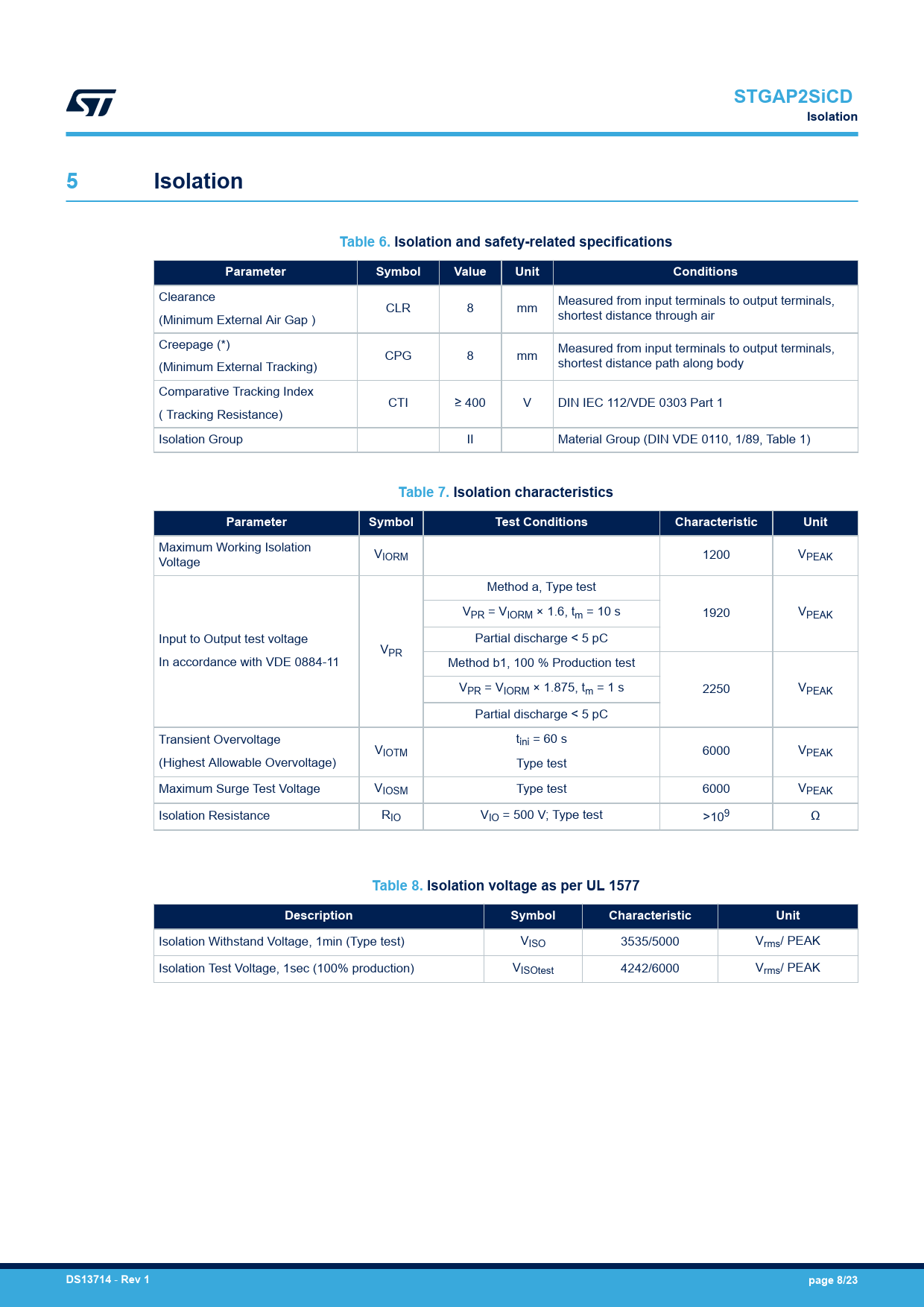

STGAP2SiCD. Isolation. Table 6. Isolation and safety-related specifications. Parameter. Symbol. Value. Unit. Conditions
Model Line for this Datasheet
Text Version of Document
STGAP2SiCD Isolation 5 Isolation Table 6. Isolation and safety-related specifications Parameter Symbol Value Unit Conditions
Clearance Measured from input terminals to output terminals, CLR 8 mm (Minimum External Air Gap ) shortest distance through air Creepage (*) Measured from input terminals to output terminals, CPG 8 mm (Minimum External Tracking) shortest distance path along body Comparative Tracking Index CTI ≥ 400 V DIN IEC 112/VDE 0303 Part 1 ( Tracking Resistance) Isolation Group II Material Group (DIN VDE 0110, 1/89, Table 1)
Table 7. Isolation characteristics Parameter Symbol Test Conditions Characteristic Unit
Maximum Working Isolation V Voltage IORM 1200 VPEAK Method a, Type test VPR = VIORM × 1.6, tm = 10 s 1920 VPEAK Input to Output test voltage Partial discharge < 5 pC VPR In accordance with VDE 0884-11 Method b1, 100 % Production test VPR = VIORM × 1.875, tm = 1 s 2250 VPEAK Partial discharge < 5 pC Transient Overvoltage tini = 60 s VIOTM 6000 VPEAK (Highest Allowable Overvoltage) Type test Maximum Surge Test Voltage VIOSM Type test 6000 VPEAK Isolation Resistance RIO VIO = 500 V; Type test >109 Ω
Table 8. Isolation voltage as per UL 1577 Description Symbol Characteristic Unit
Isolation Withstand Voltage, 1min (Type test) VISO 3535/5000 Vrms/ PEAK Isolation Test Voltage, 1sec (100% production) VISOtest 4242/6000 Vrms/ PEAK
DS13714
-
Rev 1 page 8/23
