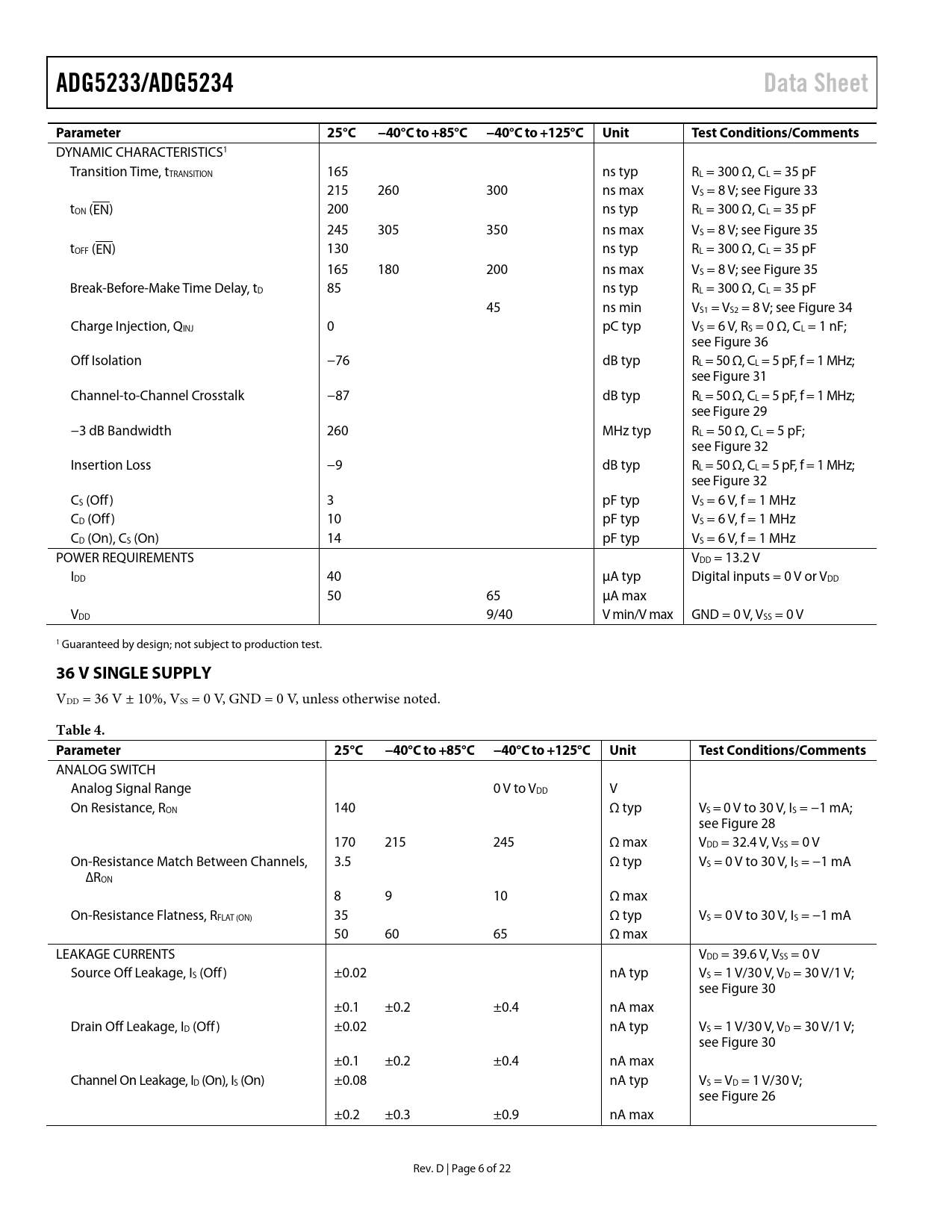

ADG5233/ADG5234. Data Sheet. Parameter. 25°C. −40°C to +85°C. −40°C to +125°C. Unit. Test Conditions/Comments. 36 V SINGLE SUPPLY
Model Line for this Datasheet
Text Version of Document
link to page 17 link to page 17 link to page 17 link to page 17 link to page 17 link to page 16 link to page 16 link to page 16 link to page 16 link to page 16 link to page 16 link to page 16 link to page 16
ADG5233/ADG5234 Data Sheet Parameter 25°C −40°C to +85°C −40°C to +125°C Unit Test Conditions/Comments
DYNAMIC CHARACTERISTICS1 Transition Time, tTRANSITION 165 ns typ RL = 300 Ω, CL = 35 pF 215 260 300 ns max VS = 8 V; see Figure 33 tON (EN) 200 ns typ RL = 300 Ω, CL = 35 pF 245 305 350 ns max VS = 8 V; see Figure 35 tOFF (EN) 130 ns typ RL = 300 Ω, CL = 35 pF 165 180 200 ns max VS = 8 V; see Figure 35 Break-Before-Make Time Delay, tD 85 ns typ RL = 300 Ω, CL = 35 pF 45 ns min VS1 = VS2 = 8 V; see Figure 34 Charge Injection, QINJ 0 pC typ VS = 6 V, RS = 0 Ω, CL = 1 nF; see Figure 36 Off Isolation −76 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 31 Channel-to-Channel Crosstalk −87 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 29 −3 dB Bandwidth 260 MHz typ RL = 50 Ω, CL = 5 pF; see Figure 32 Insertion Loss −9 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 32 CS (Off) 3 pF typ VS = 6 V, f = 1 MHz CD (Off) 10 pF typ VS = 6 V, f = 1 MHz CD (On), CS (On) 14 pF typ VS = 6 V, f = 1 MHz POWER REQUIREMENTS VDD = 13.2 V IDD 40 µA typ Digital inputs = 0 V or VDD 50 65 µA max VDD 9/40 V min/V max GND = 0 V, VSS = 0 V 1 Guaranteed by design; not subject to production test.
36 V SINGLE SUPPLY
VDD = 36 V ± 10%, VSS = 0 V, GND = 0 V, unless otherwise noted.
Table 4. Parameter 25°C −40°C to +85°C −40°C to +125°C Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range 0 V to VDD V On Resistance, RON 140 Ω typ VS = 0 V to 30 V, IS = −1 mA; see Figure 28 170 215 245 Ω max VDD = 32.4 V, VSS = 0 V On-Resistance Match Between Channels, 3.5 Ω typ VS = 0 V to 30 V, IS = −1 mA ∆RON 8 9 10 Ω max On-Resistance Flatness, RFLAT (ON) 35 Ω typ VS = 0 V to 30 V, IS = −1 mA 50 60 65 Ω max LEAKAGE CURRENTS VDD = 39.6 V, VSS = 0 V Source Off Leakage, IS (Off) ±0.02 nA typ VS = 1 V/30 V, VD = 30 V/1 V; see Figure 30 ±0.1 ±0.2 ±0.4 nA max Drain Off Leakage, ID (Off) ±0.02 nA typ VS = 1 V/30 V, VD = 30 V/1 V; see Figure 30 ±0.1 ±0.2 ±0.4 nA max Channel On Leakage, ID (On), IS (On) ±0.08 nA typ VS = VD = 1 V/30 V; see Figure 26 ±0.2 ±0.3 ±0.9 nA max Rev. D | Page 6 of 22 Document Outline Features Applications Functional Block Diagrams General Description Product Highlights Table of Contents Revision History Specifications ±15 V Dual Supply ±20 V Dual Supply 12 V Single Supply 36 V Single Supply Continuous Current per Channel, Sx or Dx Absolute Maximum Ratings ESD Caution Pin Configurations and Function Descriptions Typical Performance Characteristics Test Circuits Terminology Trench Isolation Applications Information Outline Dimensions Ordering Guide
