Datasheet ADG5233, ADG5234 (Analog Devices) - 8

ManufacturerAnalog Devices
DescriptionHigh Voltage Latch-Up Proof, Triple/Quad SPDT Switches
Pages / Page22 / 8 — ADG5233/ADG5234. Data Sheet. Table 6. ADG5234. Parameter. 25°C. 85°C. …
RevisionD
File Format / SizePDF / 478 Kb
Document LanguageEnglish

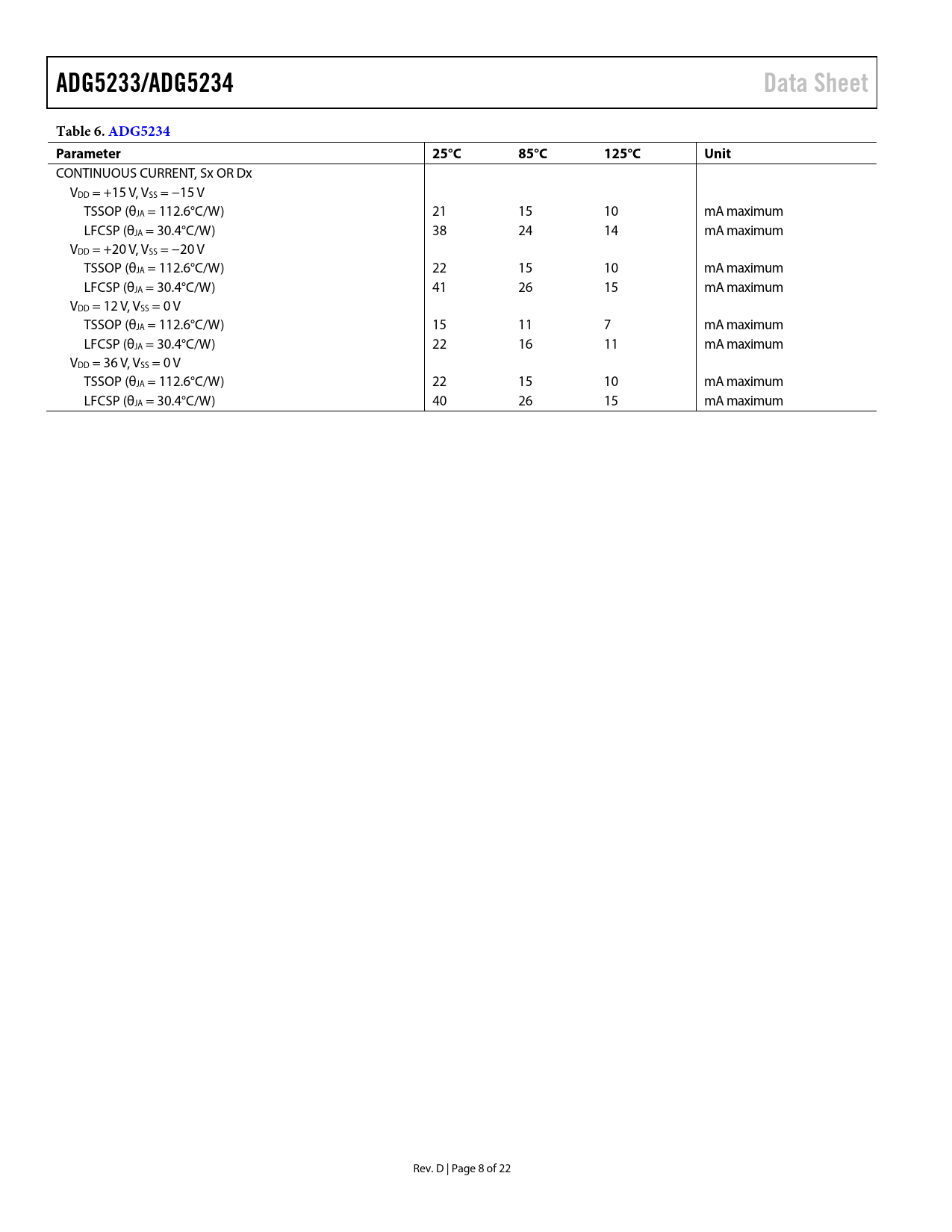

ADG5233/ADG5234. Data Sheet. Table 6. ADG5234. Parameter. 25°C. 85°C. 125°C. Unit

ADG5233/ADG5234 Data Sheet Table 6 ADG5234 Parameter 25°C 85°C 125°C Unit

Model Line for this Datasheet

Text Version of Document

ADG5233/ADG5234 Data Sheet Table 6. ADG5234 Parameter 25°C 85°C 125°C Unit
CONTINUOUS CURRENT, Sx OR Dx VDD = +15 V, VSS = −15 V TSSOP (θJA = 112.6°C/W) 21 15 10 mA maximum LFCSP (θJA = 30.4°C/W) 38 24 14 mA maximum VDD = +20 V, VSS = −20 V TSSOP (θJA = 112.6°C/W) 22 15 10 mA maximum LFCSP (θJA = 30.4°C/W) 41 26 15 mA maximum VDD = 12 V, VSS = 0 V TSSOP (θJA = 112.6°C/W) 15 11 7 mA maximum LFCSP (θJA = 30.4°C/W) 22 16 11 mA maximum VDD = 36 V, VSS = 0 V TSSOP (θJA = 112.6°C/W) 22 15 10 mA maximum LFCSP (θJA = 30.4°C/W) 40 26 15 mA maximum Rev. D | Page 8 of 22 Document Outline Features Applications Functional Block Diagrams General Description Product Highlights Table of Contents Revision History Specifications ±15 V Dual Supply ±20 V Dual Supply 12 V Single Supply 36 V Single Supply Continuous Current per Channel, Sx or Dx Absolute Maximum Ratings ESD Caution Pin Configurations and Function Descriptions Typical Performance Characteristics Test Circuits Terminology Trench Isolation Applications Information Outline Dimensions Ordering Guide
