| Manufacturer | Analog Devices |
| Description | 9.5 Ω RON ±15 V/+12 V/±5 V iCMOS Serially-Controlled Octal SPST Switches |
| Pages / Page | 19 / 7 — Data Sheet. ADG1414. −40°C to −40°C to. Parameter. +25°C. +85°C. +125°C. … |
| Revision | B |
| File Format / Size | PDF / 536 Kb |
| Document Language | English |

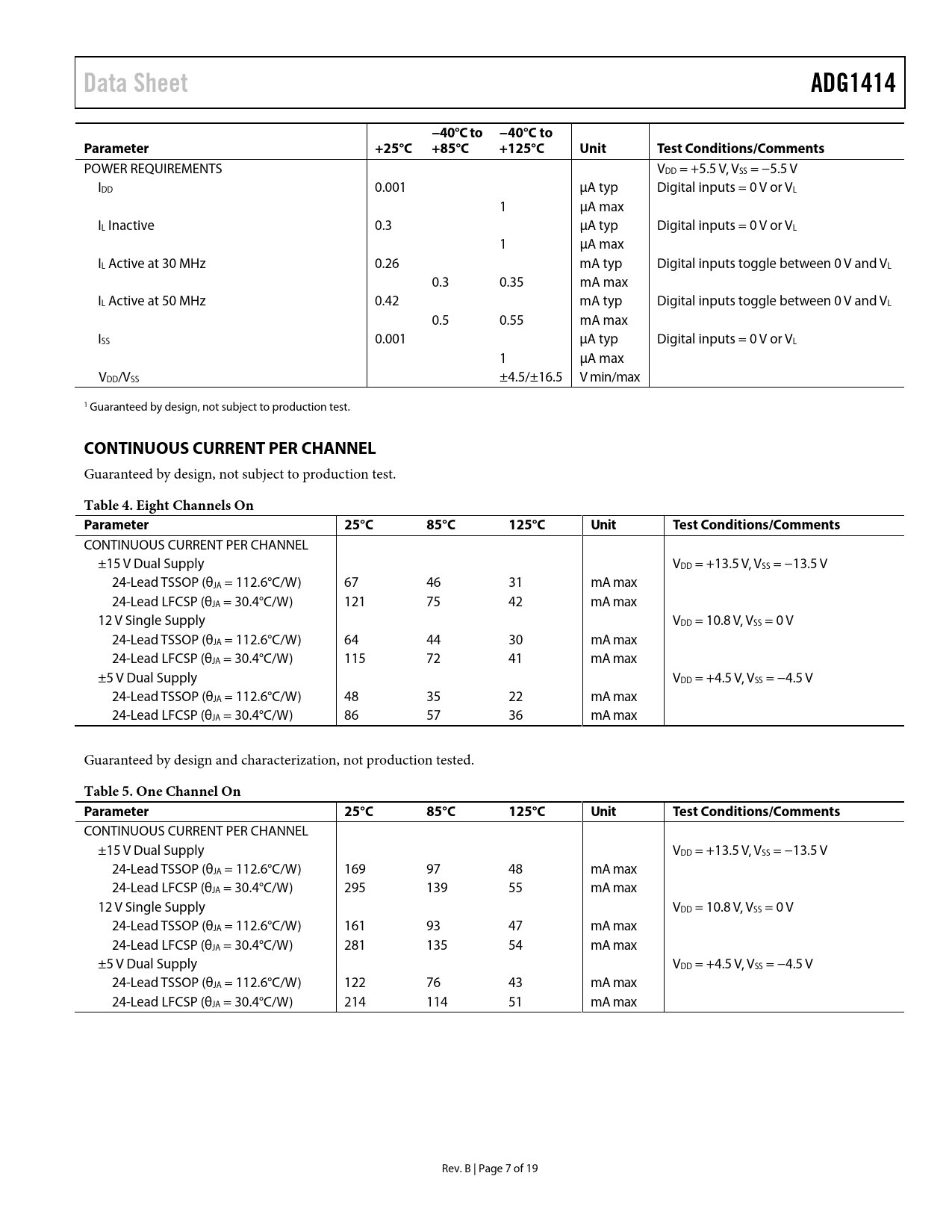

Data Sheet. ADG1414. −40°C to −40°C to. Parameter. +25°C. +85°C. +125°C. Unit. Test Conditions/Comments. CONTINUOUS CURRENT PER CHANNEL
Model Line for this Datasheet
Text Version of Document
Data Sheet ADG1414 −40°C to −40°C to Parameter +25°C +85°C +125°C Unit Test Conditions/Comments
POWER REQUIREMENTS VDD = +5.5 V, VSS = −5.5 V IDD 0.001 µA typ Digital inputs = 0 V or VL 1 µA max IL Inactive 0.3 µA typ Digital inputs = 0 V or VL 1 µA max IL Active at 30 MHz 0.26 mA typ Digital inputs toggle between 0 V and VL 0.3 0.35 mA max IL Active at 50 MHz 0.42 mA typ Digital inputs toggle between 0 V and VL 0.5 0.55 mA max ISS 0.001 µA typ Digital inputs = 0 V or VL 1 µA max VDD/VSS ±4.5/±16.5 V min/max 1 Guaranteed by design, not subject to production test.
CONTINUOUS CURRENT PER CHANNEL
Guaranteed by design, not subject to production test.
Table 4. Eight Channels On Parameter 25°C 85°C 125°C Unit Test Conditions/Comments
CONTINUOUS CURRENT PER CHANNEL ±15 V Dual Supply VDD = +13.5 V, VSS = −13.5 V 24-Lead TSSOP (θJA = 112.6°C/W) 67 46 31 mA max 24-Lead LFCSP (θJA = 30.4°C/W) 121 75 42 mA max 12 V Single Supply VDD = 10.8 V, VSS = 0 V 24-Lead TSSOP (θJA = 112.6°C/W) 64 44 30 mA max 24-Lead LFCSP (θJA = 30.4°C/W) 115 72 41 mA max ±5 V Dual Supply VDD = +4.5 V, VSS = −4.5 V 24-Lead TSSOP (θJA = 112.6°C/W) 48 35 22 mA max 24-Lead LFCSP (θJA = 30.4°C/W) 86 57 36 mA max Guaranteed by design and characterization, not production tested.
Table 5. One Channel On Parameter 25°C 85°C 125°C Unit Test Conditions/Comments
CONTINUOUS CURRENT PER CHANNEL ±15 V Dual Supply VDD = +13.5 V, VSS = −13.5 V 24-Lead TSSOP (θJA = 112.6°C/W) 169 97 48 mA max 24-Lead LFCSP (θJA = 30.4°C/W) 295 139 55 mA max 12 V Single Supply VDD = 10.8 V, VSS = 0 V 24-Lead TSSOP (θJA = 112.6°C/W) 161 93 47 mA max 24-Lead LFCSP (θJA = 30.4°C/W) 281 135 54 mA max ±5 V Dual Supply VDD = +4.5 V, VSS = −4.5 V 24-Lead TSSOP (θJA = 112.6°C/W) 122 76 43 mA max 24-Lead LFCSP (θJA = 30.4°C/W) 214 114 51 mA max Rev. B | Page 7 of 19 Document Outline Features Applications Functional Block Diagram Product Highlights Revision History Specifications ±15 V Dual Supply 12 V Single Supply ±5 V Dual Supply Continuous Current per Channel Timing Characteristics Timing Diagrams Absolute Maximum Ratings Thermal Resistance ESD Caution Pin Configurations and Function Descriptions Typical Performance Characteristics Test Circuits Terminology Theory of Operation Serial Interface Input Shift Register Power-On Reset Daisy Chaining Outline Dimensions Ordering Guide
