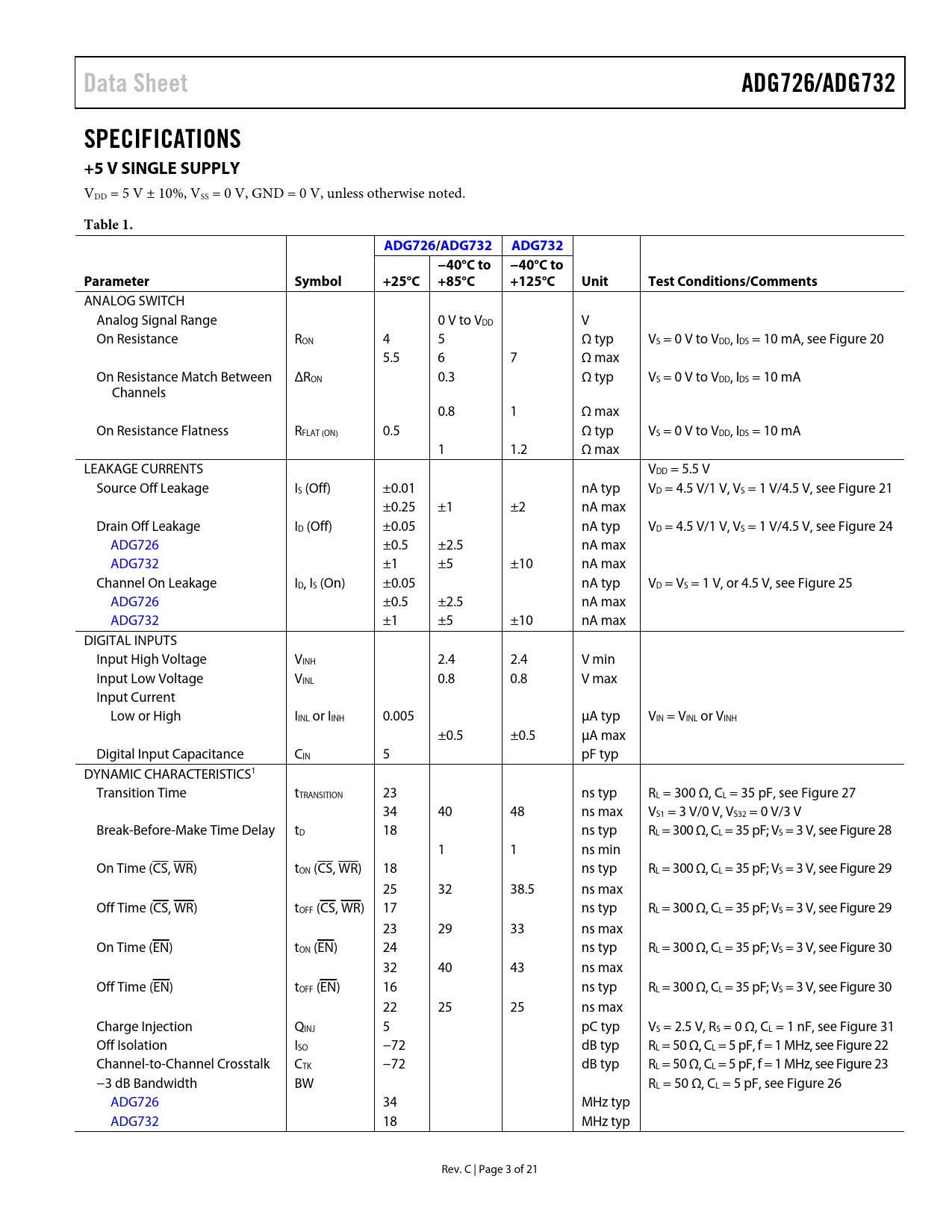

Data Sheet ADG726/ADG732 SPECIFICATIONS +5 V SINGLE SUPPLY
VDD = 5 V ± 10%, VSS = 0 V, GND = 0 V, unless otherwise noted.
Table 1. ADG726/ ADG732 ADG732 −40°C to −40°C to Parameter Symbol +25°C +85°C +125°C Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range 0 V to VDD V On Resistance RON 4 5 Ω typ VS = 0 V to VDD, IDS = 10 mA, see Figure 20 5.5 6 7 Ω max On Resistance Match Between ΔRON 0.3 Ω typ VS = 0 V to VDD, IDS = 10 mA Channels 0.8 1 Ω max On Resistance Flatness RFLAT (ON) 0.5 Ω typ VS = 0 V to VDD, IDS = 10 mA 1 1.2 Ω max LEAKAGE CURRENTS VDD = 5.5 V Source Off Leakage IS (Off) ±0.01 nA typ VD = 4.5 V/1 V, VS = 1 V/4.5 V, see Figure 21 ±0.25 ±1 ±2 nA max Drain Off Leakage ID (Off) ±0.05 nA typ VD = 4.5 V/1 V, VS = 1 V/4.5 V, see Figure 24 ADG726 ±0.5 ±2.5 nA max ADG732 ±1 ±5 ±10 nA max Channel On Leakage ID, IS (On) ±0.05 nA typ VD = VS = 1 V, or 4.5 V, see Figure 25 ADG726 ±0.5 ±2.5 nA max ADG732 ±1 ±5 ±10 nA max DIGITAL INPUTS Input High Voltage VINH 2.4 2.4 V min Input Low Voltage VINL 0.8 0.8 V max Input Current Low or High IINL or IINH 0.005 μA typ VIN = VINL or VINH ±0.5 ±0.5 μA max Digital Input Capacitance CIN 5 pF typ DYNAMIC CHARACTERISTICS1 Transition Time tTRANSITION 23 ns typ RL = 300 Ω, CL = 35 pF, see Figure 27 34 40 48 ns max VS1 = 3 V/0 V, VS32 = 0 V/3 V Break-Before-Make Time Delay tD 18 ns typ RL = 300 Ω, CL = 35 pF; VS = 3 V, see Figure 28 1 1 ns min On Time (CS, WR) tON (CS, WR) 18 ns typ RL = 300 Ω, CL = 35 pF; VS = 3 V, see Figure 29 25 32 38.5 ns max Off Time (CS, WR) tOFF (CS, WR) 17 ns typ RL = 300 Ω, CL = 35 pF; VS = 3 V, see Figure 29 23 29 33 ns max On Time (EN) tON (EN) 24 ns typ RL = 300 Ω, CL = 35 pF; VS = 3 V, see Figure 30 32 40 43 ns max Off Time (EN) tOFF (EN) 16 ns typ RL = 300 Ω, CL = 35 pF; VS = 3 V, see Figure 30 22 25 25 ns max Charge Injection QINJ 5 pC typ VS = 2.5 V, RS = 0 Ω, CL = 1 nF, see Figure 31 Off Isolation ISO −72 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz, see Figure 22 Channel-to-Channel Crosstalk CTK −72 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz, see Figure 23 −3 dB Bandwidth BW RL = 50 Ω, CL = 5 pF, see Figure 26 ADG726 34 MHz typ ADG732 18 MHz typ Rev. C | Page 3 of 21 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAMS GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS +5 V SINGLE SUPPLY +3 V SINGLE SUPPLY ±2.5 V DUAL SUPPLY TIMING CHARACTERISTICS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTION 48-LEAD TQFP 48-LEAD LFCSP Truth Tables TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY OUTLINE DIMENSIONS ORDERING GUIDE
