Datasheet ADG619-EP (Analog Devices) - 6
| Manufacturer | Analog Devices |
| Description | CMOS, ±5 V/+5 V, 4 Ω, Single SPDT Switch |
| Pages / Page | 12 / 6 — ADG619-EP. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. VSS. TOP VIEW. … |
| File Format / Size | PDF / 226 Kb |
| Document Language | English |

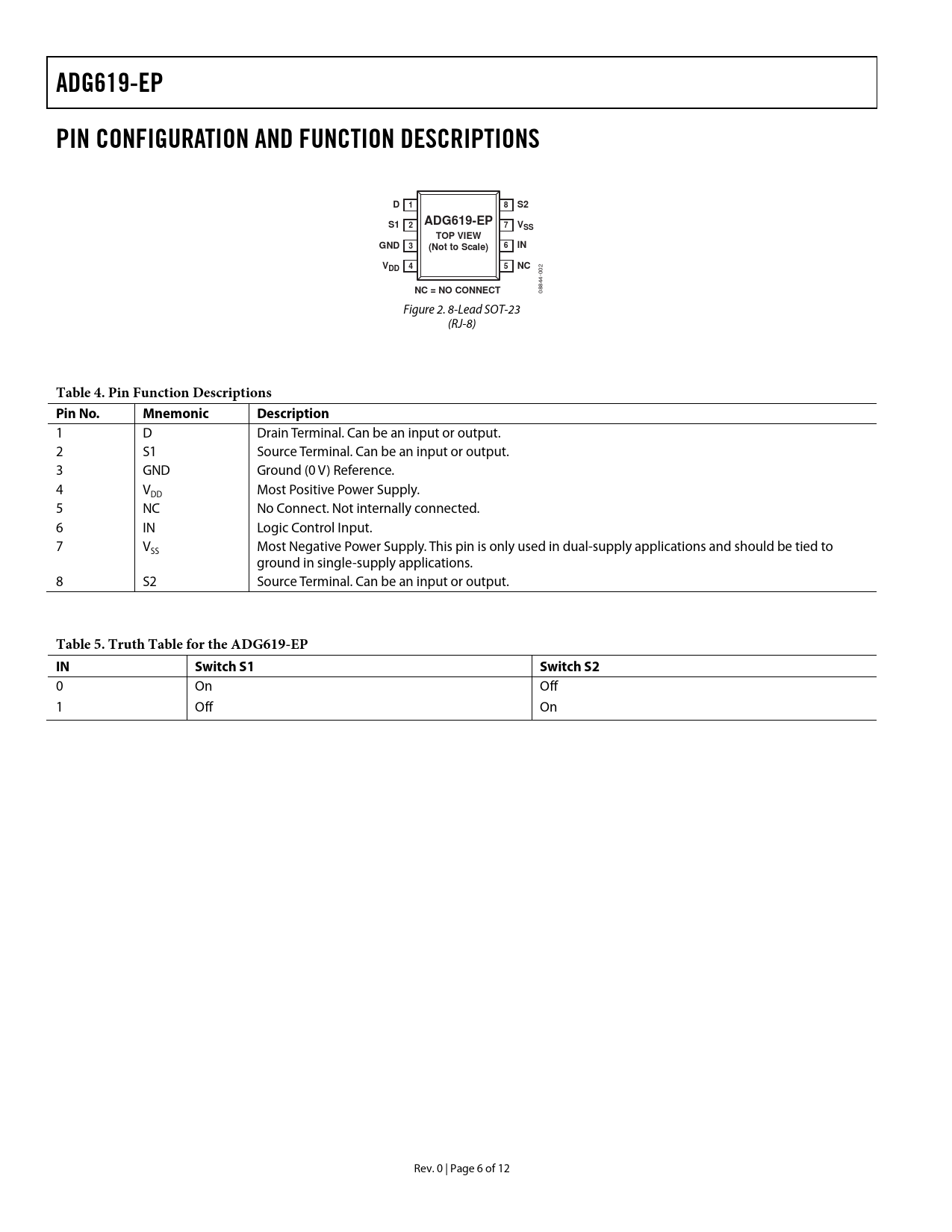

ADG619-EP. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. VSS. TOP VIEW. GND. (Not to Scale). VDD 4. NC = NO CONNECT
Model Line for this Datasheet
Text Version of Document
ADG619-EP PIN CONFIGURATION AND FUNCTION DESCRIPTIONS D 1 8 S2 S1 ADG619-EP 2 7 VSS TOP VIEW GND 3 6 (Not to Scale) IN VDD 4 5 NC
002
NC = NO CONNECT
08844- Figure 2. 8-Lead SOT-23 (RJ-8)
Table 4. Pin Function Descriptions Pin No. Mnemonic Description
1 D Drain Terminal. Can be an input or output. 2 S1 Source Terminal. Can be an input or output. 3 GND Ground (0 V) Reference. 4 V Most Positive Power Supply. DD 5 NC No Connect. Not internally connected. 6 IN Logic Control Input. 7 V Most Negative Power Supply. This pin is only used in dual-supply applications and should be tied to SS ground in single-supply applications. 8 S2 Source Terminal. Can be an input or output.
Table 5. Truth Table for the ADG619-EP IN Switch S1 Switch S2
0 On Off 1 Off On Rev. 0 | Page 6 of 12 Document Outline Features Applications Functional Block Diagram General Description Product Highlights Revision History Specifications Dual Supply Single Supply Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Test Circuits Outline Dimensions Ordering Guide
