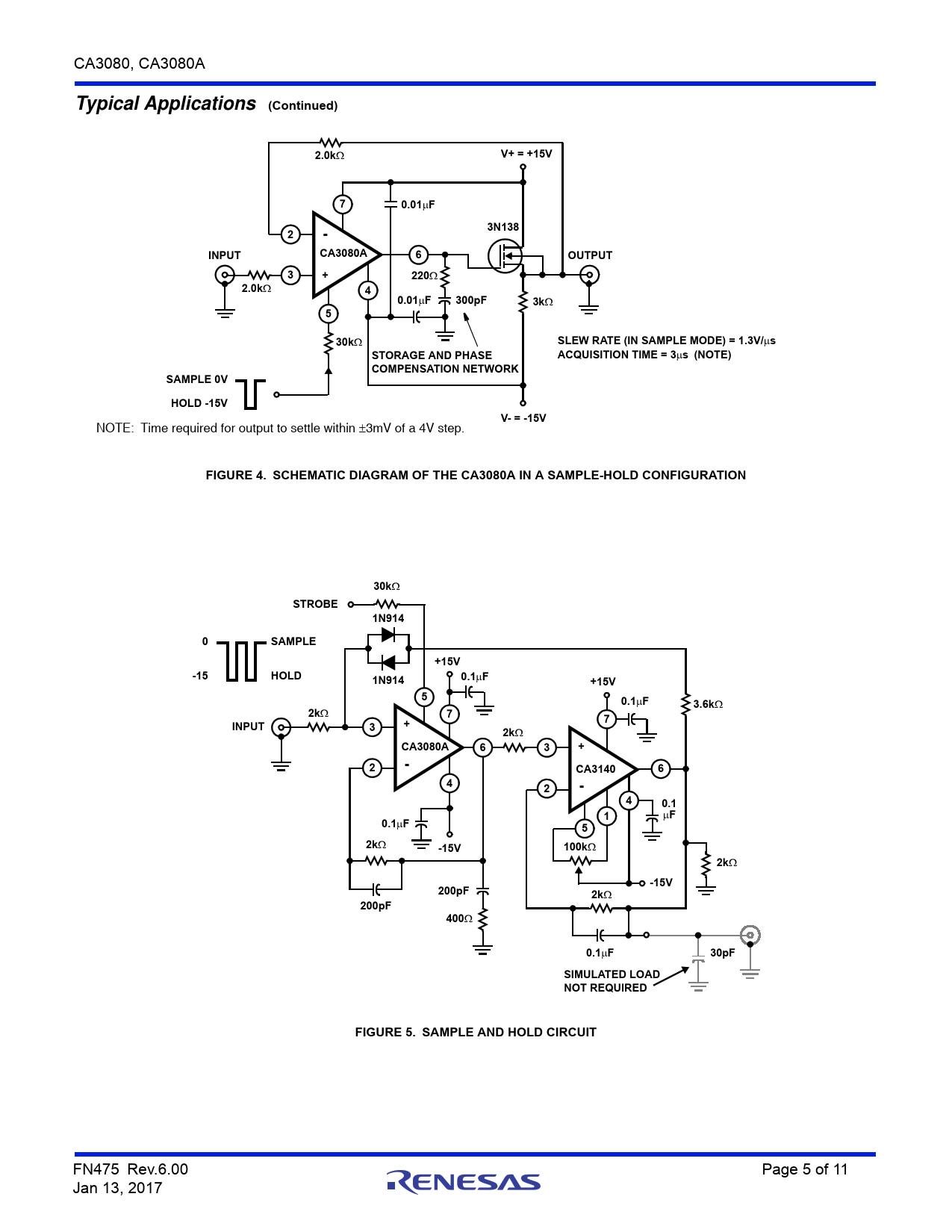

CA3080, CA3080A
Typical Applications (Continued) 2.0k V+ = +15V 7 0.01
F 3N138 2 - INPUT CA3080A 6 OUTPUT 3 + 220 2.0k 4 0.01
F 300pF 3k 5 30k SLEW RATE (IN SAMPLE MODE) = 1.3V/
s STORAGE AND PHASE ACQUISITION TIME = 3
s (NOTE) COMPENSATION NETWORK SAMPLE 0V HOLD -15V V- = -15V
NOTE: Time required for output to settle within 3mV of a 4V step.
FIGURE 4. SCHEMATIC DIAGRAM OF THE CA3080A IN A SAMPLE-HOLD CONFIGURATION 30k STROBE 1N914 0 SAMPLE +15V -15 HOLD 1N914 0.1
F +15V 5 0.1
F 3.6k 2k 7 INPUT + 7 3 2k CA3080A 6 3 + 2 - CA3140 6 4 2 - 4 0.1 1
F 0.1
F 5 2k -15V 100k 2k -15V 200pF 2k 200pF 400 0.1
F 30pF SIMULATED LOAD NOT REQUIRED FIGURE 5. SAMPLE AND HOLD CIRCUIT
