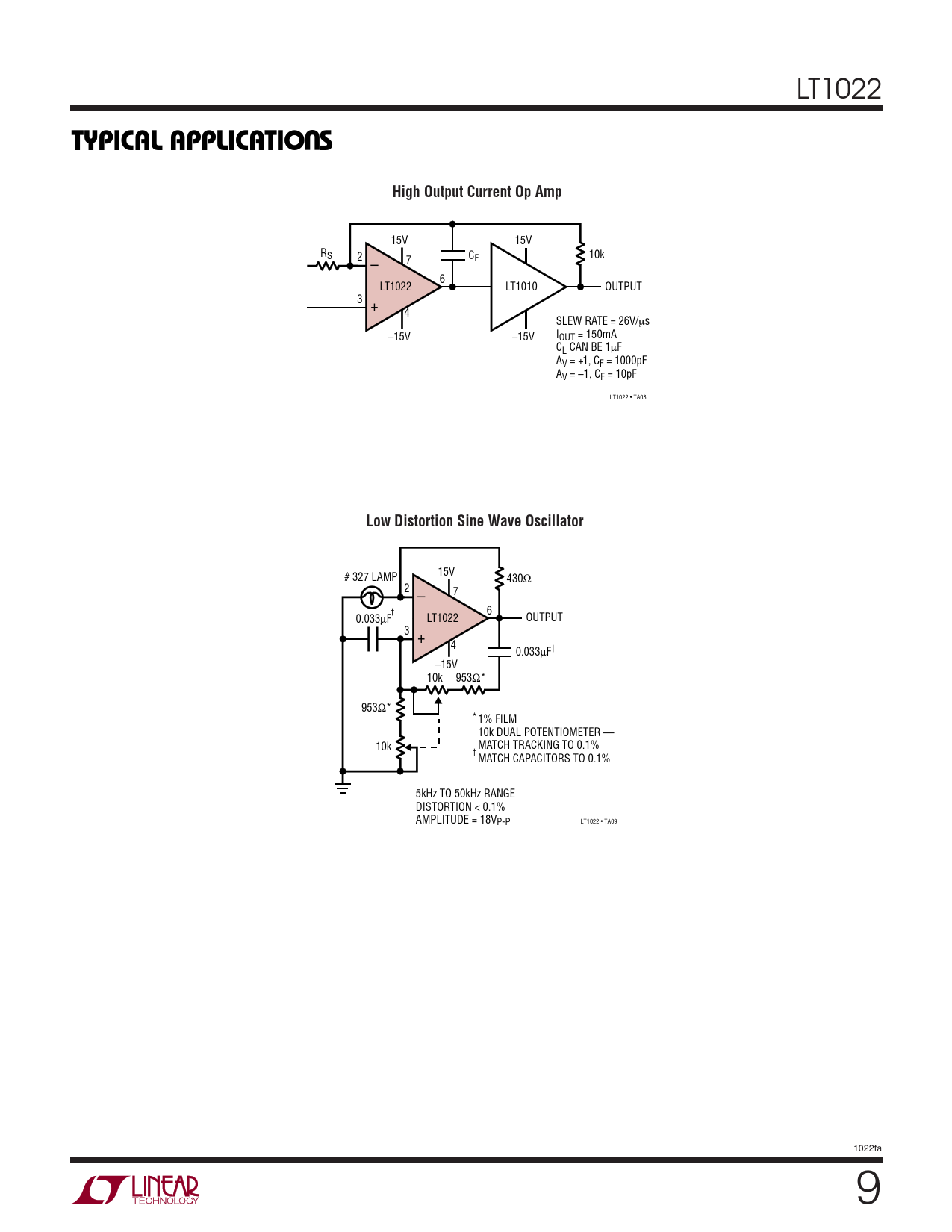

LT1022
U TYPICAL APPLICATIO S High Output Current Op Amp
15V 15V RS 2 CF 10k 7 – 6 LT1022 LT1010 OUTPUT 3 + 4 SLEW RATE = 26V/µs –15V –15V IOUT = 150mA CL CAN BE 1µF AV = +1, CF = 1000pF AV = –1, CF = 10pF LT1022 • TA08
Low Distortion Sine Wave Oscillator
15V # 327 LAMP 430Ω 2 7 – † 6 0.033µF LT1022 OUTPUT 3 + 4 0.033µF† –15V 10k 953Ω* 953Ω* *1% FILM 10k DUAL POTENTIOMETER — 10k MATCH TRACKING TO 0.1% † MATCH CAPACITORS TO 0.1% 5kHz TO 50kHz RANGE DISTORTION < 0.1% AMPLITUDE = 18V LT1022 • TA09 P-P 1022fa 9
