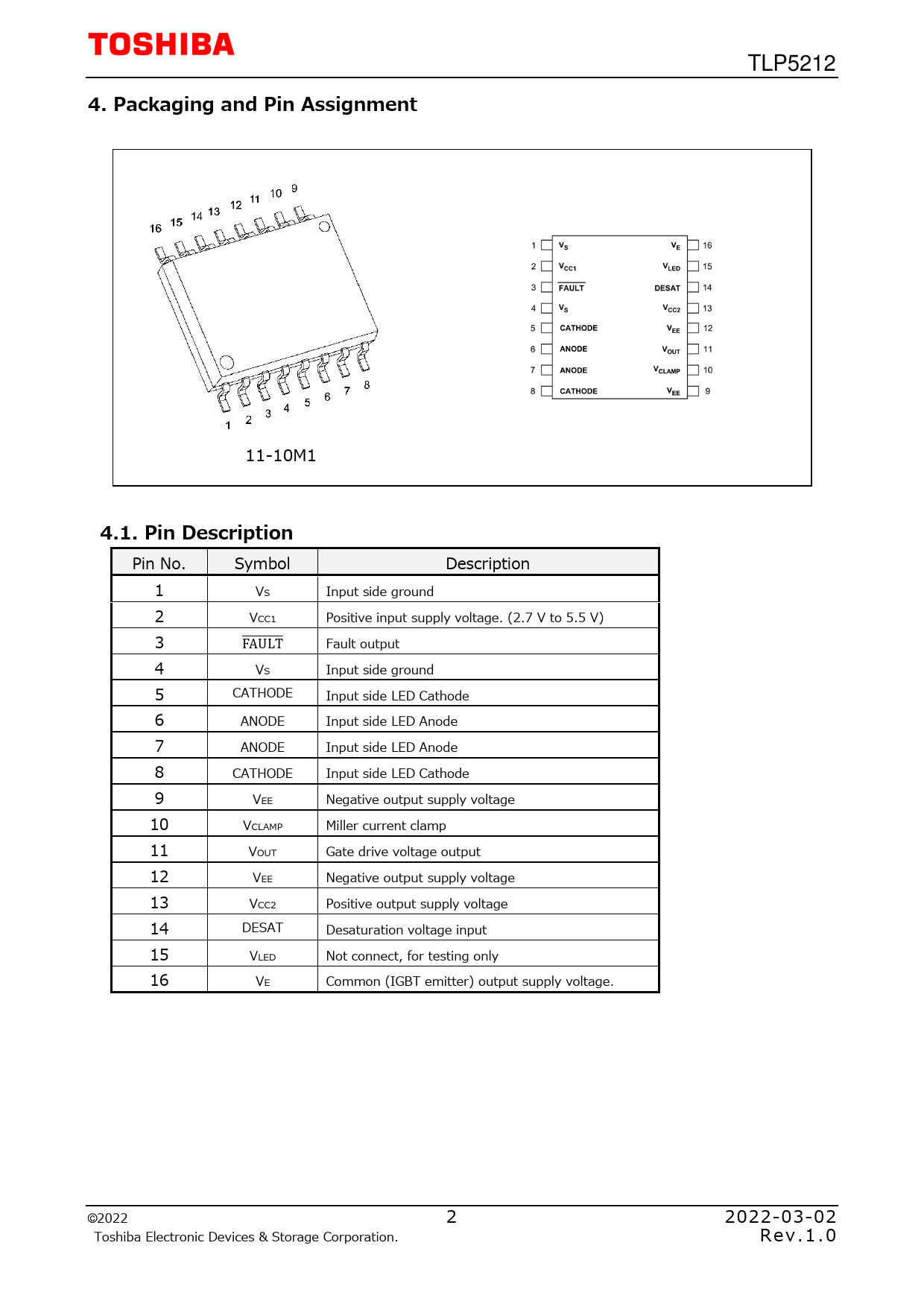

TLP5212
4. Packaging and Pin Assignment
11-10M1
4.1. Pin Description
Pin No. Symbol Description 1 VS Input side ground 2 VCC1 Positive input supply voltage. (2.7 V to 5.5 V) 3 FAULT Fault output 4 VS Input side ground 5 CATHODE Input side LED Cathode 6 ANODE Input side LED Anode 7 ANODE Input side LED Anode 8 CATHODE Input side LED Cathode 9 VEE Negative output supply voltage 10 VCLAMP Miller current clamp 11 VOUT Gate drive voltage output 12 VEE Negative output supply voltage 13 VCC2 Positive output supply voltage 14 DESAT Desaturation voltage input 15 VLED Not connect, for testing only 16 VE Common (IGBT emitter) output supply voltage. ©2022 2 2022-03-02 Toshiba Electronic Devices & Storage Corporation. Rev.1.0
