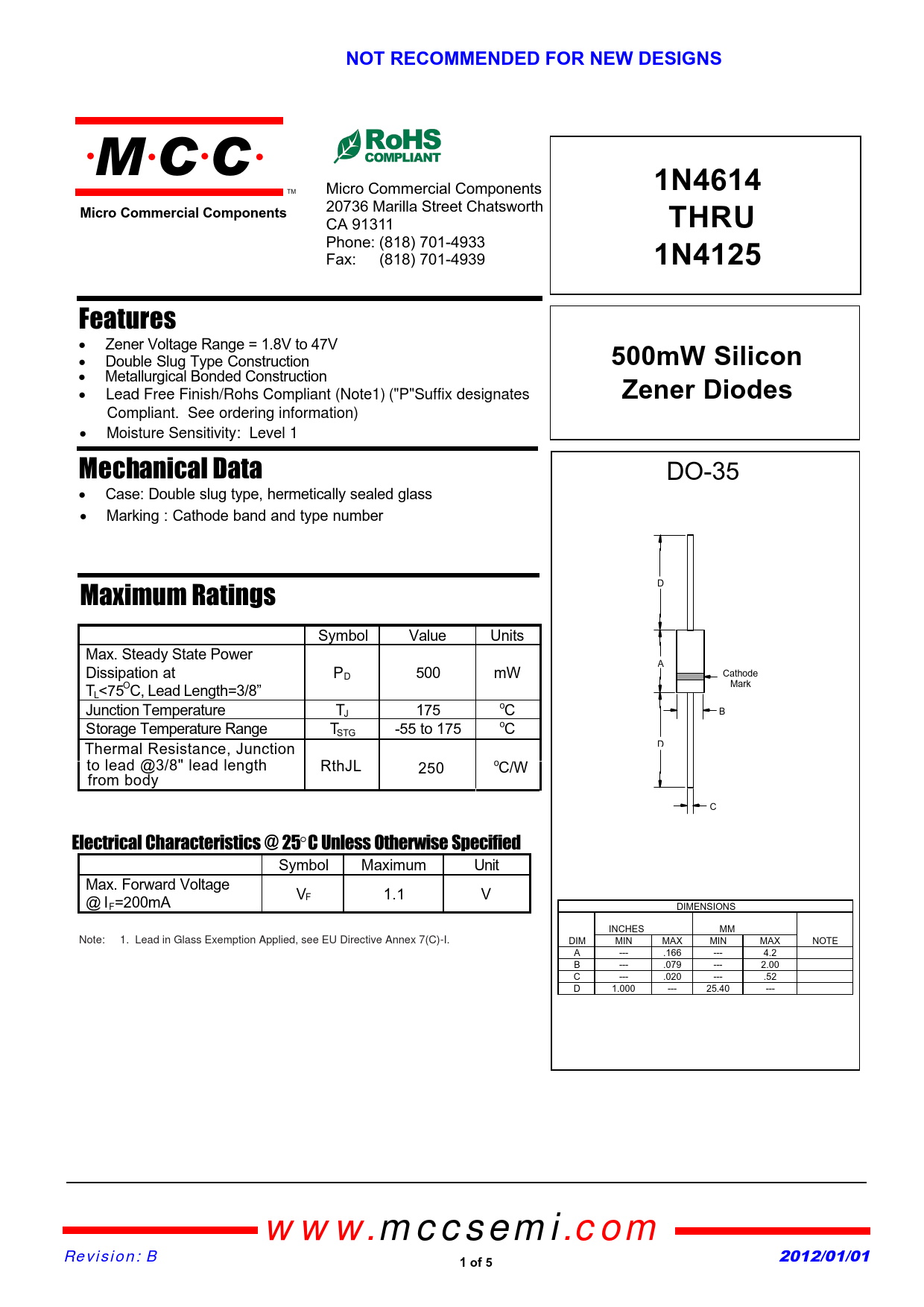

NOT RECOMMENDED FOR NEW DESIGNS. 1N4614. Micro Commercial Components. THRU. 1N4125. 500mW Silicon. Zener Diodes. 1 of 5
Model Line for this Datasheet
Text Version of Document
NOT RECOMMENDED FOR NEW DESIGNS
M C C TM omponents
1N4614
20736 Marilla Street Chatsworth
Micro Commercial Components THRU
!"# $ % !"#
1N4125
Features • Zener Voltage Range = 1.8V to 47V • Double Slug Type Construction
500mW Silicon
• Metallurgical Bonded Construction • Lead Free Finish/Rohs Compliant (Note1) ("P"Suffix designates
Zener Diodes
Compliant. See ordering information) • Moisture Sensitivity: Level 1 Mechanical Data DO-35 • Case: Double slug type, hermetically sealed glass • Marking : Cathode band and type number D Maximum Ratings Symbol Value Units Max. Steady State Power A Dissipation at PD 500 mW Cathode Mark TL<75OC, Lead Length=3/8” Junction Temperature TJ 175 oC B Storage Temperature Range TSTG -55 to 175 oC D Thermal Resistance, Junction to lead @3/8" lead length RthJL 250 oC/W from body C Electrical Characteristics @ 25°C Unless Otherwise Specified Symbol Maximum Unit Max. Forward Voltage V @ I F 1.1 V F=200mA DIMENSIONS INCHES MM Note: 1. Lead in Glass Exemption Applied, see EU Directive Annex 7(C)-I. DIM MIN MAX MIN MAX NOTE A --- .166 --- 4.2 B --- .079 --- 2.00 C --- .020 --- .52 D 1.000 --- 25.40 --- www.mccsemi.com Revision: B 2012/01/01
1 of 5
