Datasheet 1N4099 (MCC) - 3
| Manufacturer | MCC |
| Description | 500mW Silicon Zener Diodes |
| Pages / Page | 5 / 3 — Micro Commercial Components. Figure 1. Range for Units to 12 Volts. … |
| File Format / Size | PDF / 200 Kb |
| Document Language | English |

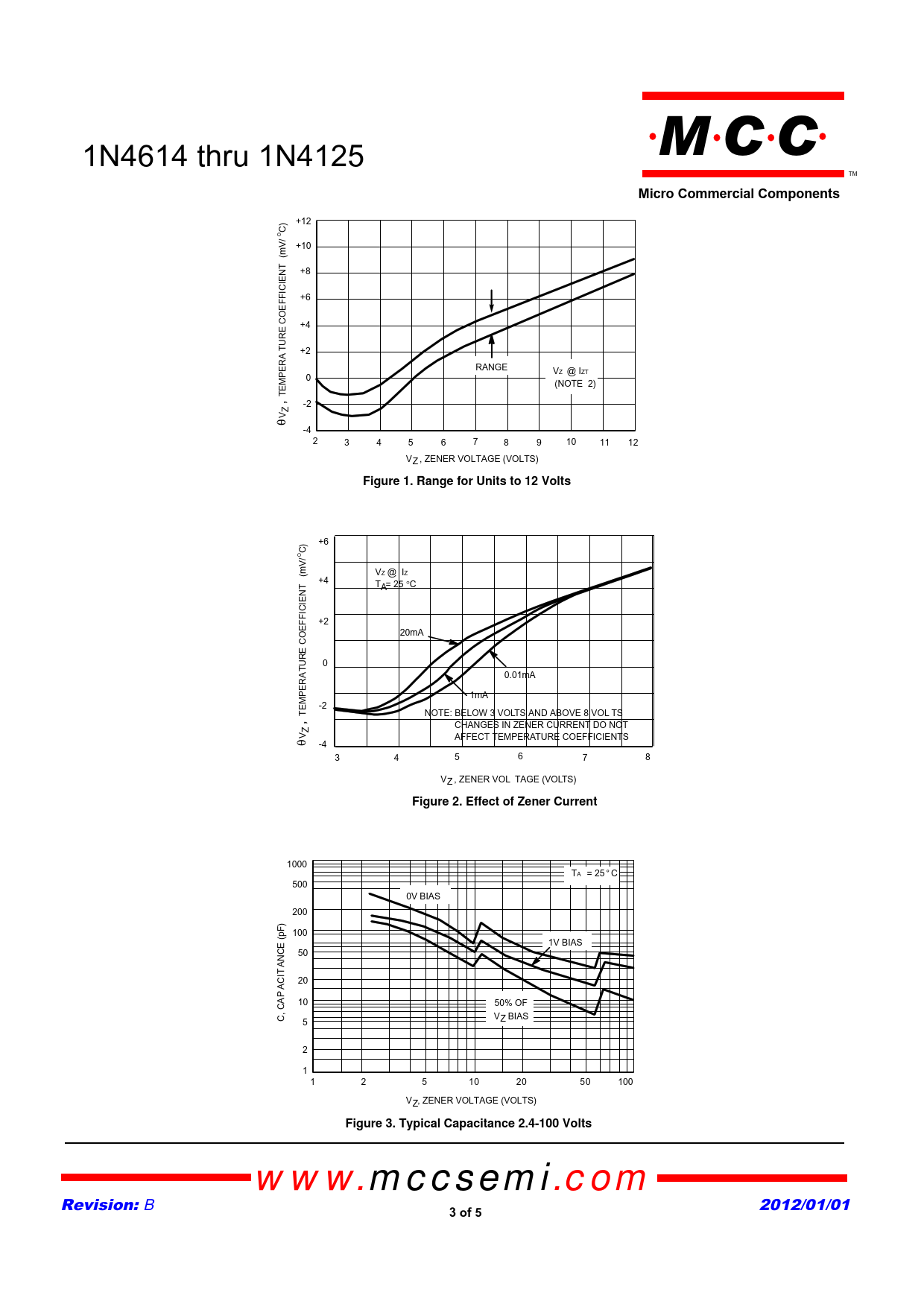

Micro Commercial Components. Figure 1. Range for Units to 12 Volts. Figure 2. Effect of Zener Current
Model Line for this Datasheet
Text Version of Document
1N4614 thru 1N4125 M C C TM
Micro Commercial Components
+12 °C) +10 (mV/ +8 +6 +4 TURE COEFFICIENT +2 RANGE VZ @ IZT 0 (NOTE 2) ,TEMPERA -2 ZθV -4 2 3 4 5 6 7 8 9 10 11 12 VZ , ZENER VOLTAGE (VOLTS)
Figure 1. Range for Units to 12 Volts
+6 °C) VZ @ IZ (mV/ +4 TA= 25 °C +2 20mA 0 TURE COEFFICIENT 0.01mA 1mA -2 NOTE: BELOW 3 VOLTS AND ABOVE 8 VOL TS ,TEMPERA NOTE: CHANGES IN ZENER CURRENT DO NOT Z NOTE: AFFECT TEMPERATURE COEFFICIENTS θV -4 3 4 5 6 7 8 VZ , ZENER VOL TAGE (VOLTS)
Figure 2. Effect of Zener Current
1000 TA = 25 ° C 500 0V BIAS 200 100 1V BIAS 50 ANCE (pF) 20 ACIT 10 50% OF C, CAP V 5 Z BIAS 2 1 1 2 5 10 20 50 100 VZ, ZENER VOLTAGE (VOLTS)
Figure 3. Typical Capacitance 2.4-100 Volts
