Datasheet SFH610A, SFH6106 (Vishay) - 3
| Manufacturer | Vishay |
| Description | Optocoupler, Phototransistor Output, High Reliability, 5300 VRMS |
| Pages / Page | 9 / 3 — SFH610A, SFH6106. CURRENT TRANSFER RATIO PARAMETER. TEST CONDITION. PART. … |
| File Format / Size | PDF / 178 Kb |
| Document Language | English |

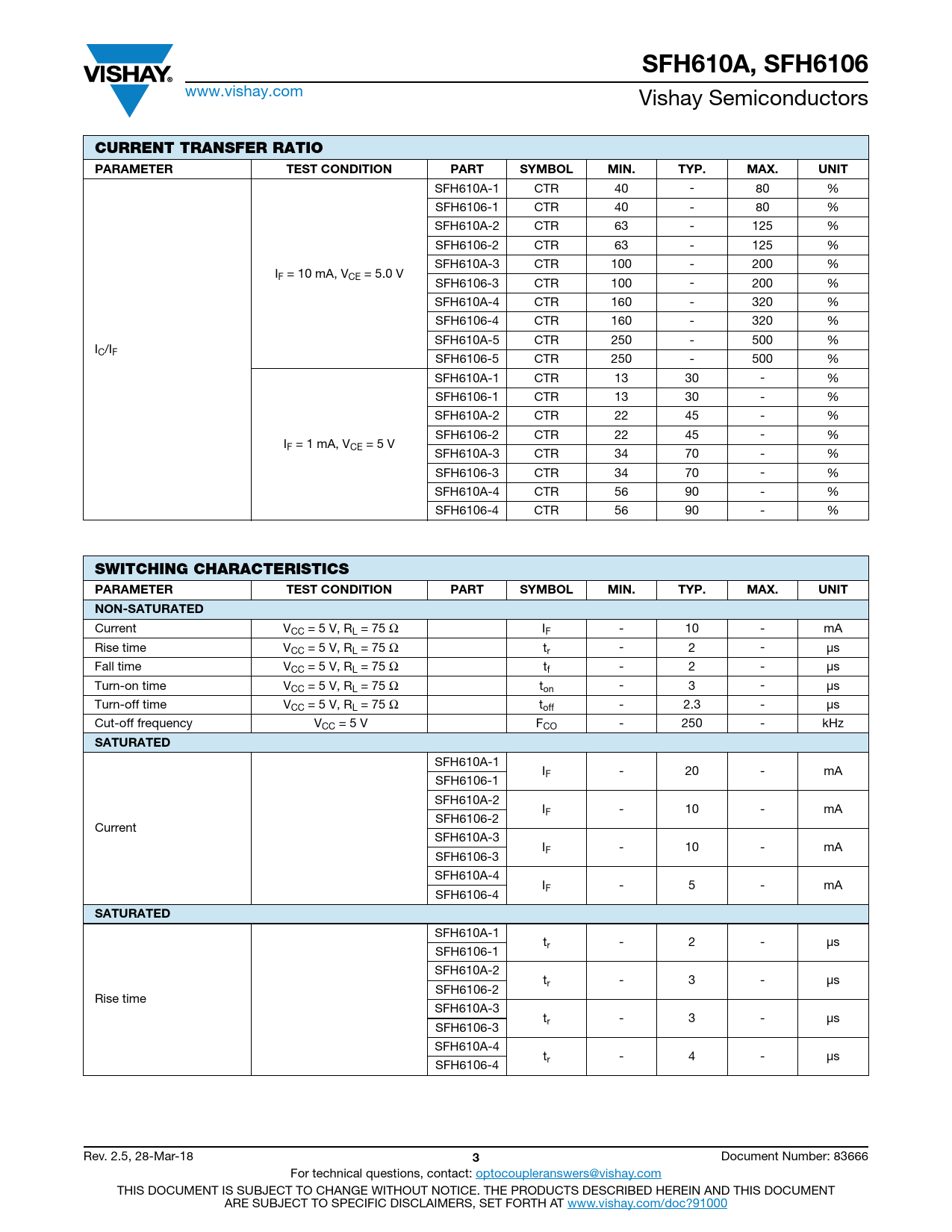

SFH610A, SFH6106. CURRENT TRANSFER RATIO PARAMETER. TEST CONDITION. PART. SYMBOL. MIN. TYP. MAX. UNIT
Model Line for this Datasheet
Text Version of Document
SFH610A, SFH6106
www.vishay.com Vishay Semiconductors
CURRENT TRANSFER RATIO PARAMETER TEST CONDITION PART SYMBOL MIN. TYP. MAX. UNIT
SFH610A-1 CTR 40 - 80 % SFH6106-1 CTR 40 - 80 % SFH610A-2 CTR 63 - 125 % SFH6106-2 CTR 63 - 125 % SFH610A-3 CTR 100 - 200 % IF = 10 mA, VCE = 5.0 V SFH6106-3 CTR 100 - 200 % SFH610A-4 CTR 160 - 320 % SFH6106-4 CTR 160 - 320 % SFH610A-5 CTR 250 - 500 % IC/IF SFH6106-5 CTR 250 - 500 % SFH610A-1 CTR 13 30 - % SFH6106-1 CTR 13 30 - % SFH610A-2 CTR 22 45 - % SFH6106-2 CTR 22 45 - % IF = 1 mA, VCE = 5 V SFH610A-3 CTR 34 70 - % SFH6106-3 CTR 34 70 - % SFH610A-4 CTR 56 90 - % SFH6106-4 CTR 56 90 - %
SWITCHING CHARACTERISTICS PARAMETER TEST CONDITION PART SYMBOL MIN. TYP. MAX. UNIT NON-SATURATED
Current VCC = 5 V, RL = 75 Ω IF - 10 - mA Rise time VCC = 5 V, RL = 75 Ω tr - 2 - μs Fall time VCC = 5 V, RL = 75 Ω tf - 2 - μs Turn-on time VCC = 5 V, RL = 75 Ω ton - 3 - μs Turn-off time VCC = 5 V, RL = 75 Ω toff - 2.3 - μs Cut-off frequency VCC = 5 V FCO - 250 - kHz
SATURATED
SFH610A-1 IF - 20 - mA SFH6106-1 SFH610A-2 IF - 10 - mA SFH6106-2 Current SFH610A-3 IF - 10 - mA SFH6106-3 SFH610A-4 IF - 5 - mA SFH6106-4
SATURATED
SFH610A-1 tr - 2 - μs SFH6106-1 SFH610A-2 tr - 3 - μs SFH6106-2 Rise time SFH610A-3 tr - 3 - μs SFH6106-3 SFH610A-4 tr - 4 - μs SFH6106-4 Rev. 2.5, 28-Mar-18
