Datasheet ADA4097-1, ADA4097-2 (Analog Devices) - 6
| Manufacturer | Analog Devices |
| Description | 50 V, 130 kHz, 32.5 µA per Channel, Robust, Over-The-Top, Precision Op Amps |
| Pages / Page | 31 / 6 — ADA4097-1/ADA4097-2. SPECIFICATIONS. Table 2. B Grade. H Grade. … |
| File Format / Size | PDF / 1.8 Mb |
| Document Language | English |
ADA4097-1/ADA4097-2. SPECIFICATIONS. Table 2. B Grade. H Grade. Parameter. Test Conditions/Comments. Min. Typ. Max. Unit. analog.com
Model Line for this Datasheet
Text Version of Document
link to page 7 Data Sheet

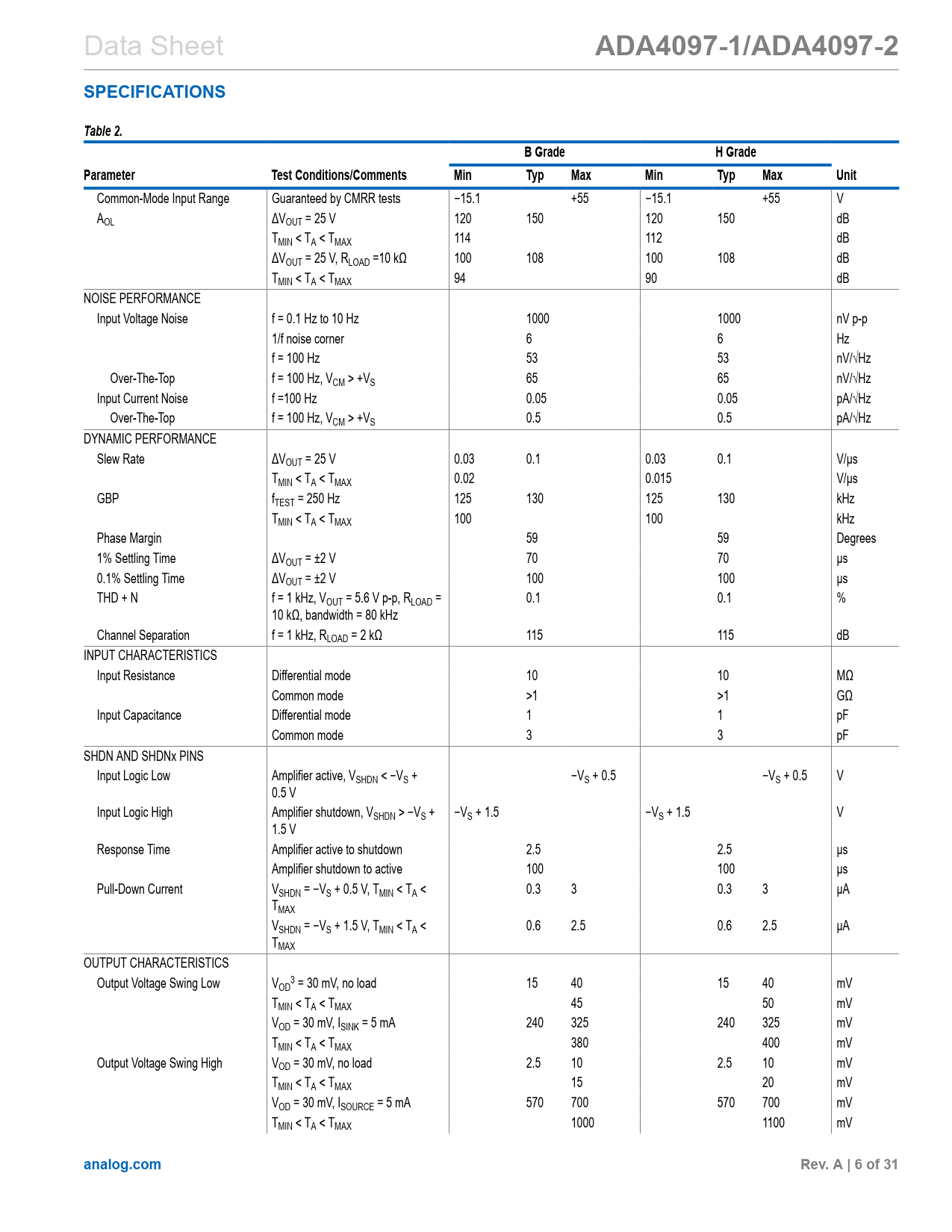

ADA4097-1/ADA4097-2 SPECIFICATIONS Table 2. B Grade H Grade Parameter Test Conditions/Comments Min Typ Max Min Typ Max Unit
Common-Mode Input Range Guaranteed by CMRR tests −15.1 +55 −15.1 +55 V AOL ΔVOUT = 25 V 120 150 120 150 dB TMIN < TA < TMAX 114 112 dB ΔVOUT = 25 V, RLOAD =10 kΩ 100 108 100 108 dB TMIN < TA < TMAX 94 90 dB NOISE PERFORMANCE Input Voltage Noise f = 0.1 Hz to 10 Hz 1000 1000 nV p-p 1/f noise corner 6 6 Hz f = 100 Hz 53 53 nV/√Hz Over-The-Top f = 100 Hz, VCM > +VS 65 65 nV/√Hz Input Current Noise f =100 Hz 0.05 0.05 pA/√Hz Over-The-Top f = 100 Hz, VCM > +VS 0.5 0.5 pA/√Hz DYNAMIC PERFORMANCE Slew Rate ΔVOUT = 25 V 0.03 0.1 0.03 0.1 V/µs TMIN < TA < TMAX 0.02 0.015 V/µs GBP fTEST = 250 Hz 125 130 125 130 kHz TMIN < TA < TMAX 100 100 kHz Phase Margin 59 59 Degrees 1% Settling Time ΔVOUT = ±2 V 70 70 µs 0.1% Settling Time ΔVOUT = ±2 V 100 100 µs THD + N f = 1 kHz, VOUT = 5.6 V p-p, RLOAD = 0.1 0.1 % 10 kΩ, bandwidth = 80 kHz Channel Separation f = 1 kHz, RLOAD = 2 kΩ 115 115 dB INPUT CHARACTERISTICS Input Resistance Differential mode 10 10 MΩ Common mode >1 >1 GΩ Input Capacitance Differential mode 1 1 pF Common mode 3 3 pF SHDN AND SHDNx PINS Input Logic Low Amplifier active, VSHDN < −VS + −VS + 0.5 −VS + 0.5 V 0.5 V Input Logic High Amplifier shutdown, VSHDN > −VS + −VS + 1.5 −VS + 1.5 V 1.5 V Response Time Amplifier active to shutdown 2.5 2.5 µs Amplifier shutdown to active 100 100 µs Pull-Down Current VSHDN = −VS + 0.5 V, TMIN < TA < 0.3 3 0.3 3 µA TMAX VSHDN = −VS + 1.5 V, TMIN < TA < 0.6 2.5 0.6 2.5 µA TMAX OUTPUT CHARACTERISTICS Output Voltage Swing Low V 3 OD = 30 mV, no load 15 40 15 40 mV TMIN < TA < TMAX 45 50 mV VOD = 30 mV, ISINK = 5 mA 240 325 240 325 mV TMIN < TA < TMAX 380 400 mV Output Voltage Swing High VOD = 30 mV, no load 2.5 10 2.5 10 mV TMIN < TA < TMAX 15 20 mV VOD = 30 mV, ISOURCE = 5 mA 570 700 570 700 mV TMIN < TA < TMAX 1000 1100 mV
analog.com Rev. A | 6 of 31
