Datasheet ADA4097-1, ADA4097-2 (Analog Devices) - 7
| Manufacturer | Analog Devices |
| Description | 50 V, 130 kHz, 32.5 µA per Channel, Robust, Over-The-Top, Precision Op Amps |
| Pages / Page | 31 / 7 — ADA4097-1/ADA4097-2. SPECIFICATIONS. Table 2. B Grade. H Grade. … |
| File Format / Size | PDF / 1.8 Mb |
| Document Language | English |
ADA4097-1/ADA4097-2. SPECIFICATIONS. Table 2. B Grade. H Grade. Parameter. Test Conditions/Comments. Min. Typ. Max. Unit. analog.com
Model Line for this Datasheet
Text Version of Document
link to page 7 link to page 7 link to page 5 Data Sheet

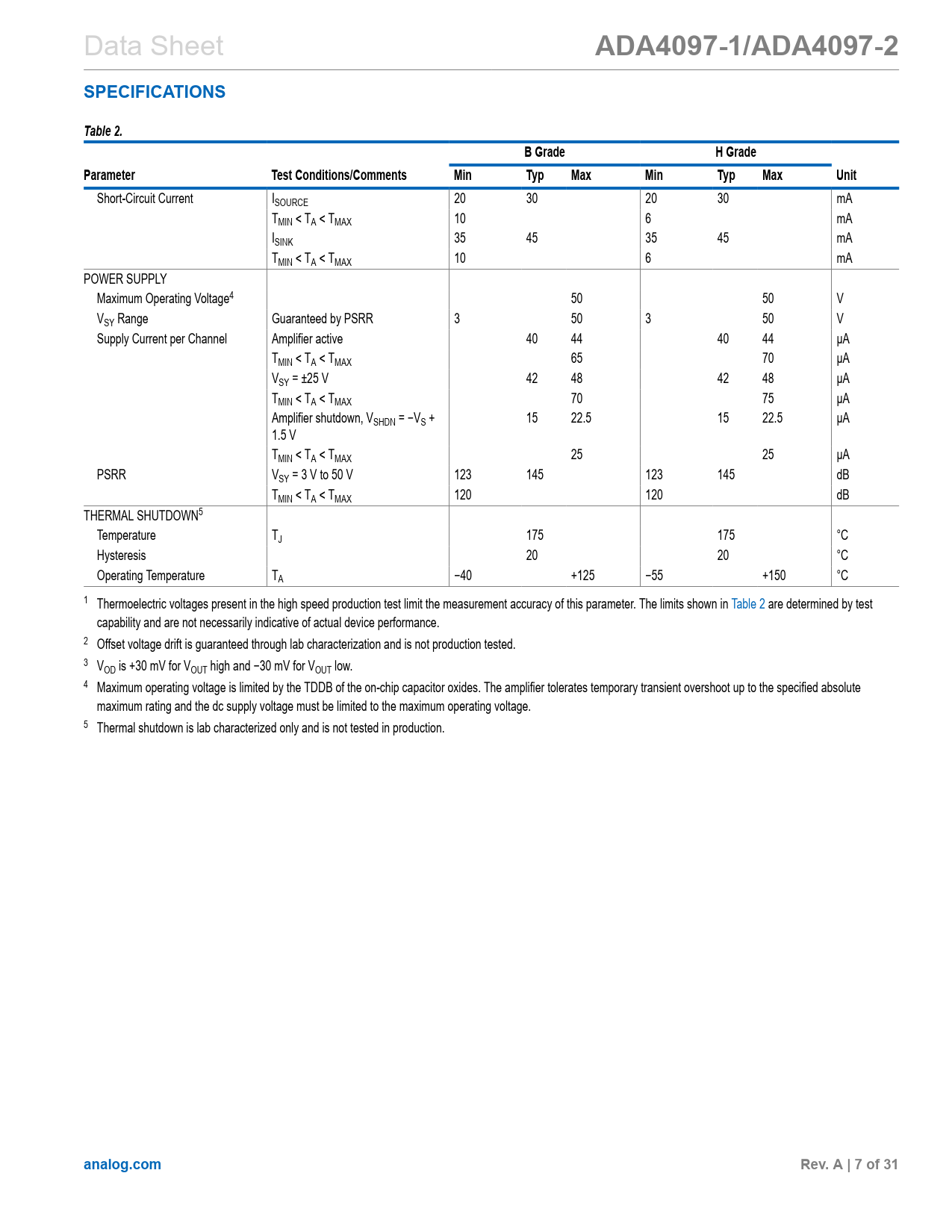

ADA4097-1/ADA4097-2 SPECIFICATIONS Table 2. B Grade H Grade Parameter Test Conditions/Comments Min Typ Max Min Typ Max Unit
Short-Circuit Current ISOURCE 20 30 20 30 mA TMIN < TA < TMAX 10 6 mA ISINK 35 45 35 45 mA TMIN < TA < TMAX 10 6 mA POWER SUPPLY Maximum Operating Voltage4 50 50 V VSY Range Guaranteed by PSRR 3 50 3 50 V Supply Current per Channel Amplifier active 40 44 40 44 µA TMIN < TA < TMAX 65 70 µA VSY = ±25 V 42 48 42 48 µA TMIN < TA < TMAX 70 75 µA Amplifier shutdown, VSHDN = −VS + 15 22.5 15 22.5 µA 1.5 V TMIN < TA < TMAX 25 25 µA PSRR VSY = 3 V to 50 V 123 145 123 145 dB TMIN < TA < TMAX 120 120 dB THERMAL SHUTDOWN5 Temperature TJ 175 175 °C Hysteresis 20 20 °C Operating Temperature TA −40 +125 −55 +150 °C 1 Thermoelectric voltages present in the high speed production test limit the measurement accuracy of this parameter. The limits shown in Table 2 are determined by test capability and are not necessarily indicative of actual device performance. 2 Offset voltage drift is guaranteed through lab characterization and is not production tested. 3 VOD is +30 mV for VOUT high and −30 mV for VOUT low. 4 Maximum operating voltage is limited by the TDDB of the on-chip capacitor oxides. The amplifier tolerates temporary transient overshoot up to the specified absolute maximum rating and the dc supply voltage must be limited to the maximum operating voltage. 5 Thermal shutdown is lab characterized only and is not tested in production.
analog.com Rev. A | 7 of 31
