Datasheet ADA4097-1, ADA4097-2 (Analog Devices) - 9
| Manufacturer | Analog Devices |
| Description | 50 V, 130 kHz, 32.5 µA per Channel, Robust, Over-The-Top, Precision Op Amps |
| Pages / Page | 31 / 9 — ADA4097-1/ADA4097-2. ABSOLUTE MAXIMUM RATINGS. ESD Ratings for … |
| File Format / Size | PDF / 1.8 Mb |
| Document Language | English |
ADA4097-1/ADA4097-2. ABSOLUTE MAXIMUM RATINGS. ESD Ratings for ADA4097-1/ADA4097-2
Model Line for this Datasheet
Text Version of Document
Data Sheet

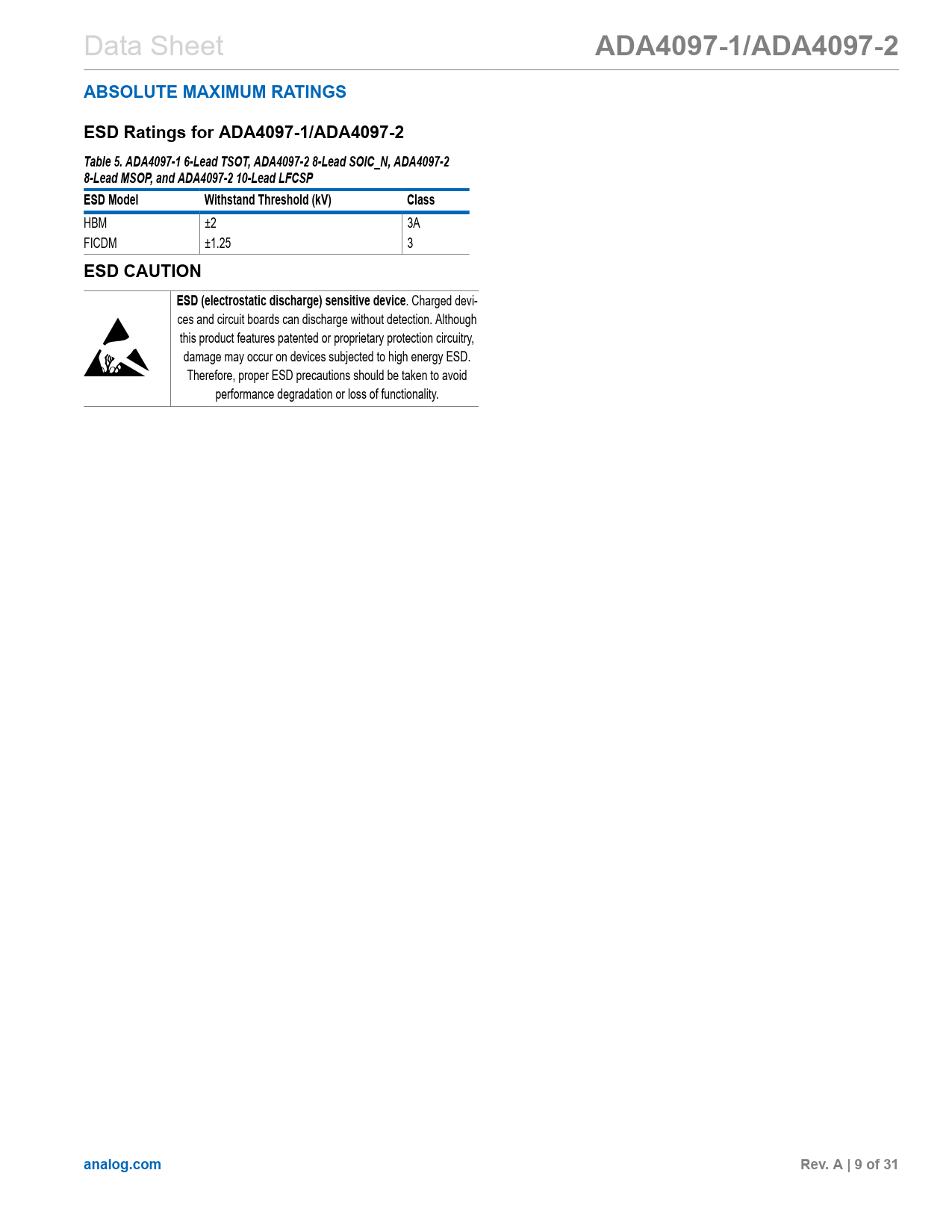

ADA4097-1/ADA4097-2 ABSOLUTE MAXIMUM RATINGS ESD Ratings for ADA4097-1/ADA4097-2 Table 5. ADA4097-1 6-Lead TSOT, ADA4097-2 8-Lead SOIC_N, ADA4097-2 8-Lead MSOP, and ADA4097-2 10-Lead LFCSP ESD Model Withstand Threshold (kV) Class
HBM ±2 3A FICDM ±1.25 3
ESD CAUTION ESD (electrostatic discharge) sensitive device
. Charged devi- ces and circuit boards can discharge without detection. Although this product features patented or proprietary protection circuitry, damage may occur on devices subjected to high energy ESD. Therefore, proper ESD precautions should be taken to avoid performance degradation or loss of functionality.
analog.com Rev. A | 9 of 31
