Datasheet MM3Z2V4T1 (ON Semiconductor) - 4
| Manufacturer | ON Semiconductor |
| Description | Zener Voltage Regulators 200 mW SOD−323 Surface Mount |
| Pages / Page | 6 / 4 — MM3Z2V4T1 SERIES. TYPICAL CHARACTERISTICS. Figure 1. Effect of Zener … |
| File Format / Size | PDF / 62 Kb |
| Document Language | English |
MM3Z2V4T1 SERIES. TYPICAL CHARACTERISTICS. Figure 1. Effect of Zener Voltage on. Figure 2. Typical Forward Voltage
Model Line for this Datasheet
MM3Z
- MM3Z10VT1 MM3Z11VT1 MM3Z12VT1 MM3Z13VT1 MM3Z15VT1 MM3Z16VT1 MM3Z18VT1 MM3Z20VT1 MM3Z22VT1 MM3Z24VT1 MM3Z27VT1 MM3Z2V4T1 MM3Z2V7T1 MM3Z30VT1 MM3Z33VT1 MM3Z36VT1 MM3Z39VT1 MM3Z3V0T1 MM3Z3V3T1 MM3Z3V6T1 MM3Z3V9T1 MM3Z43VT1 MM3Z47VT1 MM3Z4V3T1 MM3Z4V7T1 MM3Z51VT1 MM3Z56VT1 MM3Z5V1T1 MM3Z5V6T1 MM3Z62VT1 MM3Z68VT1 MM3Z6V2T1 MM3Z6V8T1 MM3Z75VT1 MM3Z7V5T1 MM3Z8V2T1 MM3Z9V1T1
Text Version of Document

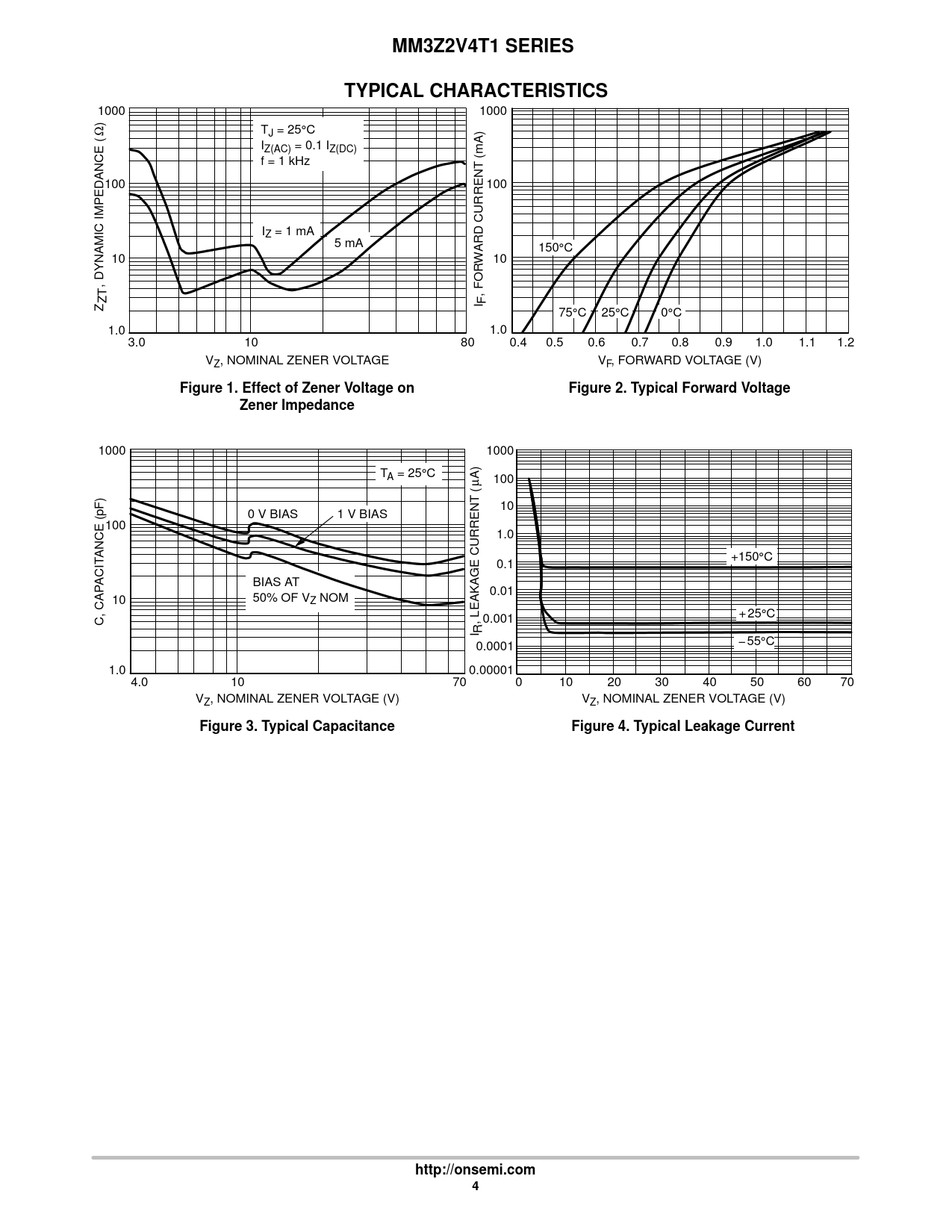

MM3Z2V4T1 SERIES TYPICAL CHARACTERISTICS
1000 1000 ) Ω TJ = 25°C IZ(AC) = 0.1 IZ(DC) f = 1 kHz (mA) 100 100 IZ = 1 mA 5 mA ARD CURRENT 150°C 10 W 10 , DYNAMIC IMPEDANCE ( , FOR ZTZ I F 75°C 25°C 0°C 1.0 1.0 3.0 10 80 0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.1 1.2 VZ, NOMINAL ZENER VOLTAGE VF, FORWARD VOLTAGE (V)
Figure 1. Effect of Zener Voltage on Figure 2. Typical Forward Voltage Zener Impedance
1000 1000 ) TA = 25°C A µ 100 ( 10 0 V BIAS 1 V BIAS 100 1.0 ANCE (pF) +150°C 0.1 ACIT BIAS AT 0.01 10 50% OF VZ NOM + 25°C C, CAP , LEAKAGE CURRENT 0.001 I R 0.0001 − 55°C 1.0 0.00001 4.0 10 70 0 10 20 30 40 50 60 70 VZ, NOMINAL ZENER VOLTAGE (V) VZ, NOMINAL ZENER VOLTAGE (V)
Figure 3. Typical Capacitance Figure 4. Typical Leakage Current http://onsemi.com 4
