Datasheet 1N2970B - 1N3015B (Naina Semiconductor)
| Manufacturer | Naina Semiconductor |
| Description | 10W Zener Diodes |
| Pages / Page | 2 / 1 — 1N2970 thru. Naina Semiconductor Ltd. 1N3015. Features. Mechanical … |
| File Format / Size | PDF / 145 Kb |
| Document Language | English |

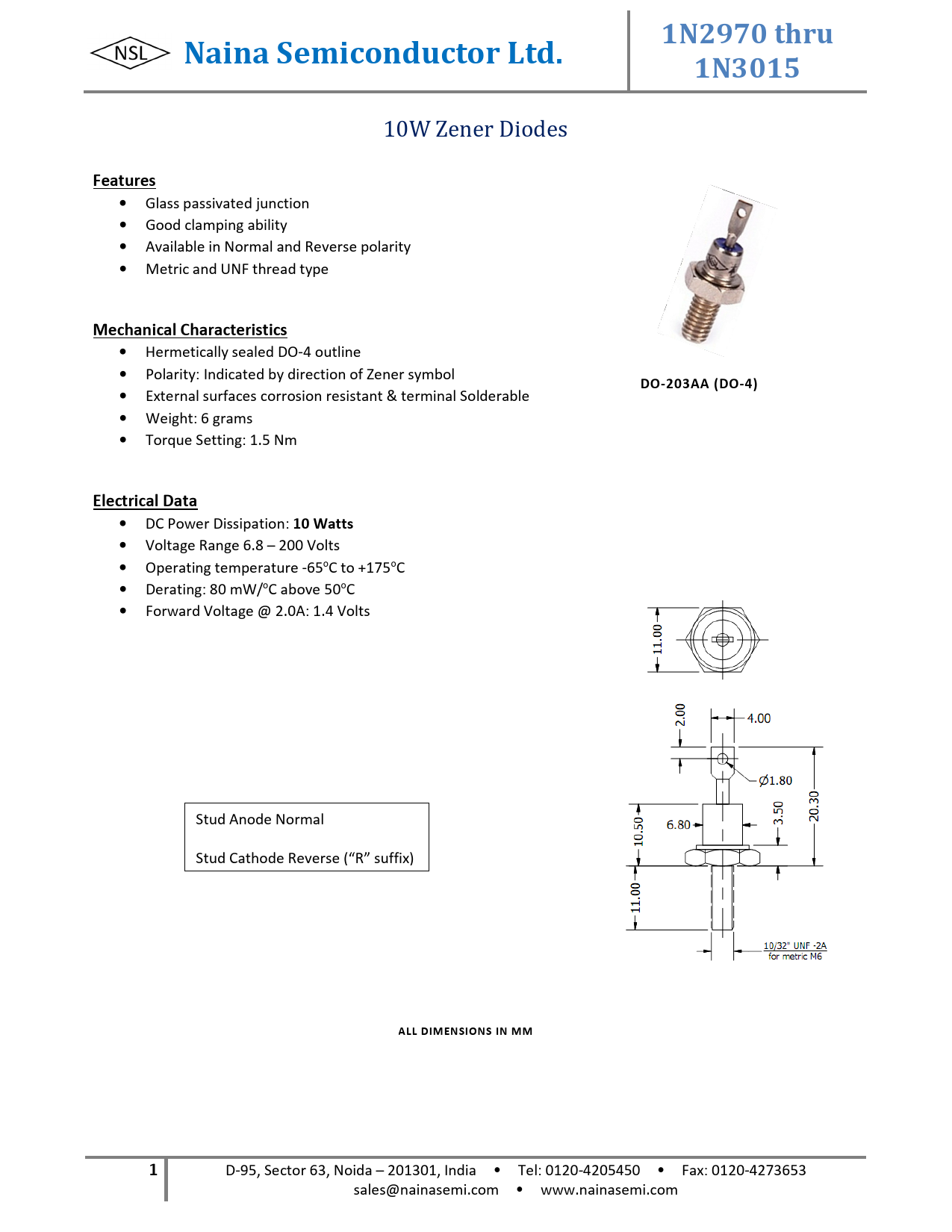

1N2970 thru. Naina Semiconductor Ltd. 1N3015. Features. Mechanical Characteristics. DO-203AA (DO-4). Electrical Data. 10 Watts
Model Line for this Datasheet
Text Version of Document
1N2970 thru Naina Semiconductor Ltd. 1N3015
10W Zener Diodes
Features
• Glass passivated junction • Good clamping ability • Available in Normal and Reverse polarity • Metric and UNF thread type
Mechanical Characteristics
• Hermetically sealed DO-4 outline • Polarity: Indicated by direction of Zener symbol
DO-203AA (DO-4)
• External surfaces corrosion resistant & terminal Solderable • Weight: 6 grams • Torque Setting: 1.5 Nm
Electrical Data
• DC Power Dissipation:
10 Watts
• Voltage Range 6.8 – 200 Volts • Operating temperature -65oC to +175oC • Derating: 80 mW/oC above 50oC • Forward Voltage @ 2.0A: 1.4 Volts Stud Anode Normal Stud Cathode Reverse (“R” suffix)
ALL DIMEN SIONS IN MM 1
