Datasheet BM1Z102FJ, BM1Z103FJ (Rohm)
| Manufacturer | Rohm |
| Description | AC Voltage Zero Cross Detection IC |
| Pages / Page | 23 / 1 — C Voltage Zero Cross Detection IC. BM1Z102FJ BM1Z103FJ. General … |
| File Format / Size | PDF / 1.3 Mb |
| Document Language | English |
C Voltage Zero Cross Detection IC. BM1Z102FJ BM1Z103FJ. General Description. Key Specifications
Model Line for this Datasheet
Text Version of Document
Datasheet

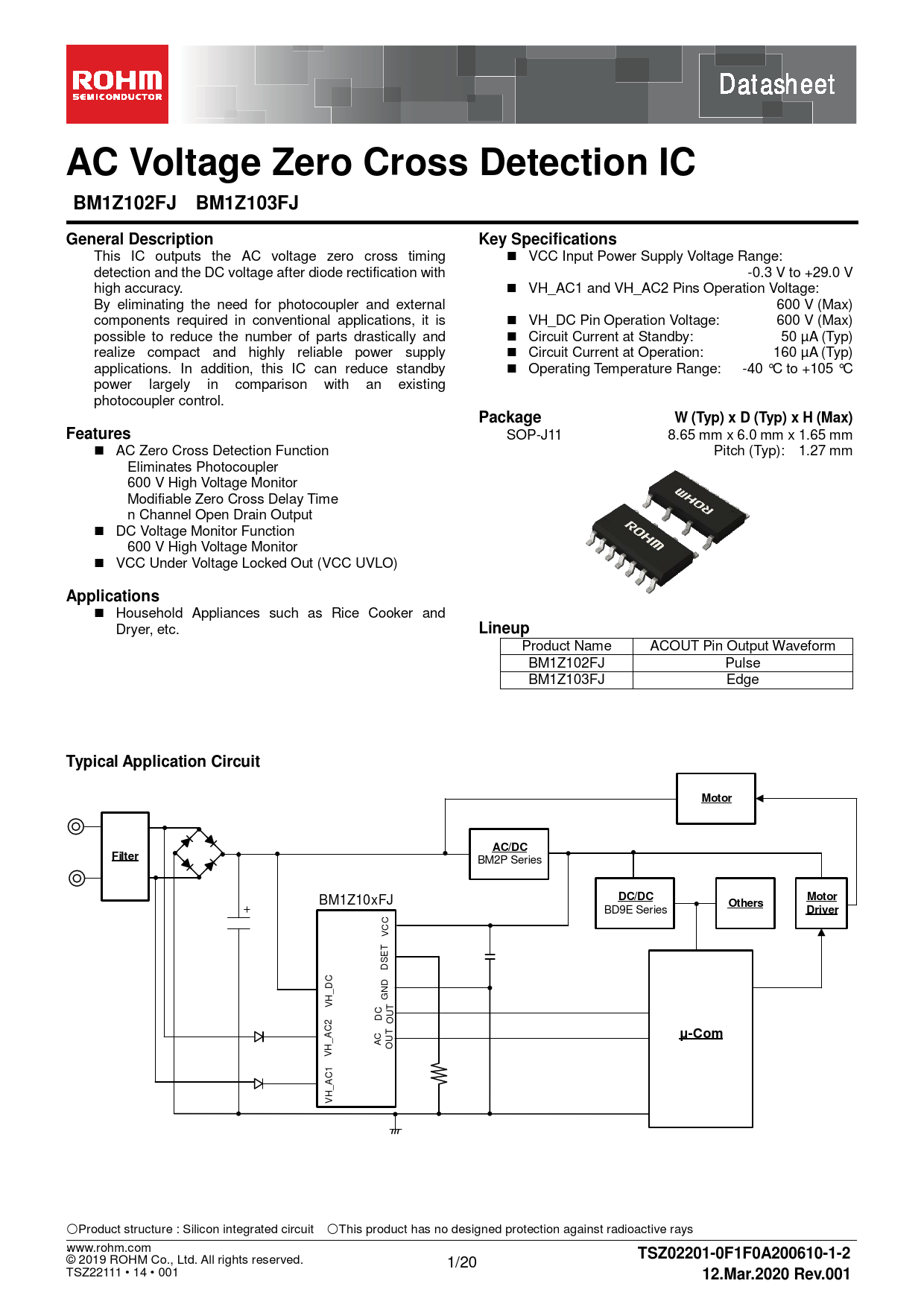

A C Voltage Zero Cross Detection IC BM1Z102FJ BM1Z103FJ General Description Key Specifications
This IC outputs the AC voltage zero cross timing VCC Input Power Supply Voltage Range: detection and the DC voltage after diode rectification with -0.3 V to +29.0 V high accuracy. VH_AC1 and VH_AC2 Pins Operation Voltage: By eliminating the need for photocoupler and external 600 V (Max) components required in conventional applications, it is VH_DC Pin Operation Voltage: 600 V (Max) possible to reduce the number of parts drastically and Circuit Current at Standby: 50 µA (Typ) realize compact and highly reliable power supply Circuit Current at Operation: 160 µA (Typ) applications. In addition, this IC can reduce standby Operating Temperature Range: -40 °C to +105 °C power largely in comparison with an existing photocoupler control.
Package W (Typ) x D (Typ) x H (Max) Features
SOP-J11 8.65 mm x 6.0 mm x 1.65 mm AC Zero Cross Detection Function Pitch (Typ): 1.27 mm Eliminates Photocoupler 600 V High Voltage Monitor Modifiable Zero Cross Delay Time n Channel Open Drain Output DC Voltage Monitor Function 600 V High Voltage Monitor VCC Under Voltage Locked Out (VCC UVLO)
Applications
Household Appliances such as Rice Cooker and Dryer, etc.
Lineup
Product Name ACOUT Pin Output Waveform BM1Z102FJ Pulse BM1Z103FJ Edge
Typical Application Circuit Motor AC/DC Filter
BM2P Series
DC/DC Motor
BM1Z10xFJ
Others
BD9E Series
Driver
C VC SET D D DC _ N G VH T 2 DC OU AC T
μ-Com
_ AC U O VH 1 AC _ VH 〇Product structure : Silicon integrated circuit 〇This product has no designed protection against radioactive rays . www.rohm.com
TSZ02201-0F1F0A200610-1-2
© 2019 ROHM Co., Ltd. All rights reserved. 1/20 TSZ22111 • 14 • 001
12.Mar.2020 Rev.001
