Datasheet BM1Z102FJ, BM1Z103FJ (Rohm) - 2
| Manufacturer | Rohm |
| Description | AC Voltage Zero Cross Detection IC |
| Pages / Page | 23 / 2 — BM1Z102FJ BM1Z103FJ. Pin Configuration. Pin Descriptions. … |
| File Format / Size | PDF / 1.3 Mb |
| Document Language | English |
BM1Z102FJ BM1Z103FJ. Pin Configuration. Pin Descriptions. TSZ02201-0F1F0A200610-1-2. 12.Mar.2020 Rev.00
Model Line for this Datasheet
Text Version of Document

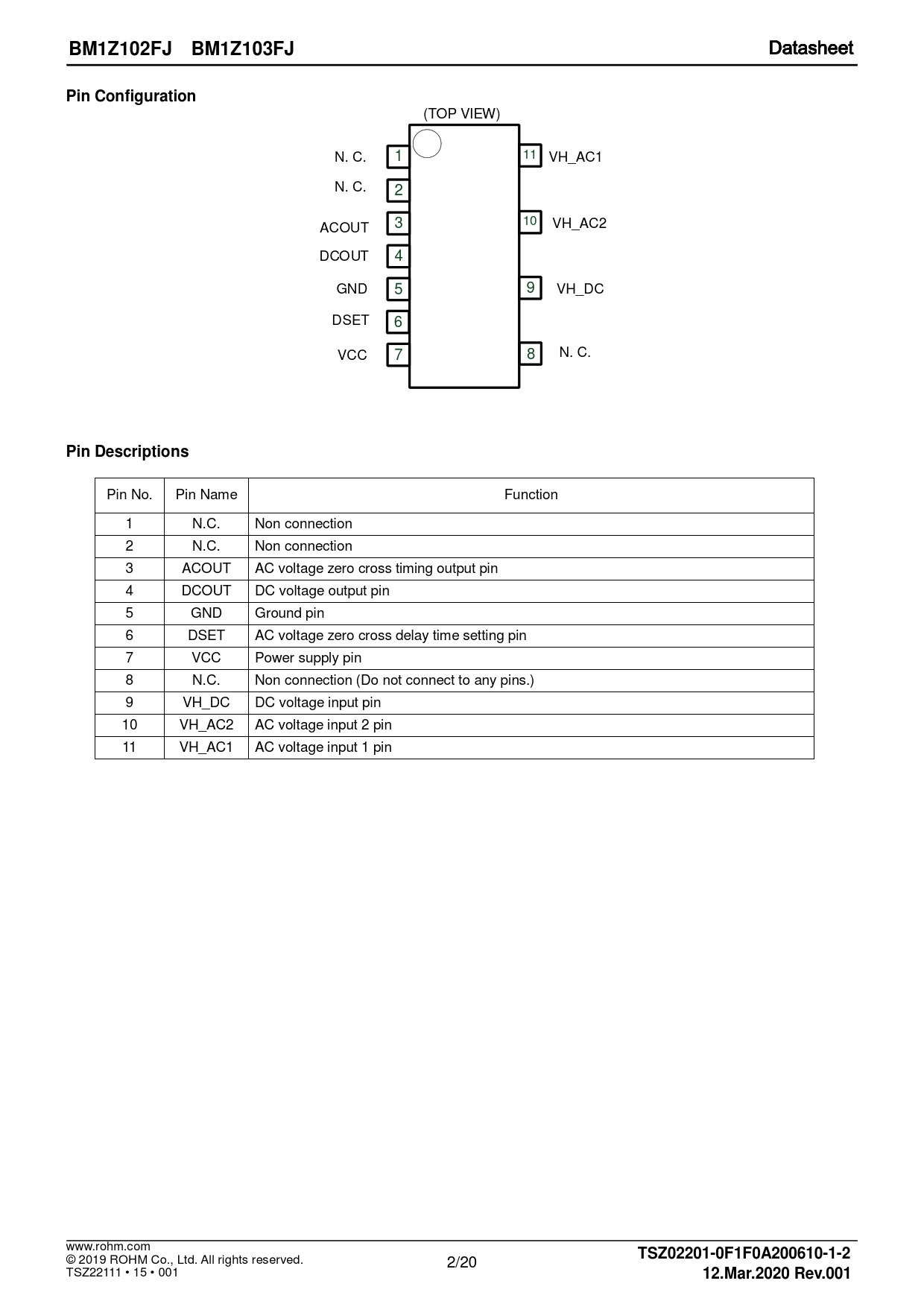

BM1Z102FJ BM1Z103FJ Pin Configuration
(TOP VIEW) N. C. 1 11 VH_AC1 N. C. 2 3 10 ACOUT VH_AC2 DCOUT 4 GND 5 9 VH_DC DSET 6 VCC 7 8 N. C.
Pin Descriptions
Pin No. Pin Name Function 1 N.C. Non connection 2 N.C. Non connection 3 ACOUT AC voltage zero cross timing output pin 4 DCOUT DC voltage output pin 5 GND Ground pin 6 DSET AC voltage zero cross delay time setting pin 7 VCC Power supply pin 8 N.C. Non connection (Do not connect to any pins.) 9 VH_DC DC voltage input pin 10 VH_AC2 AC voltage input 2 pin 11 VH_AC1 AC voltage input 1 pin www.rohm.com
TSZ02201-0F1F0A200610-1-2
© 2019 ROHM Co., Ltd. All rights reserved. 2/20 TSZ22111 • 15 • 001
12.Mar.2020 Rev.00 1
