BM1Z102FJ BM1Z103FJ. Description of Blocks. 1. AC Voltage Zero Cross Detection. TSZ02201-0F1F0A200610-1-2. 12.Mar.2020 Rev.00
Model Line for this Datasheet
Text Version of Document
BM1Z102FJ BM1Z103FJ Description of Blocks 1. AC Voltage Zero Cross Detection

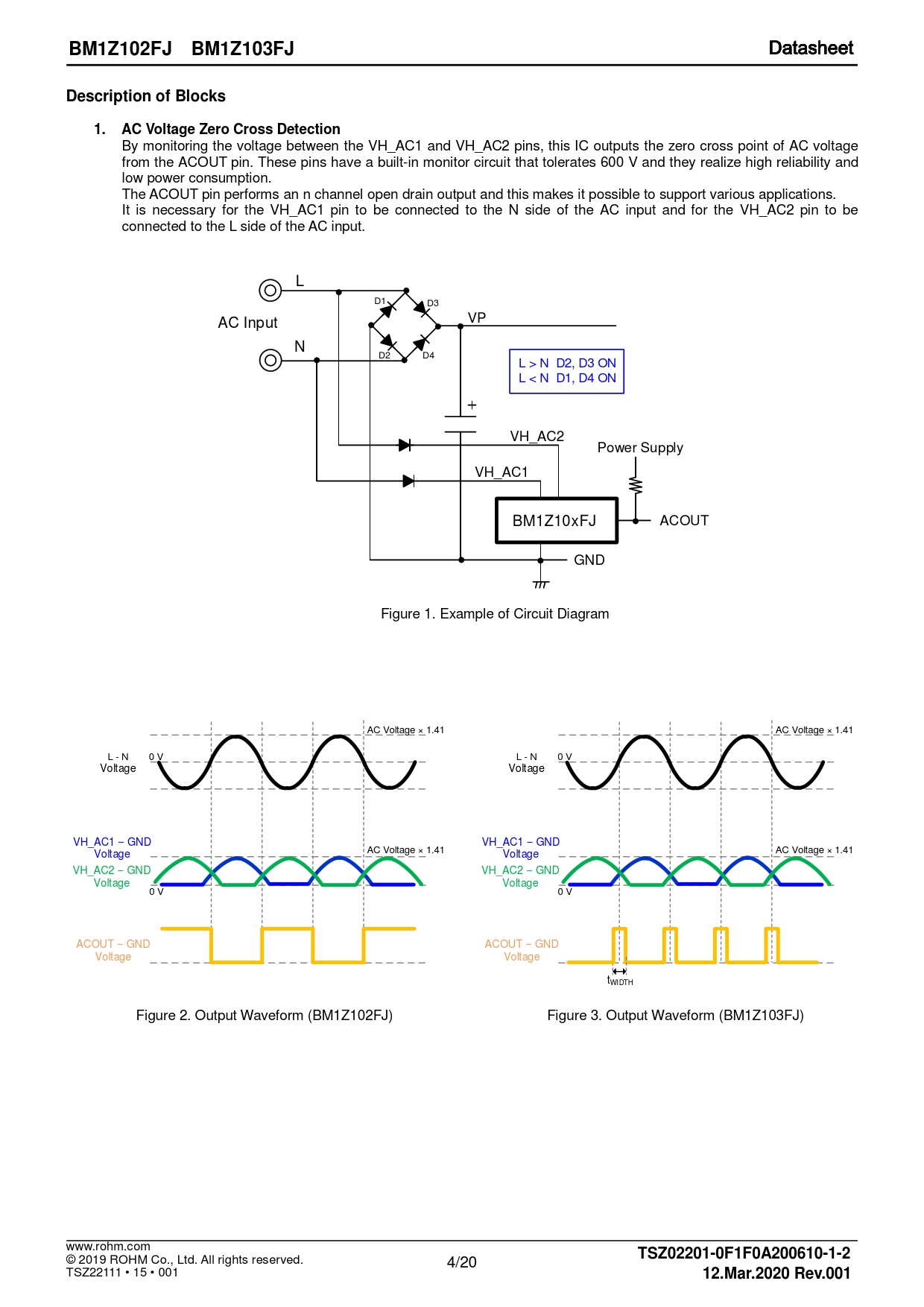

By monitoring the voltage between the VH_AC1 and VH_AC2 pins, this IC outputs the zero cross point of AC voltage from the ACOUT pin. These pins have a built-in monitor circuit that tolerates 600 V and they realize high reliability and low power consumption. The ACOUT pin performs an n channel open drain output and this makes it possible to support various applications. It is necessary for the VH_AC1 pin to be connected to the N side of the AC input and for the VH_AC2 pin to be connected to the L side of the AC input. L D1 D3 AC Input VP N D2 D4 L > N D2, D3 ON L < N D1, D4 ON VH_AC2 Power Supply VH_AC1 BM1Z10xFJ ACOUT GND Figure 1. Example of Circuit Diagram AC Voltage × 1.41 AC Voltage × 1.41 L - N 0 V L - N 0 V Voltage Voltage VH_AC1 – GND VH_AC1 – GND Voltage AC Voltage × 1.41 Voltage AC Voltage × 1.41 VH_AC2 – GND VH_AC2 – GND Voltage Voltage 0 V 0 V ACOUT – GND ACOUT – GND Voltage Voltage tWIDTH Figure 2. Output Waveform (BM1Z102FJ) Figure 3. Output Waveform (BM1Z103FJ) www.rohm.com
