Datasheet MAX9075, MAX9077 (Maxim) - 8
| Manufacturer | Maxim |
| Description | Low-Cost, Ultra-Small, 3µA Single-Supply Comparators |
| Pages / Page | 9 / 8 — MAX9075/MAX9077. Low-Cost, Ultra-Small, 3µA Single-Supply Comparators. … |
| File Format / Size | PDF / 141 Kb |
| Document Language | English |
MAX9075/MAX9077. Low-Cost, Ultra-Small, 3µA Single-Supply Comparators. Package Information. www.maximintegrated.com/packages
Model Line for this Datasheet
Text Version of Document

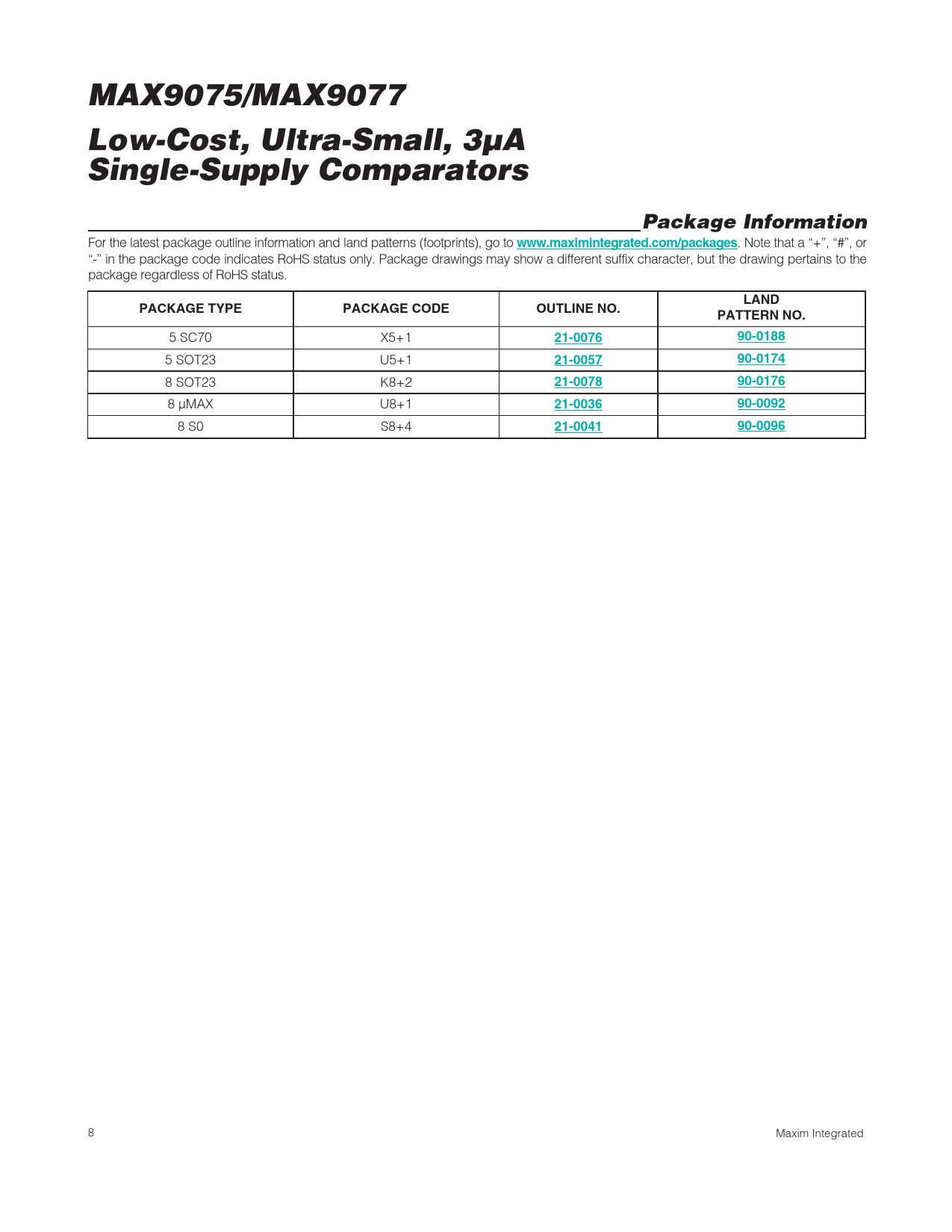

MAX9075/MAX9077 Low-Cost, Ultra-Small, 3µA Single-Supply Comparators Package Information
For the latest package outline information and land patterns (footprints), go to
www.maximintegrated.com/packages
. Note that a “+”, “#”, or “-” in the package code indicates RoHS status only. Package drawings may show a different suffix character, but the drawing pertains to the package regardless of RoHS status.
LAND PACKAGE TYPE PACKAGE CODE OUTLINE NO. PATTERN NO.
5 SC70 X5+1
21-0076 90-0188
5 SOT23 U5+1
21-0057 90-0174
8 SOT23 K8+2
21-0078 90-0176
8 µMAX U8+1
21-0036 90-0092
8 S0 S8+4
21-0041 90-0096
8 Maxim Integrated
For the latest package outline information and land patterns (footprints), go to
www.maximintegrated.com/packages
. Note that a “+”, “#”, or “-” in the package code indicates RoHS status only. Package drawings may show a different suffix character, but the drawing pertains to the package regardless of RoHS status.
LAND PACKAGE TYPE PACKAGE CODE OUTLINE NO. PATTERN NO.
5 SC70 X5+1
21-0076 90-0188
5 SOT23 U5+1
21-0057 90-0174
8 SOT23 K8+2
21-0078 90-0176
8 µMAX U8+1
21-0036 90-0092
8 S0 S8+4
21-0041 90-0096
8 Maxim Integrated
