Si3457CDV
www.vishay.com Vishay Siliconix

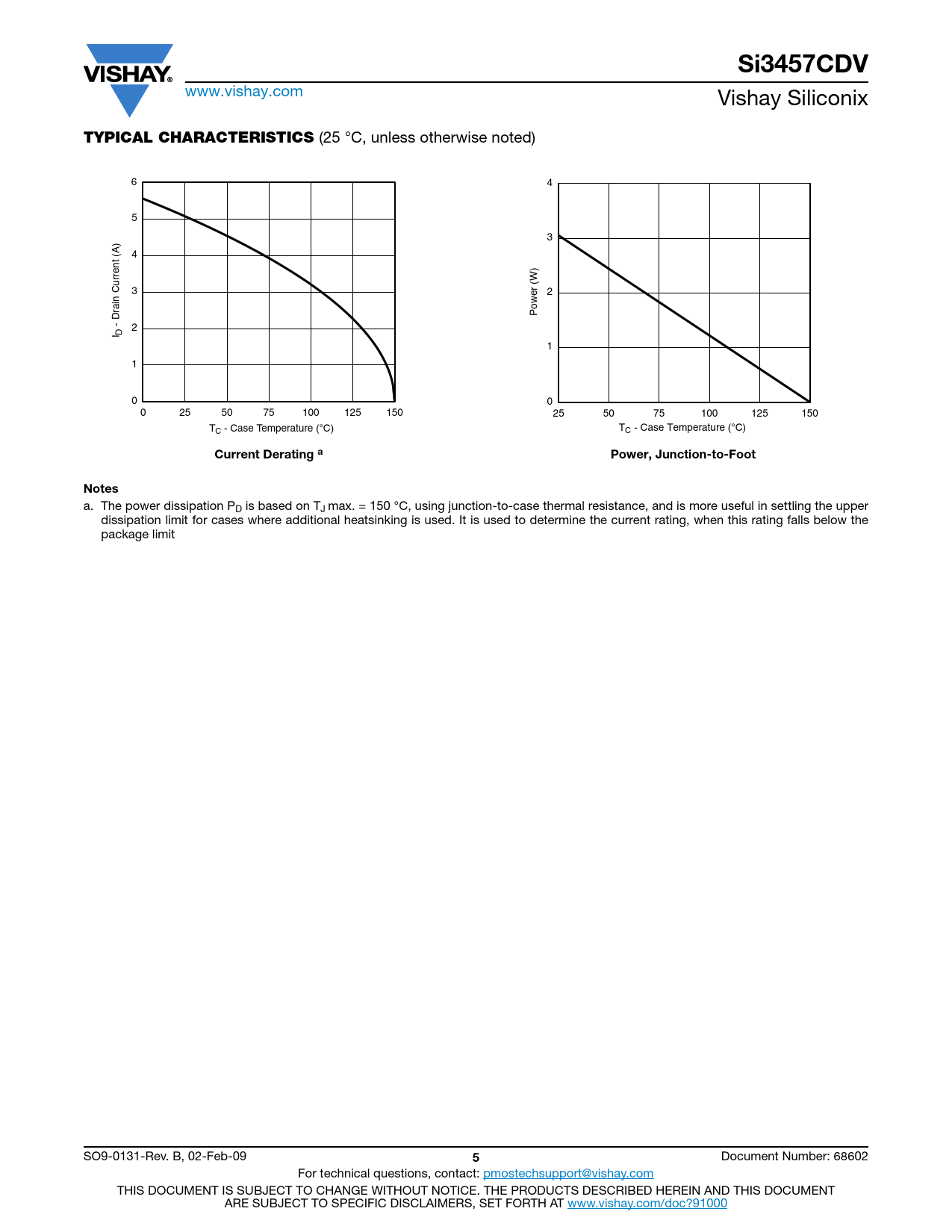

TYPICAL CHARACTERISTICS
(25 °C, unless otherwise noted) 6 4 5 3 4 3 2 Power (W) - Drain Current (A) 2 I D 1 1 0 0 0 25 50 75 100 125 150 25 50 75 100 125 150 TC - Case Temperature (°C) TC - Case Temperature (°C)
Current Derating a Power, Junction-to-Foot Notes
a. The power dissipation PD is based on TJ max. = 150 °C, using junction-to-case thermal resistance, and is more useful in settling the upper dissipation limit for cases where additional heatsinking is used. It is used to determine the current rating, when this rating falls below the package limit SO9-0131-Rev. B, 02-Feb-09
5
Document Number: 68602 For technical questions, contact: pmostechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
www.vishay.com Vishay Siliconix
TYPICAL CHARACTERISTICS
(25 °C, unless otherwise noted) 6 4 5 3 4 3 2 Power (W) - Drain Current (A) 2 I D 1 1 0 0 0 25 50 75 100 125 150 25 50 75 100 125 150 TC - Case Temperature (°C) TC - Case Temperature (°C)
Current Derating a Power, Junction-to-Foot Notes
a. The power dissipation PD is based on TJ max. = 150 °C, using junction-to-case thermal resistance, and is more useful in settling the upper dissipation limit for cases where additional heatsinking is used. It is used to determine the current rating, when this rating falls below the package limit SO9-0131-Rev. B, 02-Feb-09
5
Document Number: 68602 For technical questions, contact: pmostechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
