Datasheet L251 (Citizen) - 2
| Manufacturer | Citizen |
| Description | White Power LED For General Lighting |
| Pages / Page | 9 / 2 — SPECIFICATIONS. 2/9. 3. Outline. drawing. Cathode. Tc. Measurement. … |
| File Format / Size | PDF / 365 Kb |
| Document Language | English |
SPECIFICATIONS. 2/9. 3. Outline. drawing. Cathode. Tc. Measurement. Point. Anode. Anode. ×12. ×12. ×12. Cathode. Tolerances. unless. otherwise. specified. :. ±
Model Line for this Datasheet
Text Version of Document

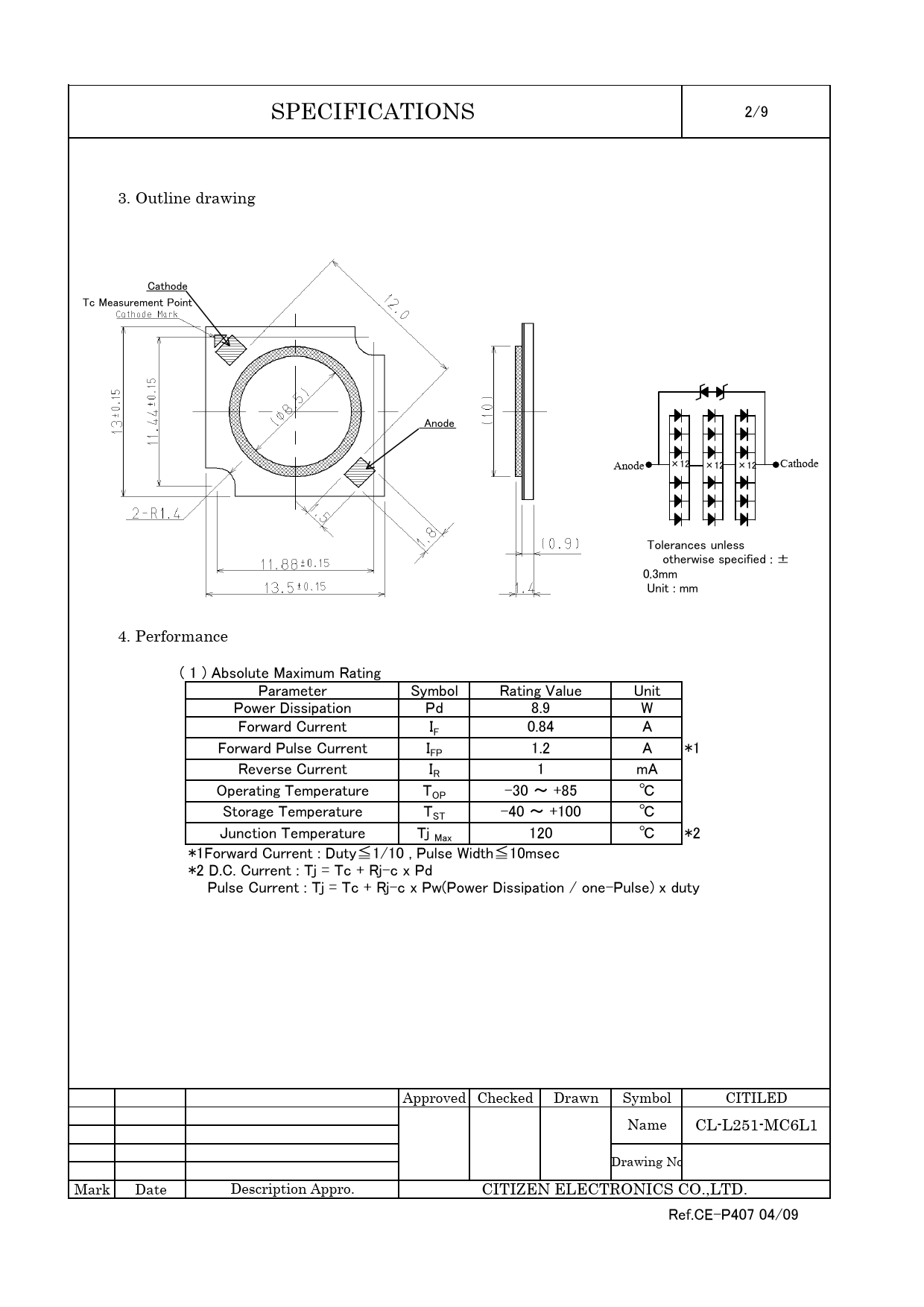

SPECIFICATIONS 2/9 3. Outline drawing Cathode Tc Measurement Point Anode Anode ×12 ×12 ×12 Cathode Tolerances unless otherwise specified : ± 0.3mm Unit : mm 4. Performance ( 1 ) Absolute Maximum Rating Parameter Symbol Rating Value Unit Power Dissipation Pd 8.9 W Forward Current IF 0.84 A Forward Pulse Current IFP 1.2 A *1 Reverse Current IR 1 mA Operating Temperature TOP -30 ～ +85 ℃ Storage Temperature TST -40 ～ +100 ℃ Junction Temperature Tj Max 120 ℃ *2 *1Forward Current : Duty≦1/10 , Pulse Width≦10msec *2 D.C. Current : Tj = Tc + Rj-c x Pd Pulse Current : Tj = Tc + Rj-c x Pw(Power Dissipation / one-Pulse) x duty Approved Checked Drawn Symbol CITILED Name CL-L251-MC6L1 Drawing No Mark Date Description Appro. CITIZEN ELECTRONICS CO.,LTD. Ref.CE-P407 04/09
