Nexperia. 74LVC1G3157. 10 Ohm single-pole double-throw analog switch. 8. Limiting values Table 5. Limiting values
Model Line for this Datasheet
Text Version of Document
link to page 4 link to page 4 link to page 4 link to page 4 link to page 4 link to page 4

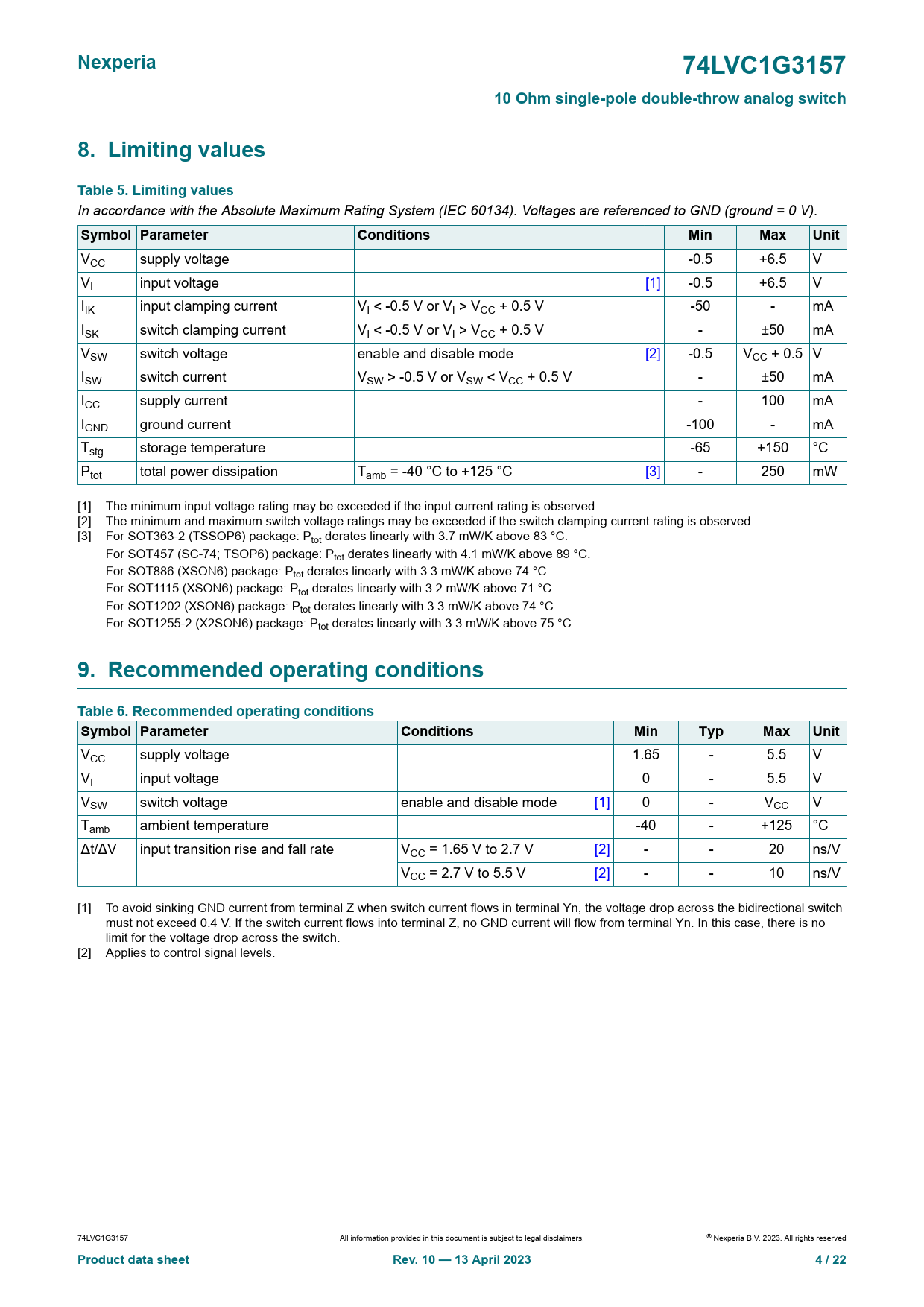

Nexperia 74LVC1G3157 10 Ohm single-pole double-throw analog switch 8. Limiting values Table 5. Limiting values
In accordance with the Absolute Maximum Rating System (IEC 60134). Voltages are referenced to GND (ground = 0 V).
Symbol Parameter Conditions Min Max Unit
VCC supply voltage -0.5 +6.5 V VI input voltage [1] -0.5 +6.5 V IIK input clamping current VI < -0.5 V or VI > VCC + 0.5 V -50 - mA ISK switch clamping current VI < -0.5 V or VI > VCC + 0.5 V - ±50 mA VSW switch voltage enable and disable mode [2] -0.5 VCC + 0.5 V ISW switch current VSW > -0.5 V or VSW < VCC + 0.5 V - ±50 mA ICC supply current - 100 mA IGND ground current -100 - mA Tstg storage temperature -65 +150 °C Ptot total power dissipation Tamb = -40 °C to +125 °C [3] - 250 mW [1] The minimum input voltage rating may be exceeded if the input current rating is observed. [2] The minimum and maximum switch voltage ratings may be exceeded if the switch clamping current rating is observed. [3] For SOT363-2 (TSSOP6) package: Ptot derates linearly with 3.7 mW/K above 83 °C. For SOT457 (SC-74; TSOP6) package: Ptot derates linearly with 4.1 mW/K above 89 °C. For SOT886 (XSON6) package: Ptot derates linearly with 3.3 mW/K above 74 °C. For SOT1115 (XSON6) package: Ptot derates linearly with 3.2 mW/K above 71 °C. For SOT1202 (XSON6) package: Ptot derates linearly with 3.3 mW/K above 74 °C. For SOT1255-2 (X2SON6) package: Ptot derates linearly with 3.3 mW/K above 75 °C.
9. Recommended operating conditions Table 6. Recommended operating conditions Symbol Parameter Conditions Min Typ Max Unit
VCC supply voltage 1.65 - 5.5 V VI input voltage 0 - 5.5 V VSW switch voltage enable and disable mode [1] 0 - VCC V Tamb ambient temperature -40 - +125 °C Δt/ΔV input transition rise and fall rate VCC = 1.65 V to 2.7 V [2] - - 20 ns/V VCC = 2.7 V to 5.5 V [2] - - 10 ns/V [1] To avoid sinking GND current from terminal Z when switch current flows in terminal Yn, the voltage drop across the bidirectional switch must not exceed 0.4 V. If the switch current flows into terminal Z, no GND current wil flow from terminal Yn. In this case, there is no limit for the voltage drop across the switch. [2] Applies to control signal levels. 74LVC1G3157 All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2023. Al rights reserved
Product data sheet Rev. 10 — 13 April 2023 4 / 22
