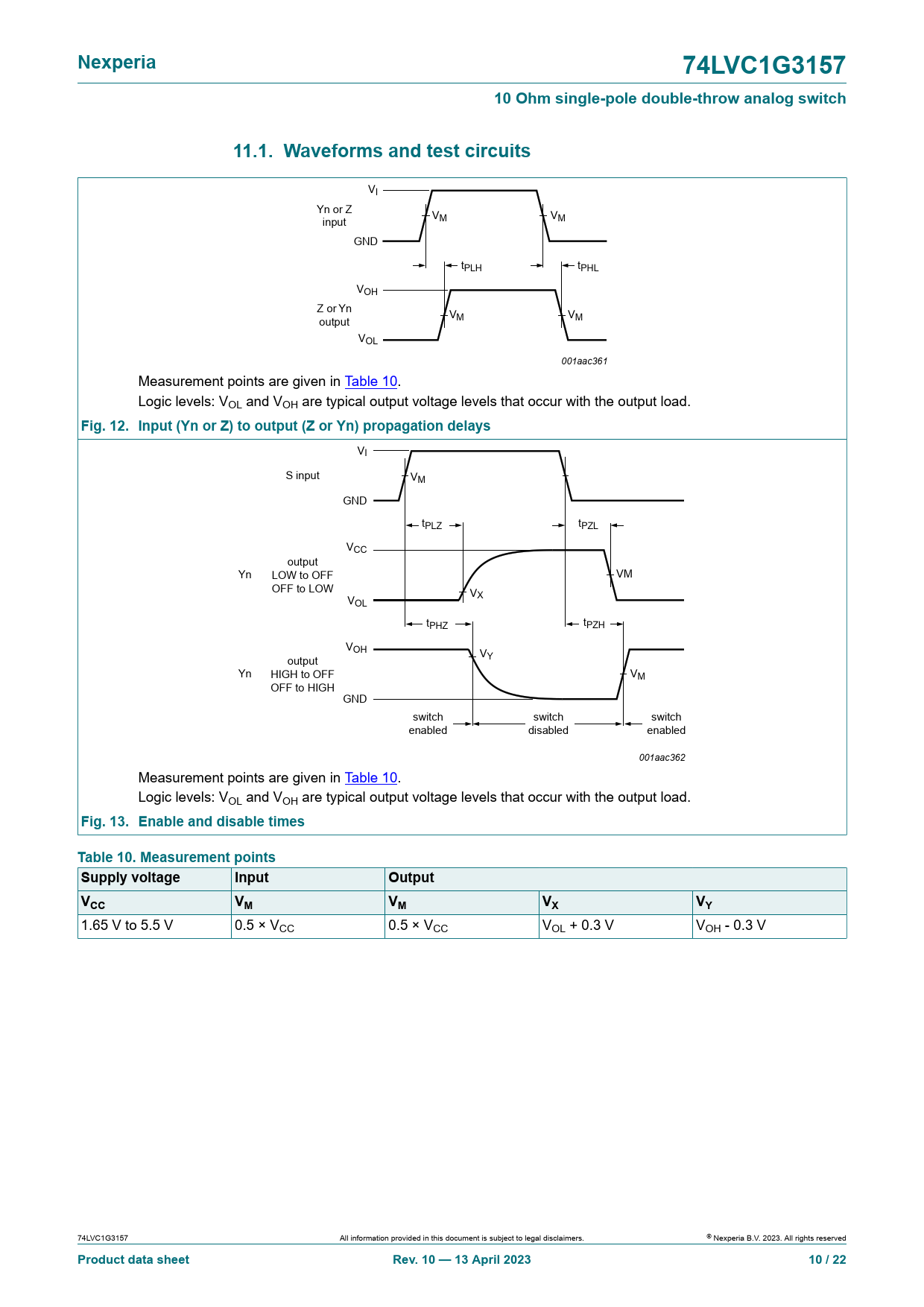

Nexperia 74LVC1G3157 10 Ohm single-pole double-throw analog switch 11.1. Waveforms and test circuits
VI Yn or Z VM VM input GND tPLH tPHL VOH Z or Yn VM VM output VOL 001aac361 Measurement points are given in Table 10. Logic levels: VOL and VOH are typical output voltage levels that occur with the output load.
Fig. 12. Input (Yn or Z) to output (Z or Yn) propagation delays
VI S input VM GND tPLZ tPZL VCC output Yn LOW to OFF VM OFF to LOW V V X OL tPHZ tPZH VOH V output Y Yn HIGH to OFF VM OFF to HIGH GND switch switch switch enabled disabled enabled 001aac362 Measurement points are given in Table 10. Logic levels: VOL and VOH are typical output voltage levels that occur with the output load.
Fig. 13. Enable and disable times Table 10. Measurement points Supply voltage Input Output VCC VM VM VX VY
1.65 V to 5.5 V 0.5 × VCC 0.5 × VCC VOL + 0.3 V VOH - 0.3 V 74LVC1G3157 All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2023. Al rights reserved
Product data sheet Rev. 10 — 13 April 2023 10 / 22
