Datasheet STD4NK50Z-1, STD4NK50ZT4 (STMicroelectronics) - 7
| Manufacturer | STMicroelectronics |
| Description | N-channel 500 V, 2.2 Ω typ., 3 A SuperMESH Power MOSFETs in IPAK and DPAK packages |
| Pages / Page | 23 / 7 — STD4NK50Z-1, STD4NK50ZT4. Test circuits. Figure 13. Test circuit for … |
| File Format / Size | PDF / 585 Kb |
| Document Language | English |
STD4NK50Z-1, STD4NK50ZT4. Test circuits. Figure 13. Test circuit for resistive load switching times
Model Line for this Datasheet
Text Version of Document

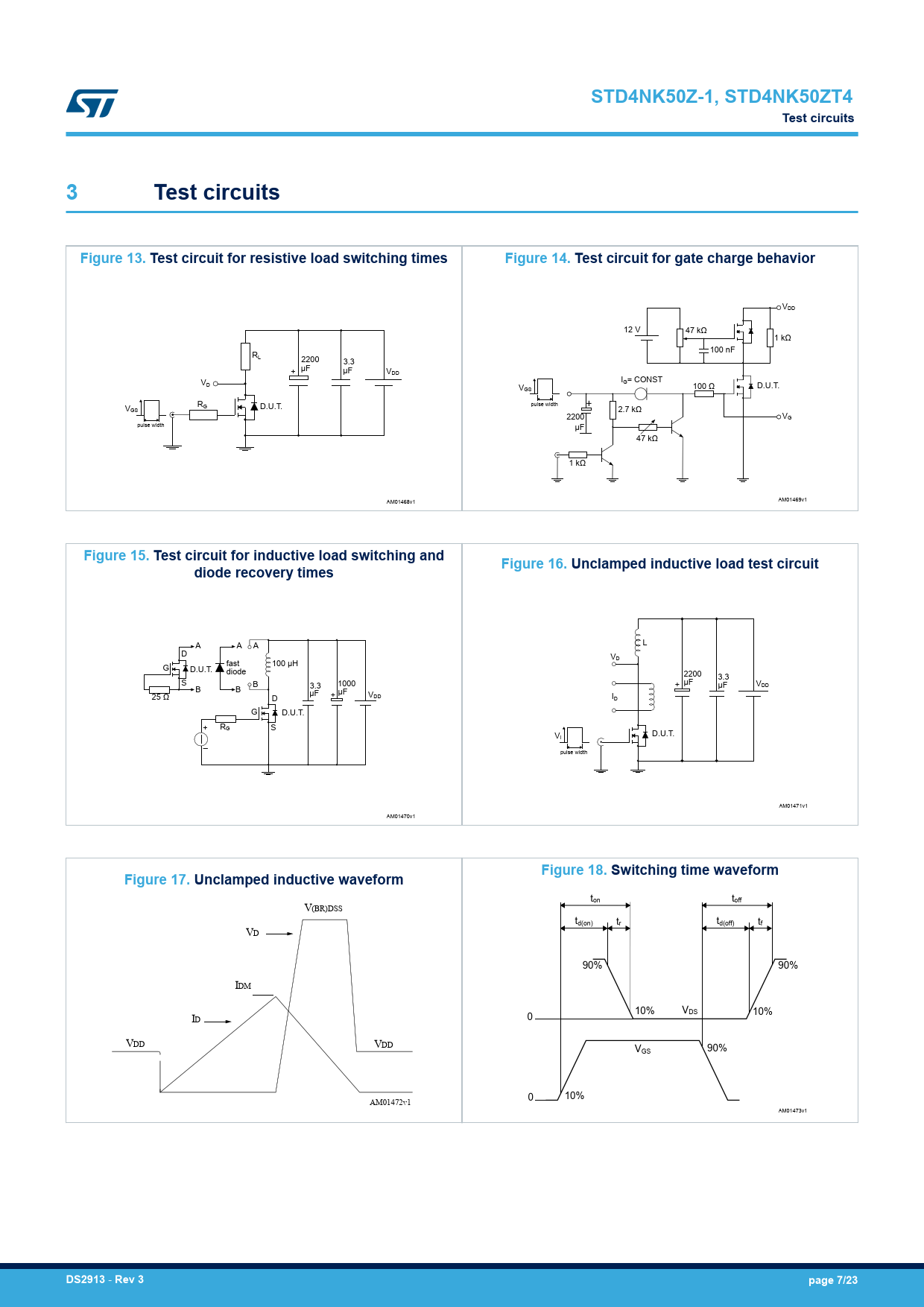

STD4NK50Z-1, STD4NK50ZT4 Test circuits 3 Test circuits Figure 13. Test circuit for resistive load switching times Figure 14. Test circuit for gate charge behavior
VDD 12 V 47 kΩ 1 kΩ 100 nF RL 2200 3.3 μF + μF VDD V I D G= CONST V 100 Ω D.U.T. GS R pulse width + G D.U.T. VGS 2.7 kΩ 2200 VG pulse width μF 47 kΩ 1 kΩ AM01468v1 AM01469v1
Figure 15. Test circuit for inductive load switching and Figure 16. Unclamped inductive load test circuit diode recovery times
A A A L D VD fast 100 µH G D.U.T. diode 2200 3.3 S B + µF µF V B B 3.3 1000 DD µF 25 Ω µF D + VDD ID G D.U.T. + RG S D.U.T. Vi _ pulse width AM01471v1 AM01470v1
Figure 18. Switching time waveform Figure 17. Unclamped inductive waveform
ton toff V(BR)DSS td(on) tr td(off) tf VD 90% 90% IDM 10% VDS 10% ID 0 VDD VDD VGS 90% 0 10% AM01472v1 AM01473v1
DS2913
-
Rev 3 page 7/23
