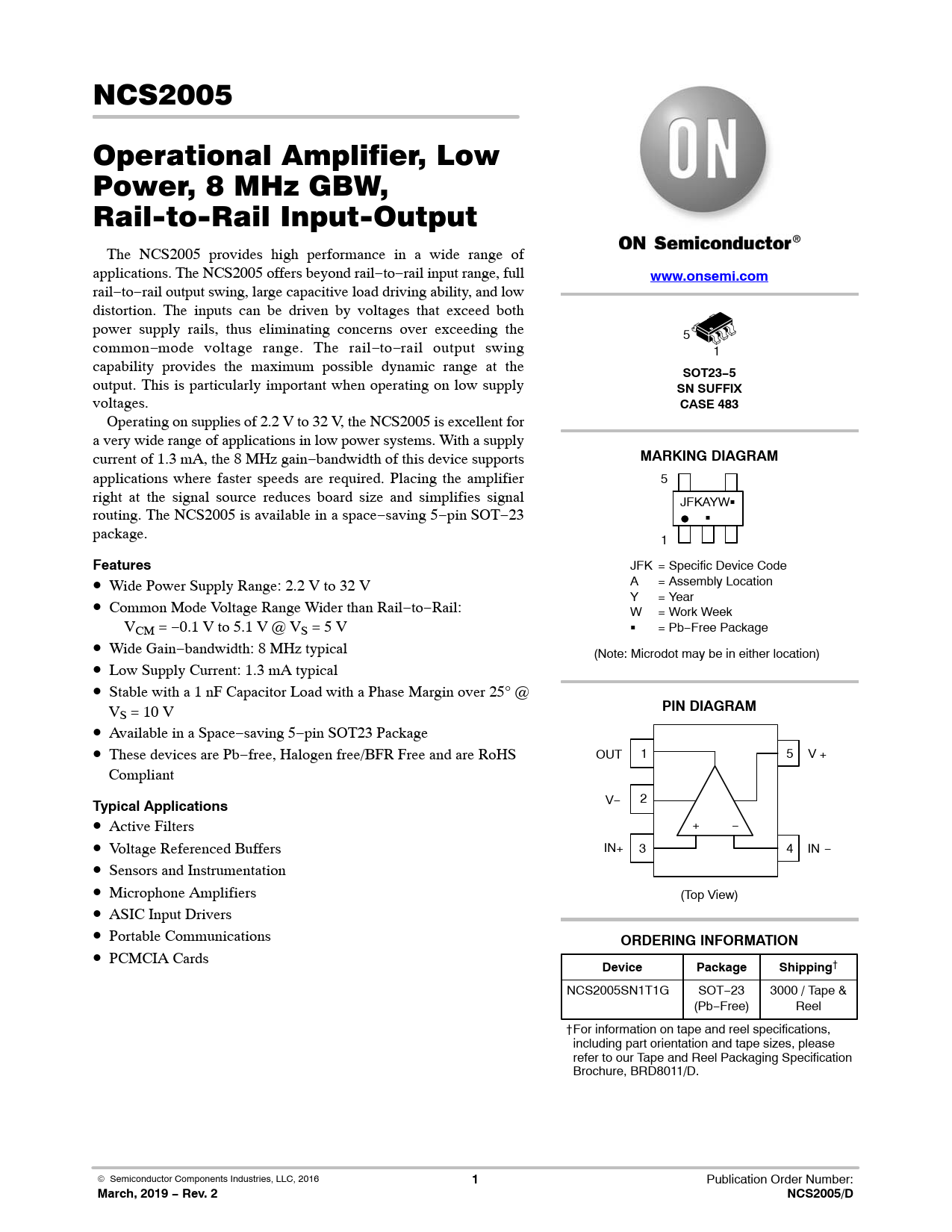

NCS2005 Operational Amplifier, Low Power, 8 MHz GBW, Rail-to-Rail Input-Output The NCS2005 provides high performance in a wide range of applications. The NCS2005 offers beyond rail−to−rail input range, full
www.onsemi.com
rail−to−rail output swing, large capacitive load driving ability, and low distortion. The inputs can be driven by voltages that exceed both power supply rails, thus eliminating concerns over exceeding the 5 common−mode voltage range. The rail−to−rail output swing 1 capability provides the maximum possible dynamic range at the
SOT23−5
output. This is particularly important when operating on low supply
SN SUFFIX
voltages.
CASE 483
Operating on supplies of 2.2 V to 32 V, the NCS2005 is excellent for a very wide range of applications in low power systems. With a supply current of 1.3 mA, the 8 MHz gain−bandwidth of this device supports
MARKING DIAGRAM
applications where faster speeds are required. Placing the amplifier 5 right at the signal source reduces board size and simplifies signal JFKAYWG routing. The NCS2005 is available in a space−saving 5−pin SOT−23 G package. 1
Features
JFK = Specific Device Code • Wide Power Supply Range: 2.2 V to 32 V A = Assembly Location • Y = Year Common Mode Voltage Range Wider than Rail−to−Rail: W = Work Week VCM = −0.1 V to 5.1 V @ VS = 5 V G = Pb−Free Package • Wide Gain−bandwidth: 8 MHz typical (Note: Microdot may be in either location) • Low Supply Current: 1.3 mA typical • Stable with a 1 nF Capacitor Load with a Phase Margin over 25° @ V
PIN DIAGRAM
S = 10 V • Available in a Space−saving 5−pin SOT23 Package • These devices are Pb−free, Halogen free/BFR Free and are RoHS OUT 1 5 V + Compliant
Typical Applications
V− 2 • Active Filters + − • Voltage Referenced Buffers IN+ 3 4 IN − • Sensors and Instrumentation • Microphone Amplifiers (Top View) • ASIC Input Drivers • Portable Communications
ORDERING INFORMATION
• PCMCIA Cards
Device Package Shipping
† NCS2005SN1T1G SOT−23 3000 / Tape & (Pb−Free) Reel †For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specification Brochure, BRD8011/D. © Semiconductor Components Industries, LLC, 2016
1
Publication Order Number:
March, 2019 − Rev. 2 NCS2005/D
