Datasheet J104D (CIT Relay & Switch)
| Manufacturer | CIT Relay & Switch |
| Description | UL Approved Relay |
| Pages / Page | 2 / 1 — J104D. Features. Contact Data*. Coil Data*. General Data* |
| File Format / Size | PDF / 320 Kb |
| Document Language | English |
J104D. Features. Contact Data*. Coil Data*. General Data*
Model Line for this Datasheet
- J104D2C12VDC.15S J104D2C12VDC.20S J104D2C12VDC.36S J104D2C12VDC.45S J104D2C24VDC.15S J104D2C24VDC.20S J104D2C24VDC.36S J104D2C24VDC.45S J104D2C3VDC.15S J104D2C3VDC.20S J104D2C3VDC.36S J104D2C3VDC.45S J104D2C48VDC.20S J104D2C48VDC.36S J104D2C48VDC.45S J104D2C5VDC.15S J104D2C5VDC.20S J104D2C5VDC.36S J104D2C5VDC.45S J104D2C6VDC.15S J104D2C6VDC.20S J104D2C6VDC.36S J104D2C6VDC.45S J104D2C9VDC.15S J104D2C9VDC.20S J104D2C9VDC.36S J104D2C9VDC.45S
Text Version of Document

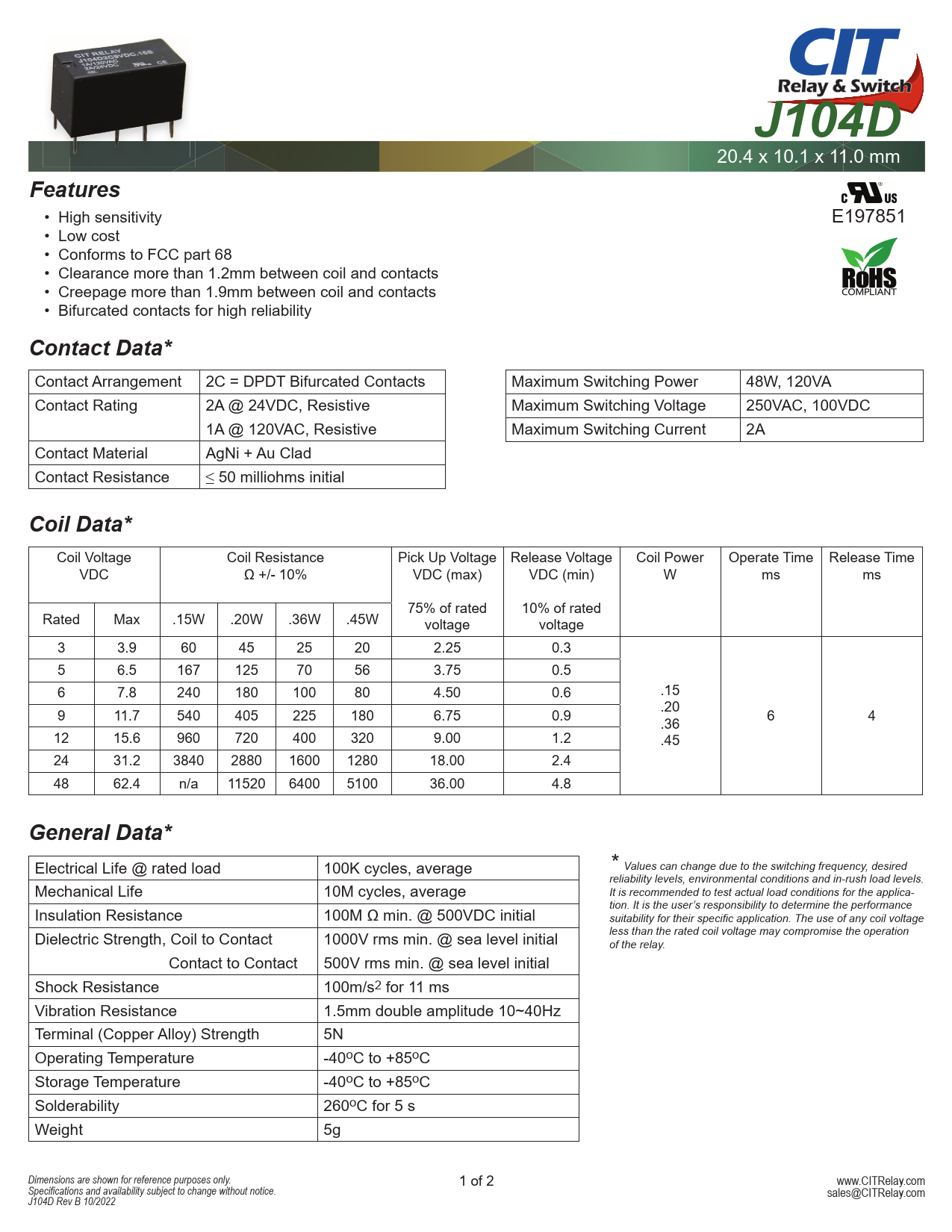

J104D
20.4 x 10.1 x 11.0 mm
Features
• High sensitivity E197851 • Low cost • Conforms to FCC part 68 • Clearance more than 1.2mm between coil and contacts • Creepage more than 1.9mm between coil and contacts • Bifurcated contacts for high reliability
Contact Data*
Contact Arrangement 2C = DPDT Bifurcated Contacts Maximum Switching Power 48W, 120VA Contact Rating 2A @ 24VDC, Resistive Maximum Switching Voltage 250VAC, 100VDC 1A @ 120VAC, Resistive Maximum Switching Current 2A Contact Material AgNi + Au Clad Contact Resistance ≤ 50 milliohms initial
Coil Data*
Coil Voltage Coil Resistance Pick Up Voltage Release Voltage Coil Power Operate Time Release Time VDC Ω +/- 10% VDC (max) VDC (min) W ms ms 75% of rated 10% of rated Rated Max .15W .20W .36W .45W voltage voltage 3 3.9 60 45 25 20 2.25 0.3 5 6.5 167 125 70 56 3.75 0.5 6 7.8 240 180 100 80 4.50 0.6 .15 .20 9 11.7 540 405 225 180 6.75 0.9 6 4 .36 12 15.6 960 720 400 320 9.00 1.2 .45 24 31.2 3840 2880 1600 1280 18.00 2.4 48 62.4 n/a 11520 6400 5100 36.00 4.8
General Data*
Electrical Life @ rated load 100K cycles, average * Values can change due to the switching frequency, desired reliability levels, environmental conditions and in-rush load levels. Mechanical Life 10M cycles, average It is recommended to test actual load conditions for the applica- tion. It is the user’s responsibility to determine the performance Insulation Resistance 100M Ω min. @ 500VDC initial suitability for their specifi c application. The use of any coil voltage Dielectric Strength, Coil to Contact 1000V rms min. @ sea level initial less than the rated coil voltage may compromise the operation of the relay. Contact to Contact 500V rms min. @ sea level initial Shock Resistance 100m/s2 for 11 ms Vibration Resistance 1.5mm double amplitude 10~40Hz Terminal (Copper Alloy) Strength 5N Operating Temperature -40oC to +85oC Storage Temperature -40oC to +85oC Solderability 260oC for 5 s Weight 5g Dimensions are shown for reference purposes only. 1 of 2 www.CITRelay.com Specifi cations and availability subject to change without notice. sales@CITRelay.com J104D Rev B 10/2022
