Datasheet HT7727FA, HT7730FA, HT7733FA, HT7737FA, HT7750FA (Holtek) - 3
| Manufacturer | Holtek |
| Description | TinyPower TM 200mA Synchronous Step-up Converter |
| Pages / Page | 26 / 3 — HT77xxFA. Absolute Maximum Ratings. Parameter. Value. Unit. Recommended … |
| File Format / Size | PDF / 9.0 Mb |
| Document Language | English |

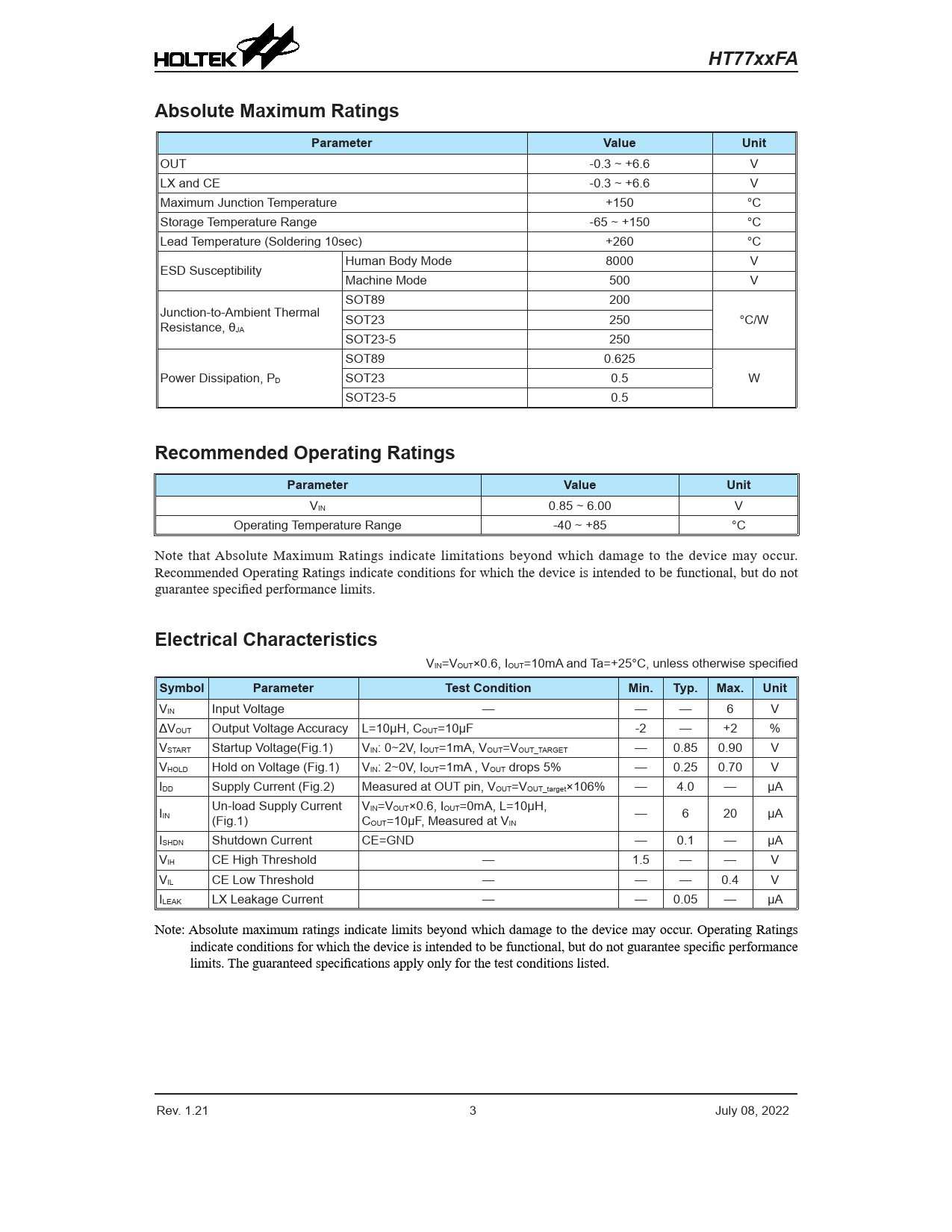

HT77xxFA. Absolute Maximum Ratings. Parameter. Value. Unit. Recommended Operating Ratings. Electrical Characteristics. Symbol
Model Line for this Datasheet
Text Version of Document
HT77xxFA Absolute Maximum Ratings Parameter Value Unit
OUT -0.3 ~ +6.6 V LX and CE -0.3 ~ +6.6 V Maximum Junction Temperature +150 °C Storage Temperature Range -65 ~ +150 °C Lead Temperature (Soldering 10sec) +260 °C Human Body Mode 8000 V ESD Susceptibility Machine Mode 500 V SOT89 200 Junction-to-Ambient Thermal Resistance, θ SOT23 250 °C/W JA SOT23-5 250 SOT89 0.625 Power Dissipation, PD SOT23 0.5 W SOT23-5 0.5
Recommended Operating Ratings Parameter Value Unit
VIN 0.85 ~ 6.00 V Operating Temperature Range -40 ~ +85 °C Note that Absolute Maximum Ratings indicate limitations beyond which damage to the device may occur. Recommended Operating Ratings indicate conditions for which the device is intended to be functional, but do not guarantee specified performance limits.
Electrical Characteristics
VIN=VOUT×0.6, IOUT=10mA and Ta=+25°C, unless otherwise specified
Symbol Parameter Test Condition Min. Typ. Max. Unit
VIN Input Voltage — — — 6 V ΔVOUT Output Voltage Accuracy L=10μH, COUT=10μF -2 — +2 % VSTART Startup Voltage(Fig.1) VIN: 0~2V, IOUT=1mA, VOUT=VOUT_TARGET — 0.85 0.90 V VHOLD Hold on Voltage (Fig.1) VIN: 2~0V, IOUT=1mA , VOUT drops 5% — 0.25 0.70 V IDD Supply Current (Fig.2) Measured at OUT pin, VOUT=VOUT_target×106% — 4.0 — μA I VIN=VOUT×0.6, IOUT=0mA, L=10μH, IN Un-load Supply Current (Fig.1) COUT=10μF, Measured at VIN — 6 20 μA ISHDN Shutdown Current CE=GND — 0.1 — μA VIH CE High Threshold — 1.5 — — V VIL CE Low Threshold — — — 0.4 V ILEAK LX Leakage Current — — 0.05 — μA Note: Absolute maximum ratings indicate limits beyond which damage to the device may occur. Operating Ratings indicate conditions for which the device is intended to be functional, but do not guarantee specific performance limits. The guaranteed specifications apply only for the test conditions listed. Rev. 1.21 3 July 08, 2022 Document Outline Features Applications General Description Selection Table Typical Application Circuits Block Diagram Pin Assignment Pin Description Absolute Maximum Ratings Recommended Operating Ratings Electrical Characteristics Typical Performance Characteristics Functional Description Low Voltage Start-up Shutdown Power on Component Selection Power Inductor Input Capacitor Output Capacitor PCB Layout Suggestion Thermal Consideration Application Circuits Without CE Pin Application Circuit With CE Pin Application Circuit VIN Quick On/Off Power Supply with Low Load Ability Package Information 3-pin SOT23 Outline Dimensions 3-pin SOT89 Outline Dimensions 5-pin SOT23 Outline Dimensions
