BCR401R. Pin Configuration. Typical Application. Type. Marking. Package. Maximum Ratings. Parameter. Symbol. Value. Unit. Thermal Resistance
Model Line for this Datasheet
Text Version of Document

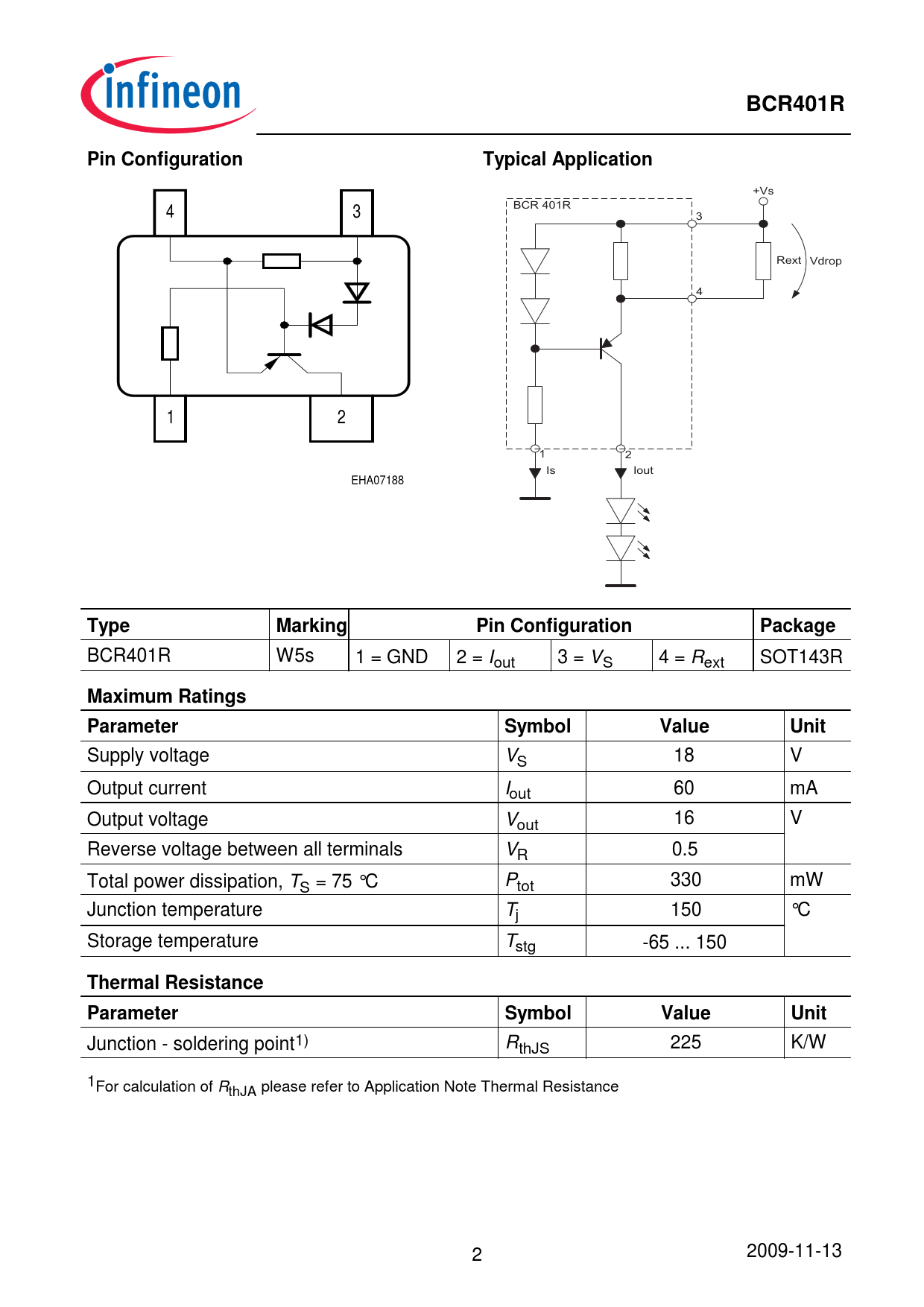

BCR401R Pin Configuration Typical Application
+ V s B C R 4 0 1 R 4 3 3 R e x t V d r o p 4 1 2 1 2 I s I o u t EHA07188
Type Marking Pin Configuration Package
BCR401R W5s 1 = GND 2 = Iout 3 = VS 4 = Rext SOT143R
Maximum Ratings Parameter Symbol Value Unit
Supply voltage VS 18 V Output current Iout 60 mA Output voltage Vout 16 V Reverse voltage between all terminals VR 0.5 Total power dissipation, TS = 75 °C Ptot 330 mW Junction temperature Tj 150 °C Storage temperature Tstg -65 ... 150
Thermal Resistance Parameter Symbol Value Unit
Junction - soldering point1) RthJS 225 K/W 1For calculation of RthJA please refer to Application Note Thermal Resistance 2009-11-13 2
