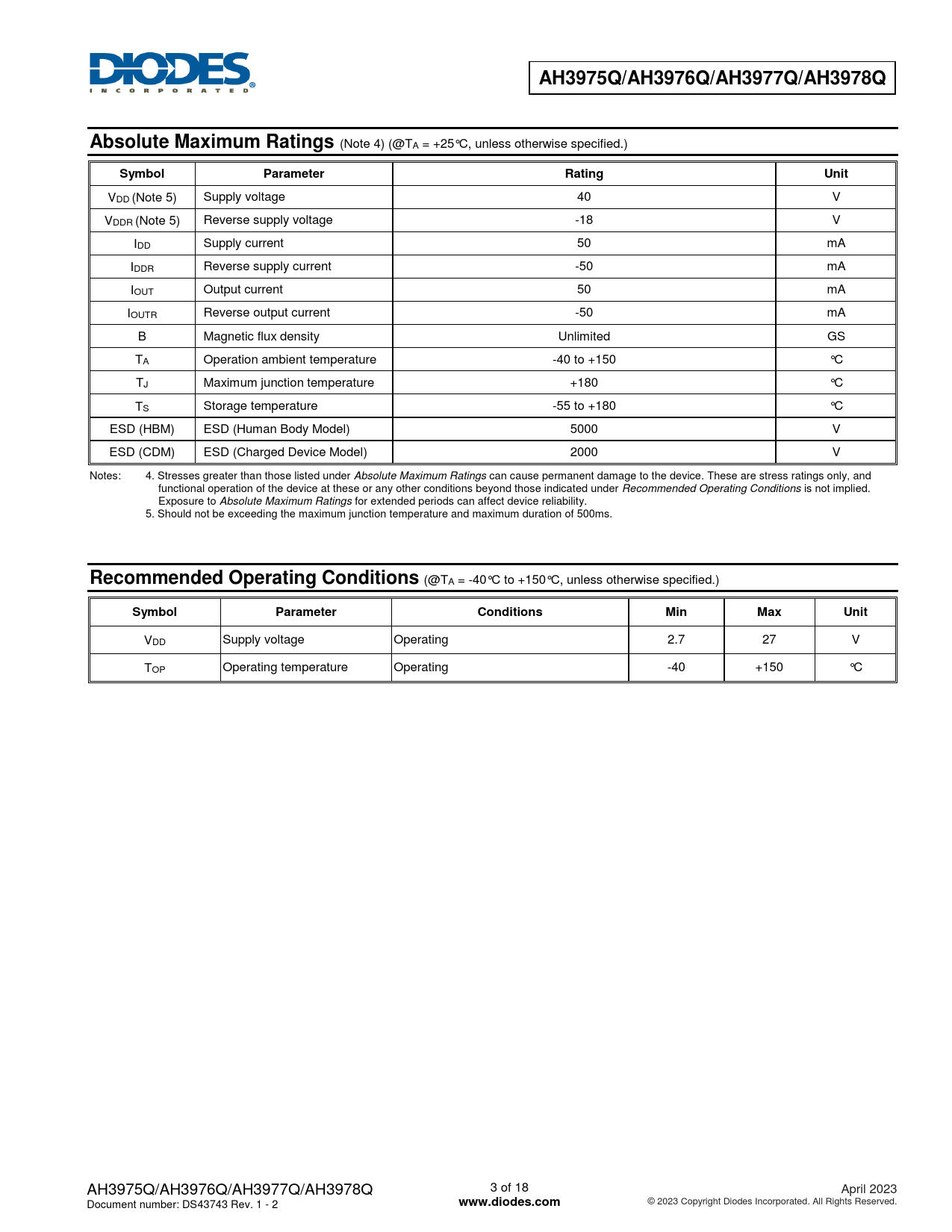

AH3975Q/AH3976Q/AH3977Q/AH3978Q Absolute Maximum Ratings
(Note 4) (@TA = +25°C, unless otherwise specified.)
Symbol Parameter Rating Unit
VDD (Note 5) Supply voltage 40 V VDDR (Note 5) Reverse supply voltage -18 V IDD Supply current 50 mA IDDR Reverse supply current -50 mA IOUT Output current 50 mA IOUTR Reverse output current -50 mA B Magnetic flux density Unlimited GS TA Operation ambient temperature -40 to +150 °C TJ Maximum junction temperature +180 °C TS Storage temperature -55 to +180 °C ESD (HBM) ESD (Human Body Model) 5000 V ESD (CDM) ESD (Charged Device Model) 2000 V Notes: 4. Stresses greater than those listed under Absolute Maximum Ratings can cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions is not implied. Exposure to Absolute Maximum Ratings for extended periods can affect device reliability. 5. Should not be exceeding the maximum junction temperature and maximum duration of 500ms.
Recommended Operating Conditions
(@TA = -40°C to +150°C, unless otherwise specified.)
Symbol Parameter Conditions Min Max Unit
VDD Supply voltage Operating 2.7 27 V TOP Operating temperature Operating -40 +150 °C AH3975Q/AH3976Q/AH3977Q/AH3978Q 3 of 18 April 2023 Document number: DS43743 Rev. 1 - 2
