Datasheet TL072, TL072A, TL072B (STMicroelectronics) - 9
| Manufacturer | STMicroelectronics |
| Description | Low Noise JFET Dual Operational Amplifiers |
| Pages / Page | 16 / 9 — TL072, TL072A, TL072B. Electrical characteristics |
| File Format / Size | PDF / 515 Kb |
| Document Language | English |
TL072, TL072A, TL072B. Electrical characteristics
Model Line for this Datasheet
Text Version of Document
TL072, TL072A, TL072B Electrical characteristics

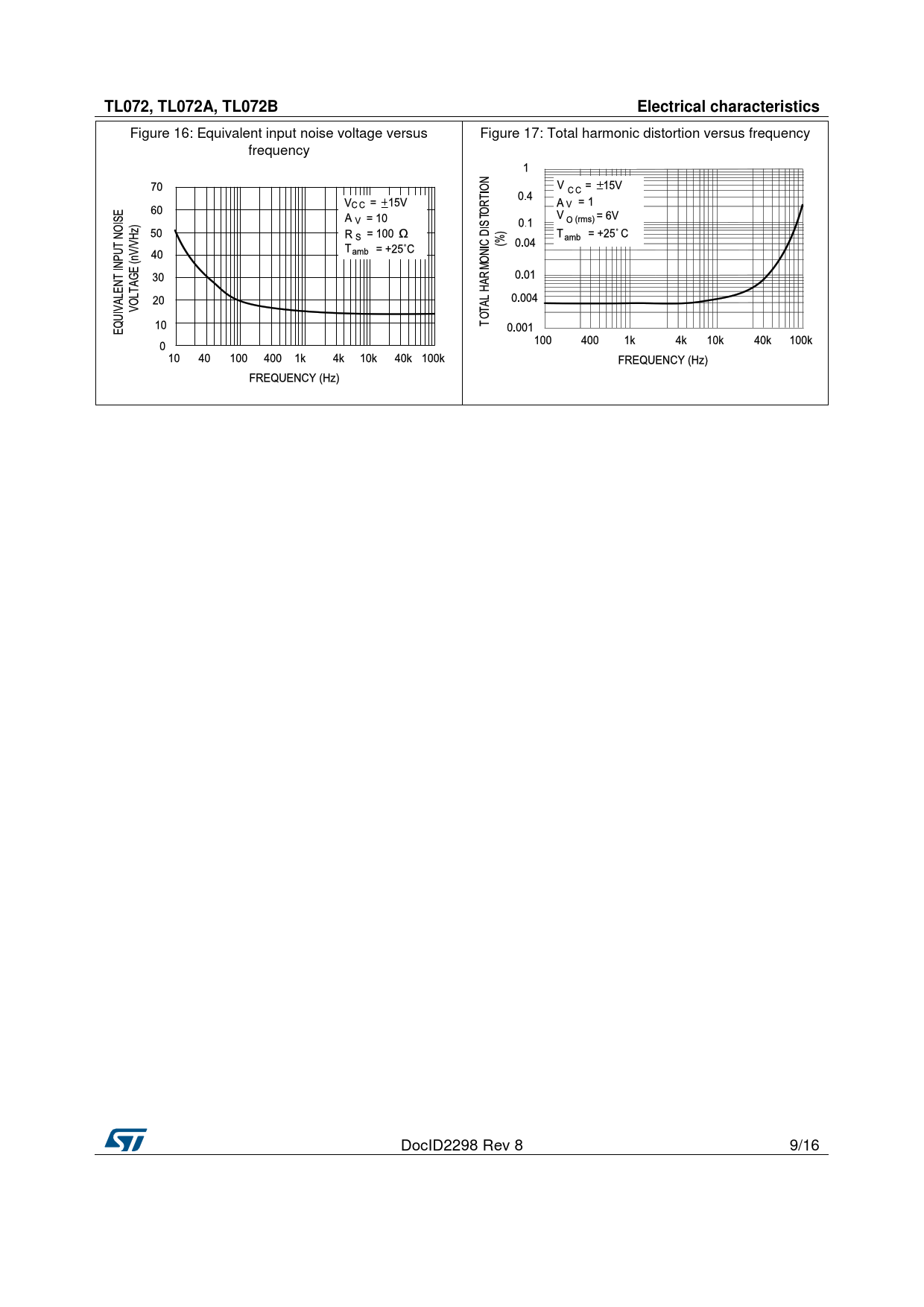

Figure 16: Equivalent input noise voltage versus Figure 17: Total harmonic distortion versus frequency frequency DocID2298 Rev 8 9/16 Document Outline 1 Schematic diagram 2 Absolute maximum ratings and operating conditions 3 Electrical characteristics 4 Parameter measurement information 5 Typical application 6 Package information 6.1 SO8 package information 7 Ordering information 8 Revision history
