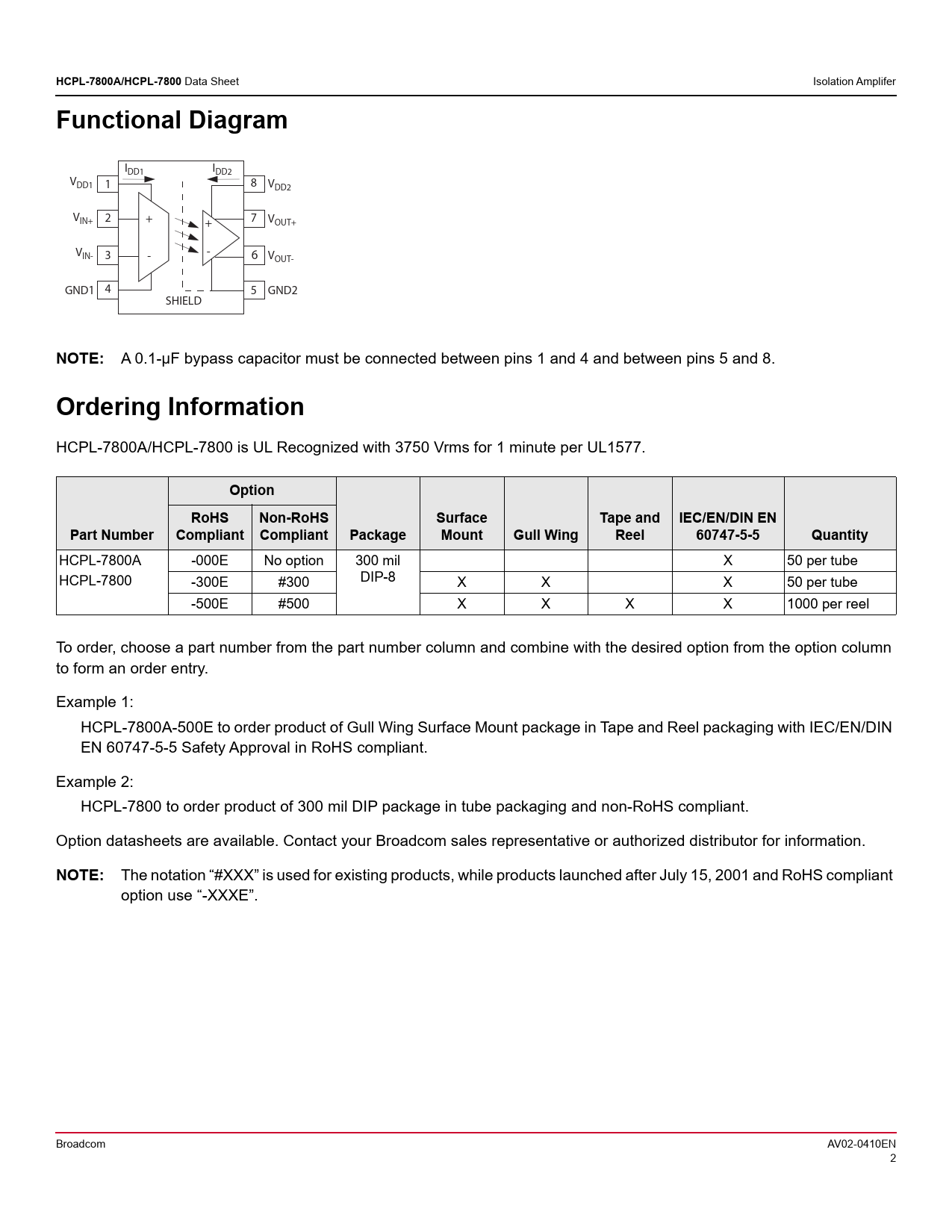

HCPL-7800A/HCPL-7800 Data Sheet Isolation Amplifer Functional Diagram IDD1 IDD2 VDD1 1 8 VDD2 VIN+ 2 + 7 V + OUT+ VIN- 3 - - 6 VOUT- GND1 4 5 GND2 SHIELD NOTE: A 0.1-µF bypass capacitor must be connected between pins 1 and 4 and between pins 5 and 8. Ordering Information HCPL-7800A/HCPL-7800 is UL Recognized with 3750 Vrms for 1 minute per UL1577. OptionRoHSNon-RoHSSurfaceTape and IEC/EN/DIN ENPart NumberCompliantCompliantPackageMountGull WingReel60747-5-5Quantity HCPL-7800A -000E No option 300 mil X 50 per tube HCPL-7800 DIP-8 -300E #300 X X X 50 per tube -500E #500 X X X X 1000 per reel To order, choose a part number from the part number column and combine with the desired option from the option column to form an order entry. Example 1: HCPL-7800A-500E to order product of Gull Wing Surface Mount package in Tape and Reel packaging with IEC/EN/DIN EN 60747-5-5 Safety Approval in RoHS compliant. Example 2: HCPL-7800 to order product of 300 mil DIP package in tube packaging and non-RoHS compliant. Option datasheets are available. Contact your Broadcom sales representative or authorized distributor for information. NOTE: The notation “#XXX” is used for existing products, while products launched after July 15, 2001 and RoHS compliant option use “-XXXE”. Broadcom AV02-0410EN 2 Document Outline Description Features Applications Functional Diagram Ordering Information Package Outline Drawings Standard DIP Package Gull Wing Surface Mount Option 300 Solder Reflow Profile Regulatory Information IEC/EN/DIN EN 60747-5-5 Insulation Characteristics Insulation and Safety-Related Specifications Absolute Maximum Ratings Recommended Operating Conditions DC Electrical Specifications AC Electrical Specifications Package Characteristics Application Information Power Supplies and Bypassing PC Board Layout Current Sensing Resistors Sense Resistor Connections Output Side Frequently Asked Questions about the HCPL-7800(A) Basics Sense Resistor and Input Filter Isolation and Insulation Accuracy Power Supplies and Start-Up Miscellaneous
