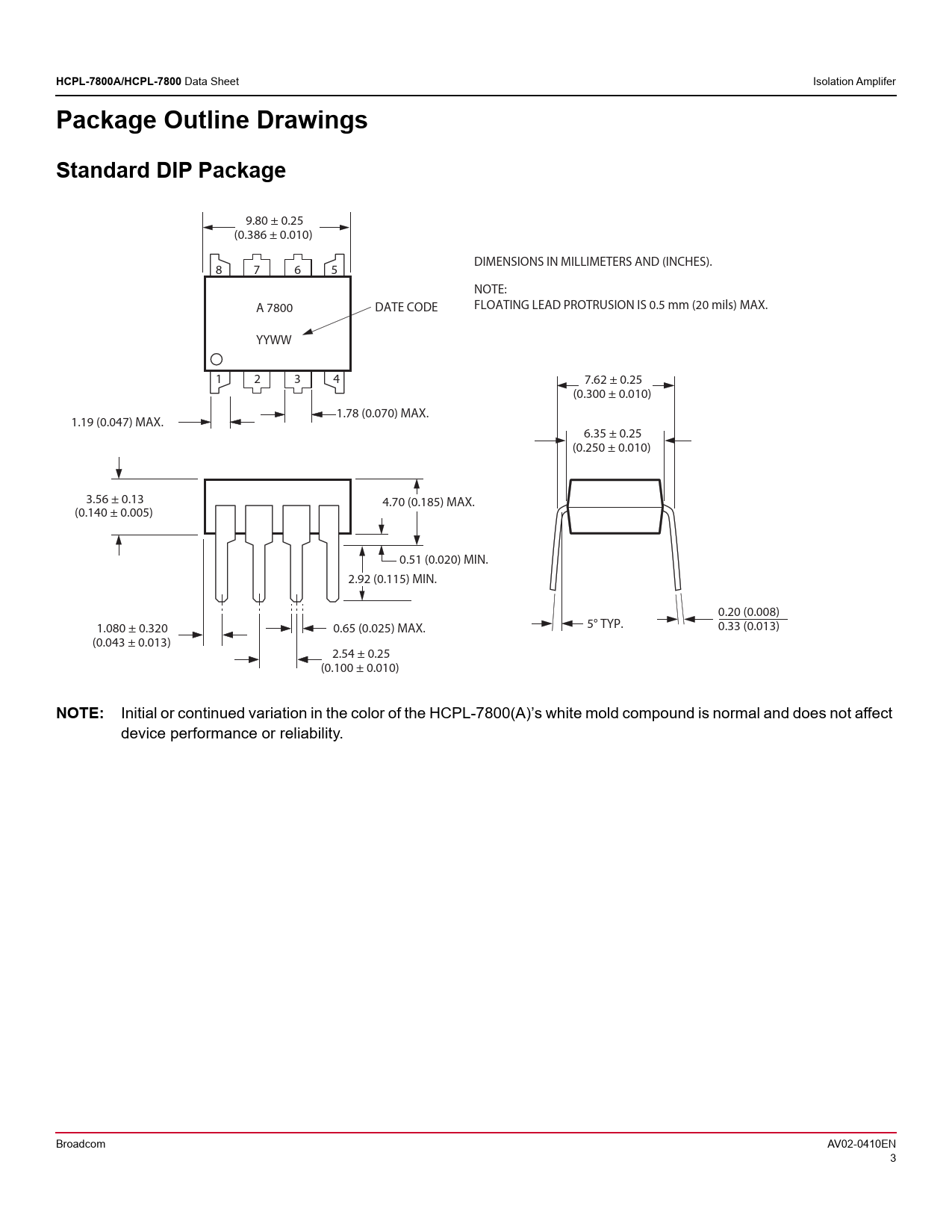

HCPL-7800A/HCPL-7800. Package Outline Drawings. Standard DIP Package. NOTE:
Model Line for this Datasheet
Text Version of Document
HCPL-7800A/HCPL-7800
Data Sheet Isolation Amplifer
Package Outline Drawings Standard DIP Package
9.80 ± 0.25 (0.386 ± 0.010) DIMENSIONS IN MILLIMETERS AND (INCHES). 8 7 6 5 NOTE: A 7800 DATE CODE FLOATING LEAD PROTRUSION IS 0.5 mm (20 mils) MAX. YYWW 1 2 3 4 7.62 ± 0.25 (0.300 ± 0.010) 1.78 (0.070) MAX. 1.19 (0.047) MAX. 6.35 ± 0.25 (0.250 ± 0.010) 3.56 ± 0.13 4.70 (0.185) MAX. (0.140 ± 0.005) 0.51 (0.020) MIN. 2.92 (0.115) MIN. 0.20 (0.008) 1.080 ± 0.320 0.65 (0.025) MAX. 5° TYP. 0.33 (0.013) (0.043 ± 0.013) 2.54 ± 0.25 (0.100 ± 0.010)
NOTE:
Initial or continued variation in the color of the HCPL-7800(A)’s white mold compound is normal and does not affect device performance or reliability. Broadcom AV02-0410EN 3 Document Outline Description Features Applications Functional Diagram Ordering Information Package Outline Drawings Standard DIP Package Gull Wing Surface Mount Option 300 Solder Reflow Profile Regulatory Information IEC/EN/DIN EN 60747-5-5 Insulation Characteristics Insulation and Safety-Related Specifications Absolute Maximum Ratings Recommended Operating Conditions DC Electrical Specifications AC Electrical Specifications Package Characteristics Application Information Power Supplies and Bypassing PC Board Layout Current Sensing Resistors Sense Resistor Connections Output Side Frequently Asked Questions about the HCPL-7800(A) Basics Sense Resistor and Input Filter Isolation and Insulation Accuracy Power Supplies and Start-Up Miscellaneous
