Datasheet APT40M35JVR (APT) - 4
| Manufacturer | APT |
| Description | POWER MOS V 400V 93A 0.035Ω |
| Pages / Page | 4 / 4 — APT40M35JVR. FIGURE 10, MAXIMUM SAFE OPERATING AREA. FIGURE 11, TYPICAL … |
| File Format / Size | PDF / 74 Kb |
| Document Language | English |
APT40M35JVR. FIGURE 10, MAXIMUM SAFE OPERATING AREA. FIGURE 11, TYPICAL CAPACITANCE vs DRAIN-TO-SOURCE VOLTAGE
Model Line for this Datasheet
Text Version of Document

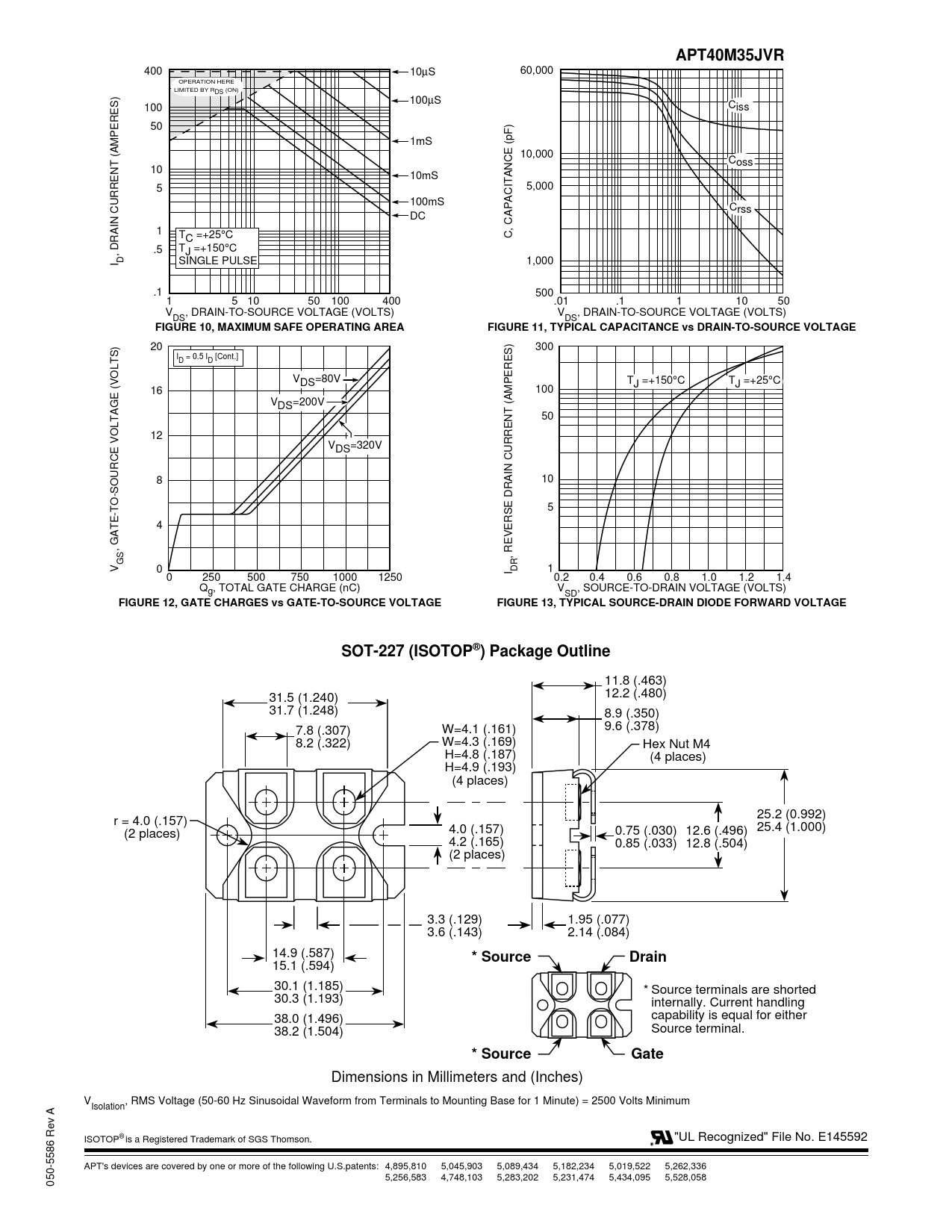

APT40M35JVR
400 10µS 60,000 OPERATION HERE LIMITED BY RDS (ON) 100µS C 100 iss 50 1mS 10,000 Coss 10 10mS 5 5,000 100mS Crss DC 1 T C, CAPACITANCE (pF) C =+25°C , DRAIN CURRENT (AMPERES) .5 TJ =+150°C I D SINGLE PULSE 1,000 .1 500 1 5 10 50 100 400 .01 .1 1 10 50 V , DRAIN-TO-SOURCE VOLTAGE (VOLTS) V , DRAIN-TO-SOURCE VOLTAGE (VOLTS) DS DS
FIGURE 10, MAXIMUM SAFE OPERATING AREA FIGURE 11, TYPICAL CAPACITANCE vs DRAIN-TO-SOURCE VOLTAGE
20 300 I = 0.5 I [Cont.] D D VDS=80V TJ =+150°C TJ =+25°C 16 100 VDS=200V 50 12 VDS=320V 8 10 5 4 , GATE-TO-SOURCE VOLTAGE (VOLTS) , REVERSE DRAIN CURRENT (AMPERES) GS V 0 I DR 1 0 250 500 750 1000 1250 0.2 0.4 0.6 0.8 1.0 1.2 1.4 Qg, TOTAL GATE CHARGE (nC) V , SOURCE-TO-DRAIN VOLTAGE (VOLTS) SD
FIGURE 12, GATE CHARGES vs GATE-TO-SOURCE VOLTAGE FIGURE 13, TYPICAL SOURCE-DRAIN DIODE FORWARD VOLTAGE SOT-227 (ISOTOP®) Package Outline
11.8 (.463) 31.5 (1.240) 12.2 (.480) 31.7 (1.248) 8.9 (.350) 7.8 (.307) 9.6 (.378) W=4.1 (.161) 8.2 (.322) W=4.3 (.169) Hex Nut M4 H=4.8 (.187) (4 places) H=4.9 (.193) (4 places) 25.2 (0.992) r = 4.0 (.157) 0.75 (.030) 12.6 (.496) 25.4 (1.000) (2 places) 4.0 (.157) 4.2 (.165) 0.85 (.033) 12.8 (.504) (2 places) 3.3 (.129) 1.95 (.077) 3.6 (.143) 2.14 (.084) 14.9 (.587)
* Source Drain
15.1 (.594) 30.1 (1.185) * Source terminals are shorted 30.3 (1.193) internally. Current handling 38.0 (1.496) capability is equal for either 38.2 (1.504) Source terminal.
* Source Gate
Dimensions in Millimeters and (Inches) V , RMS Voltage (50-60 Hz Sinusoidal Waveform from Terminals to Mounting Base for 1 Minute) = 2500 Volts Minimum Isolation ISOTOP® is a Registered Trademark of SGS Thomson. "UL Recognized" File No. E145592 APT's devices are covered by one or more of the following U.S.patents: 4,895,810 5,045,903 5,089,434 5,182,234 5,019,522 5,262,336 5,256,583 4,748,103 5,283,202 5,231,474 5,434,095 5,528,058 050-5586 Rev A
