Datasheet BAS70, BAS70-04, BAS70-05, BAS70-06 (Diodes) - 4
| Manufacturer | Diodes |
| Description | Surface-Mount Schottky Barrier Diode |
| Pages / Page | 5 / 4 — BAS70/ -04/ -05/ -06. Package Outline Dimensions. SOT23. Dim. Min. Max. … |
| File Format / Size | PDF / 524 Kb |
| Document Language | English |

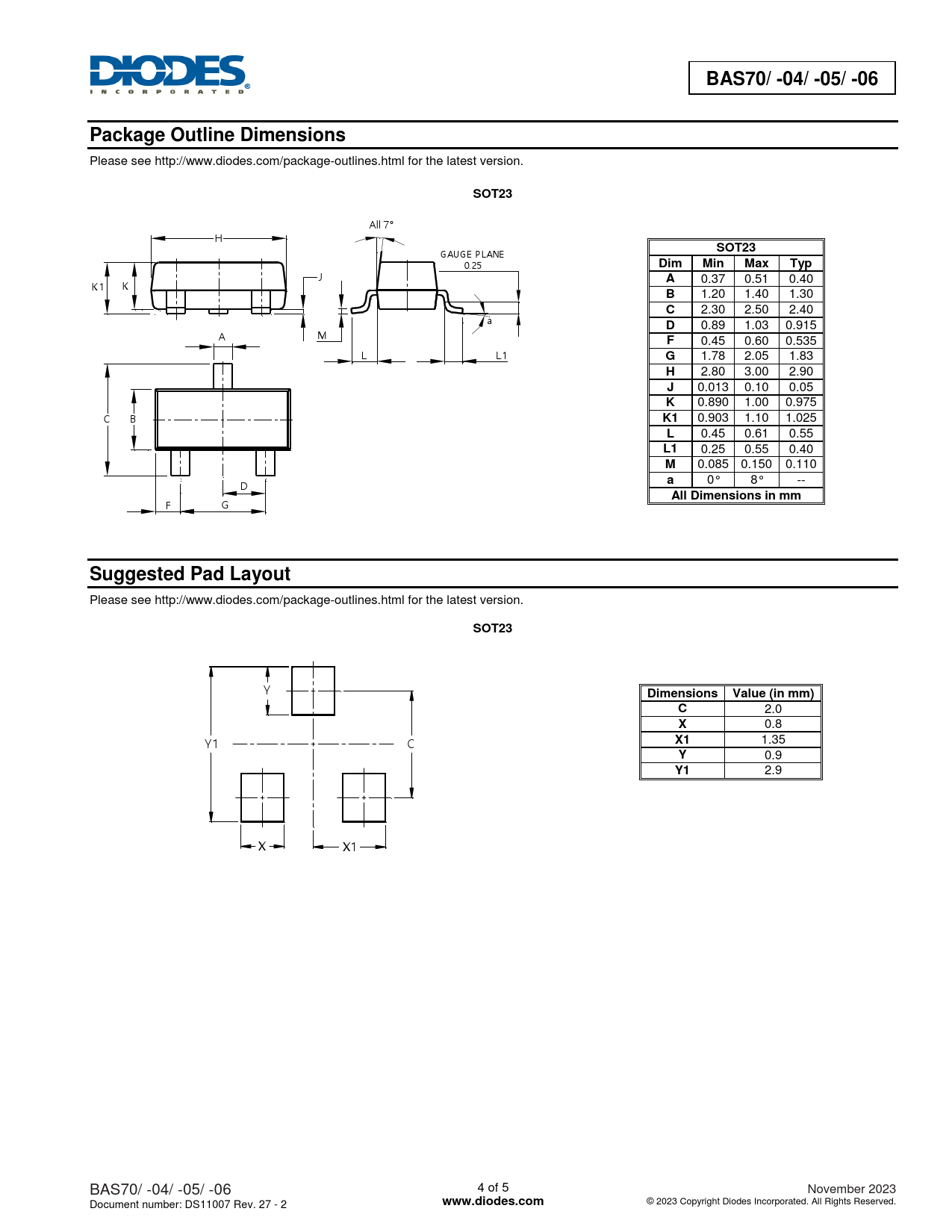

BAS70/ -04/ -05/ -06. Package Outline Dimensions. SOT23. Dim. Min. Max. Typ. All Dimensions in mm. Suggested Pad Layout
Model Line for this Datasheet
Text Version of Document
BAS70/ -04/ -05/ -06 Package Outline Dimensions
Please see http://www.diodes.com/package-outlines.html for the latest version.
SOT23
Al 7° H
SOT23
GAUGE PLANE 0.25
Dim Min Max Typ
J
A
0.37 0.51 0.40 K1 K
B
1.20 1.40 1.30
C
2.30 2.50 2.40 a
D
0.89 1.03 0.915 A M
F
0.45 0.60 0.535 L L1
G
1.78 2.05 1.83
H
2.80 3.00 2.90
J
0.013 0.10 0.05
K
0.890 1.00 0.975 C B
K1
0.903 1.10 1.025
L
0.45 0.61 0.55
L1
0.25 0.55 0.40
M
0.085 0.150 0.110 D
a
0° 8° --
All Dimensions in mm
F G
Suggested Pad Layout
Please see http://www.diodes.com/package-outlines.html for the latest version.
SOT23
Y
Dimensions Value (in mm) C
2.0
X
0.8
X1
1.35 Y1 C
Y
0.9
Y1
2.9 X X1 BAS70/ -04/ -05/ -06 4 of 5 November 2023 Document number: DS11007 Rev. 27 - 2
