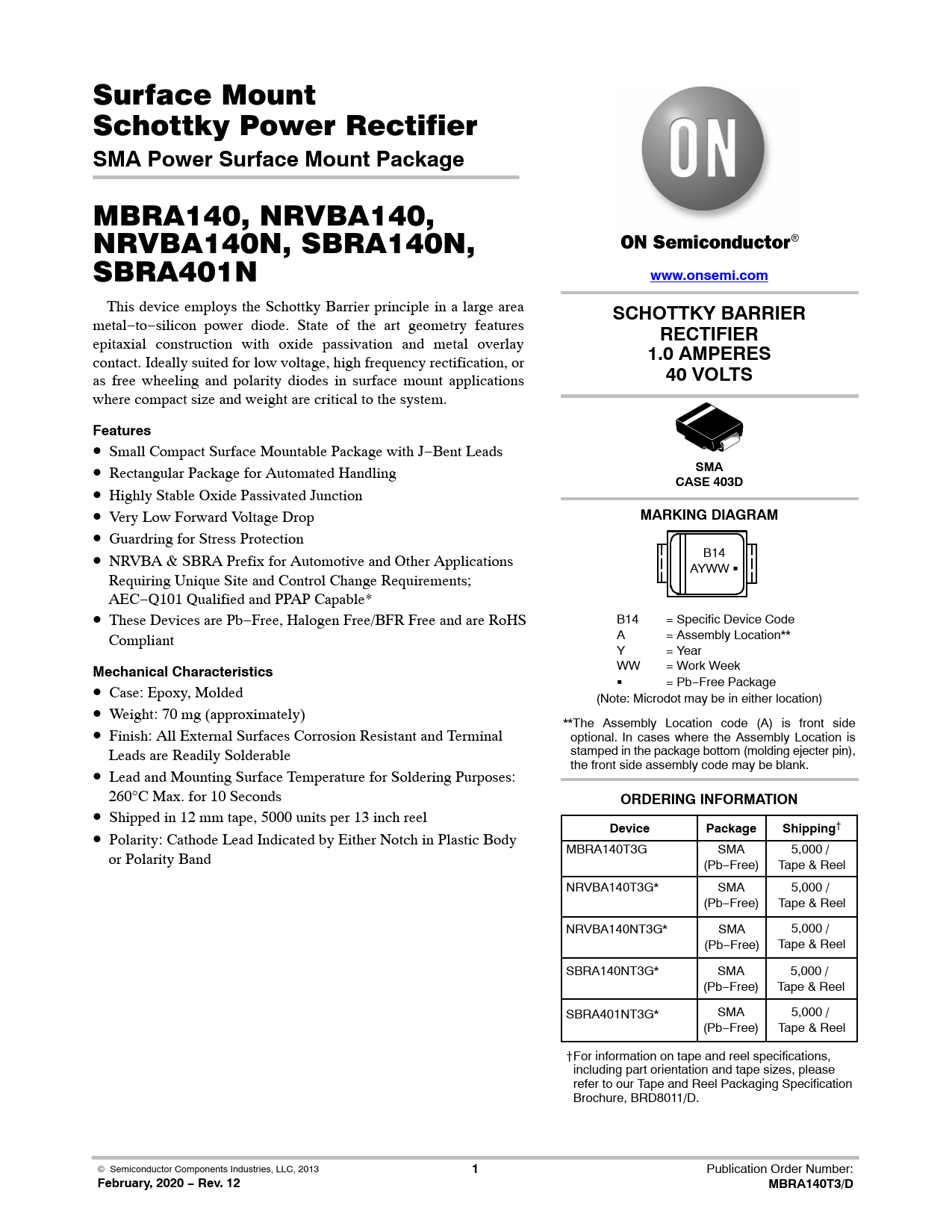

Surface Mount Schottky Power Rectifier
SMA Power Surface Mount Package
MBRA140, NRVBA140, NRVBA140N, SBRA140N, SBRA401N
www.onsemi.com
This device employs the Schottky Barrier principle in a large area
SCHOTTKY BARRIER
metal−to−silicon power diode. State of the art geometry features
RECTIFIER
epitaxial construction with oxide passivation and metal overlay contact. Ideally suited for low voltage, high frequency rectification, or
1.0 AMPERES
as free wheeling and polarity diodes in surface mount applications
40 VOLTS
where compact size and weight are critical to the system.
Features
• Small Compact Surface Mountable Package with J−Bent Leads • Rectangular Package for Automated Handling
SMA CASE 403D
• Highly Stable Oxide Passivated Junction • Very Low Forward Voltage Drop
MARKING DIAGRAM
• Guardring for Stress Protection • NRVBA & SBRA Prefix for Automotive and Other Applications B14 AYWW G Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable* • These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS B14 = Specific Device Code Compliant A = Assembly Location** Y = Year
Mechanical Characteristics
WW = Work Week • G = Pb−Free Package Case: Epoxy, Molded (Note: Microdot may be in either location) • Weight: 70 mg (approximately) **The Assembly Location code (A) is front side • Finish: All External Surfaces Corrosion Resistant and Terminal optional. In cases where the Assembly Location is Leads are Readily Solderable stamped in the package bottom (molding ejecter pin), • the front side assembly code may be blank. Lead and Mounting Surface Temperature for Soldering Purposes: 260°C Max. for 10 Seconds
ORDERING INFORMATION
• Shipped in 12 mm tape, 5000 units per 13 inch reel •
Device Package Shipping
† Polarity: Cathode Lead Indicated by Either Notch in Plastic Body MBRA140T3G SMA 5,000 / or Polarity Band (Pb−Free) Tape & Reel NRVBA140T3G* SMA 5,000 / (Pb−Free) Tape & Reel NRVBA140NT3G* SMA 5,000 / (Pb−Free) Tape & Reel SBRA140NT3G* SMA 5,000 / (Pb−Free) Tape & Reel SBRA401NT3G* SMA 5,000 / (Pb−Free) Tape & Reel †For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specification Brochure, BRD8011/D. © Semiconductor Components Industries, LLC, 2013
1
Publication Order Number:
February, 2020 − Rev. 12 MBRA140T3/D
