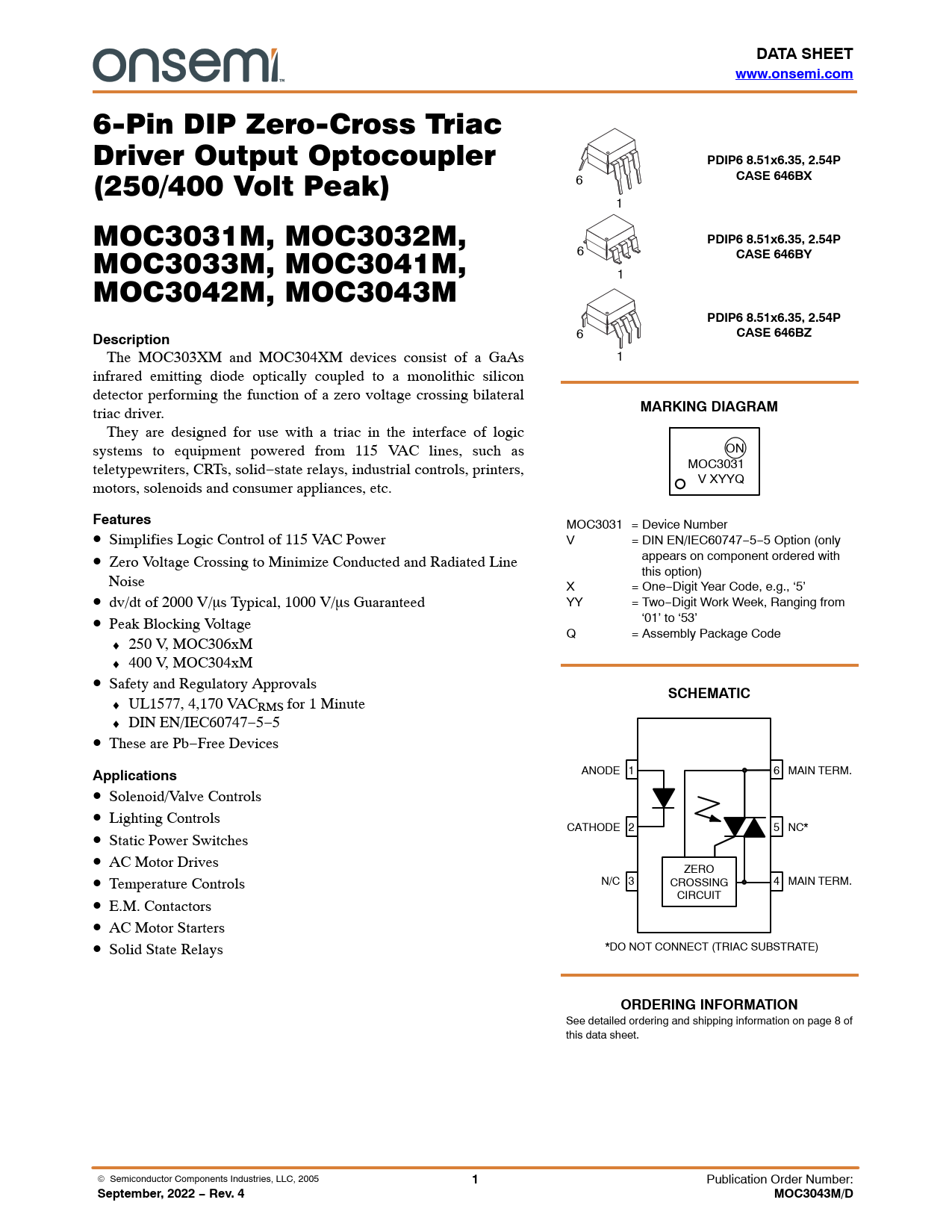

DATA SHEET. www.onsemi.com. PDIP6 8.51x6.35, 2.54P. CASE 646BX. CASE 646BY. Description. CASE 646BZ. MARKING DIAGRAM. Features. SCHEMATIC
Model Line for this Datasheet
Text Version of Document
link to page 8
DATA SHEET www.onsemi.com
6-Pin DIP Zero-Cross Triac Driver Output Optocoupler
PDIP6 8.51x6.35, 2.54P
(250/400 Volt Peak) 6
CASE 646BX
1 MOC3031M, MOC3032M,
PDIP6 8.51x6.35, 2.54P
MOC3033M, MOC3041M, 6
CASE 646BY
1 MOC3042M, MOC3043M
PDIP6 8.51x6.35, 2.54P Description
6
CASE 646BZ
The MOC303XM and MOC304XM devices consist of a GaAs 1 infrared emitting diode optically coupled to a monolithic silicon detector performing the function of a zero voltage crossing bilateral triac driver.
MARKING DIAGRAM
They are designed for use with a triac in the interface of logic systems to equipment powered from 115 VAC lines, such as ON teletypewriters, CRTs, solid−state relays, industrial controls, printers, MOC3031 motors, solenoids and consumer appliances, etc. V XYYQ
Features
MOC3031 = Device Number • Simplifies Logic Control of 115 VAC Power V = DIN EN/IEC60747−5−5 Option (only • Zero Voltage Crossing to Minimize Conducted and Radiated Line appears on component ordered with this option) Noise X = One−Digit Year Code, e.g., ‘5’ • dv/dt of 2000 V/ms Typical, 1000 V/ms Guaranteed YY = Two−Digit Work Week, Ranging from • Peak Blocking Voltage ‘01’ to ‘53’ Q = Assembly Package Code ♦ 250 V, MOC306xM ♦ 400 V, MOC304xM • Safety and Regulatory Approvals
SCHEMATIC
♦ UL1577, 4,170 VACRMS for 1 Minute ♦ DIN EN/IEC60747−5−5 • These are Pb−Free Devices
Applications
ANODE 1 6 MAIN TERM. • Solenoid/Valve Controls • Lighting Controls CATHODE 2 5 NC* • Static Power Switches • AC Motor Drives ZERO • Temperature Controls N/C 3 CROSSING 4 MAIN TERM. • CIRCUIT E.M. Contactors • AC Motor Starters • Solid State Relays *DO NOT CONNECT (TRIAC SUBSTRATE)
ORDERING INFORMATION
See detailed ordering and shipping information on page 8 of this data sheet. © Semiconductor Components Industries, LLC, 2005
1
Publication Order Number:
September, 2022 − Rev. 4 MOC3043M/D
