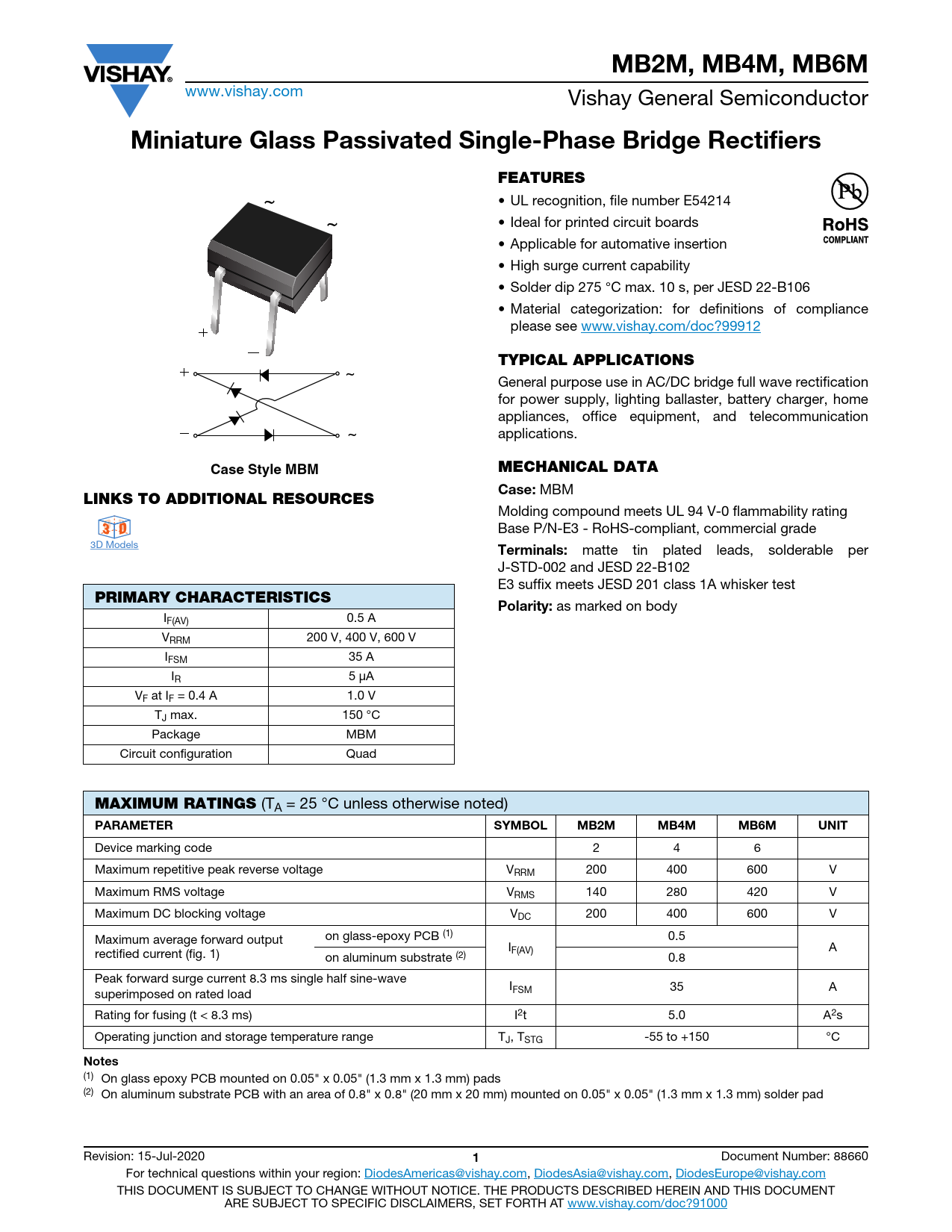

MB2M, MB4M, MB6M. Miniature Glass Passivated Single-Phase Bridge Rectifiers. FEATURES. TYPICAL APPLICATIONS. Case Style MBM
Model Line for this Datasheet
Text Version of Document
MB2M, MB4M, MB6M
www.vishay.com Vishay General Semiconductor
Miniature Glass Passivated Single-Phase Bridge Rectifiers FEATURES
• UL recognition, file number E54214 ~ • Ideal for printed circuit boards ~ • Applicable for automative insertion • High surge current capability • Solder dip 275 °C max. 10 s, per JESD 22-B106 • Material categorization: for definitions of compliance please see www.vishay.com/doc?99912
TYPICAL APPLICATIONS
~ General purpose use in AC/DC bridge full wave rectification for power supply, lighting ballaster, battery charger, home appliances, office equipment, and telecommunication ~ applications.
Case Style MBM MECHANICAL DATA LINKS TO ADDITIONAL RESOURCES Case:
MBM Molding compound meets UL 94 V-0 flammability rating
D 3 3
Base P/N-E3 - RoHS-compliant, commercial grade
D
3D Models
Terminals:
matte tin plated leads, solderable per J-STD-002 and JESD 22-B102 E3 suffix meets JESD 201 class 1A whisker test
PRIMARY CHARACTERISTICS Polarity:
as marked on body IF(AV) 0.5 A VRRM 200 V, 400 V, 600 V IFSM 35 A IR 5 μA VF at IF = 0.4 A 1.0 V TJ max. 150 °C Package MBM Circuit configuration Quad
MAXIMUM RATINGS
(TA = 25 °C unless otherwise noted)
PARAMETER SYMBOL MB2M MB4M MB6M UNIT
Device marking code 2 4 6 Maximum repetitive peak reverse voltage VRRM 200 400 600 V Maximum RMS voltage VRMS 140 280 420 V Maximum DC blocking voltage VDC 200 400 600 V Maximum average forward output on glass-epoxy PCB (1) 0.5 I A rectified current (fig. 1) F(AV) on aluminum substrate (2) 0.8 Peak forward surge current 8.3 ms single half sine-wave I superimposed on rated load FSM 35 A Rating for fusing (t < 8.3 ms) I2t 5.0 A2s Operating junction and storage temperature range TJ, TSTG -55 to +150 °C
Notes
(1) On glass epoxy PCB mounted on 0.05" x 0.05" (1.3 mm x 1.3 mm) pads (2) On aluminum substrate PCB with an area of 0.8" x 0.8" (20 mm x 20 mm) mounted on 0.05" x 0.05" (1.3 mm x 1.3 mm) solder pad Revision: 15-Jul-2020
1
Document Number: 88660 For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
