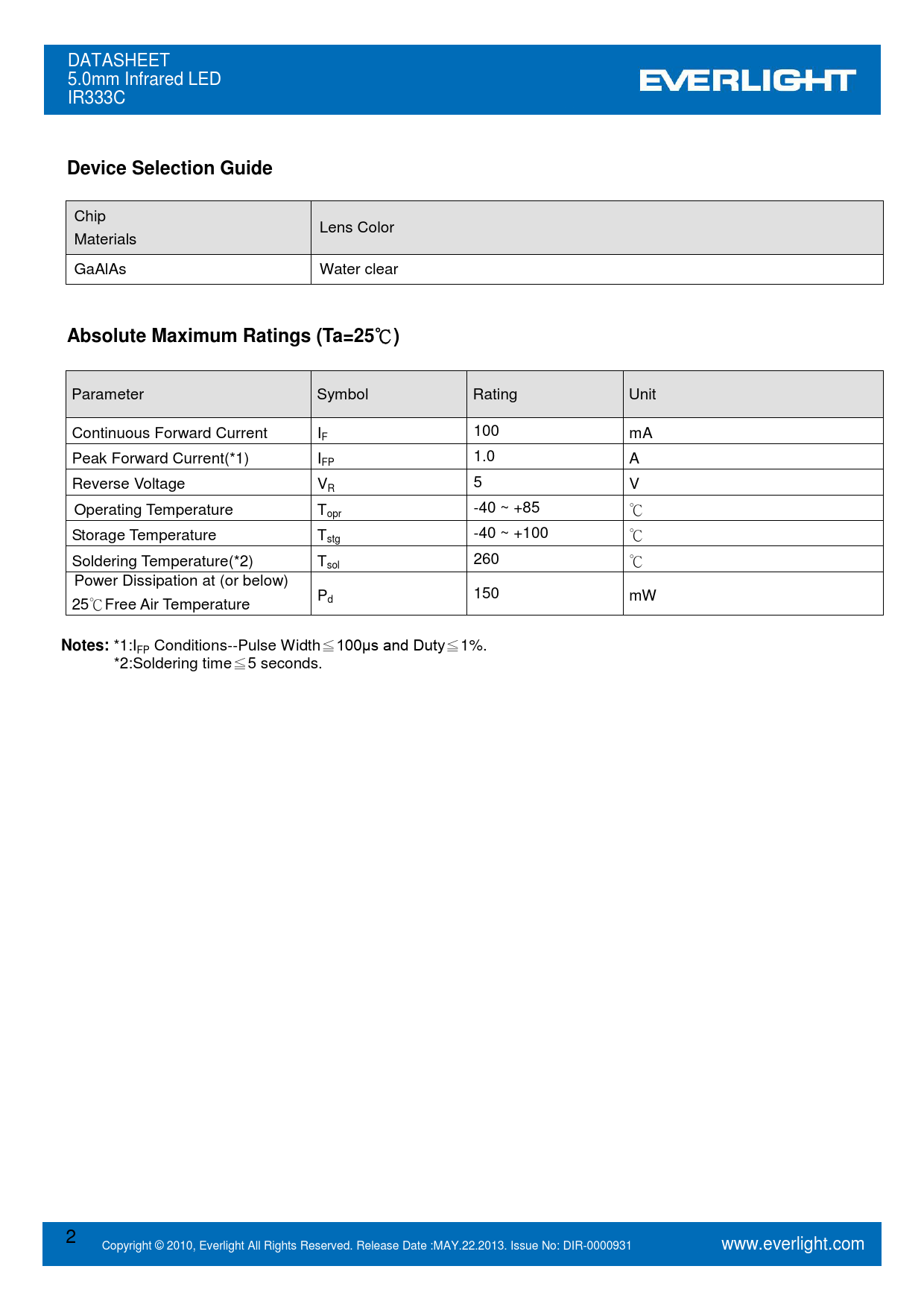

DATASHEET 5.0mm Infrared LED IR333C
Device Selection Guide
Chip Lens Color Materials GaAlAs Water clear
Absolute Maximum Ratings (Ta=25
℃
)
Parameter Symbol Rating Unit Continuous Forward Current IF 100 mA Peak Forward Current(*1) IFP 1.0 A Reverse Voltage VR 5 V Operating Temperature Topr -40 ~ +85 ℃ Storage Temperature Tstg -40 ~ +100 ℃ Soldering Temperature(*2) T 260 sol ℃ Power Dissipation at (or below) P 25℃Free Air Temperature d 150 mW
Notes:
*1:IFP Conditions--Pulse Width≦100μs and Duty≦1%. *2:Soldering time≦5 seconds. 2 Copyright © 2010, Everlight All Rights Reserved. Release Date :MAY.22.2013. Issue No: DIR-0000931 www.everlight.com
