Datasheet RT2-418, RT2-433.92 (Telecontrolli) - 2
| Manufacturer | Telecontrolli |
| Description | Radio Transmitter Module with SAW Resonator |
| Pages / Page | 2 / 2 — Electrical Characteristics. Pin Description. Mechanical Dimensions. … |
| File Format / Size | PDF / 17 Kb |
| Document Language | English |
Electrical Characteristics. Pin Description. Mechanical Dimensions. TYPICAL APPLICATION. telecontrolli. HEAD OFFICE & PLANT
Model Line for this Datasheet
Text Version of Document

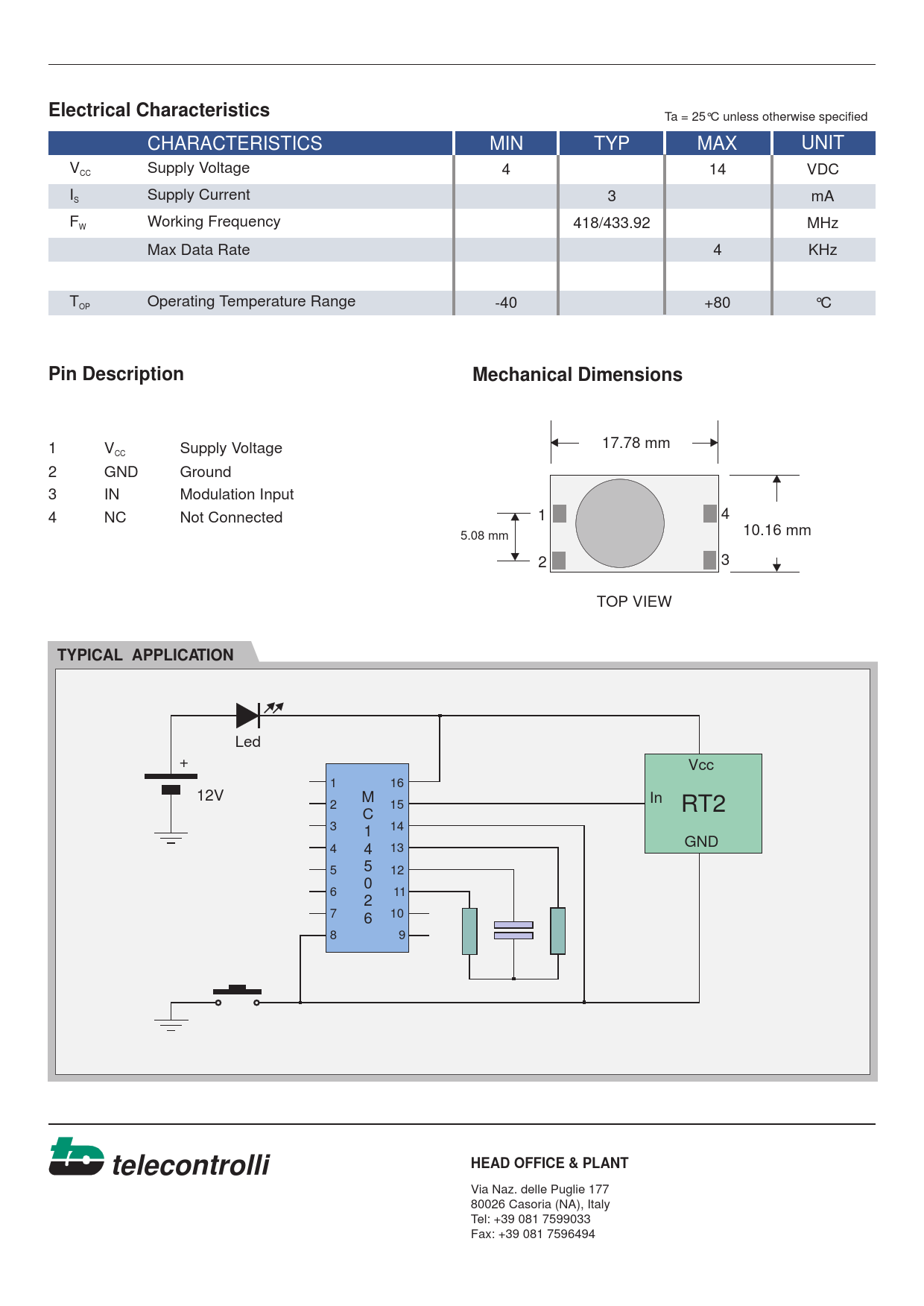

Electrical Characteristics
Ta = 25°C unless otherwise specified CHARACTERISTICS MIN TYP MAX UNIT V Supply Voltage CC 4 14 VDC I Supply Current S 3 mA F Working Frequency W 418/433.92 MHz Max Data Rate 4 KHz T Operating Temperature Range OP -40 +80 °C
Pin Description Mechanical Dimensions
17.78 mm 1 VCC Supply Voltage 2 GND Ground 3 IN Modulation Input 4 NC Not Connected 1 4 10.16 mm 5.08 mm 2 3 TOP VIEW
TYPICAL APPLICATION
Led + Vcc 1 16 12V M In 2 15 RT2 C 3 14 1 GND 4 4 13 5 5 12 0 6 11 2 7 10 6 8 9
