Datasheet TLV9101, TLV9102, TLV9104 (Texas Instruments) - 8
| Manufacturer | Texas Instruments |
| Description | 16-V, 1-MHz, Rail-to-Rail Input/Output, Low Power Op Amp |
| Pages / Page | 84 / 8 — TLV9101, TL. V9102,. TLV9104. www.ti.com. Table 5-5. Pin Functions: … |
| File Format / Size | PDF / 6.9 Mb |
| Document Language | English |

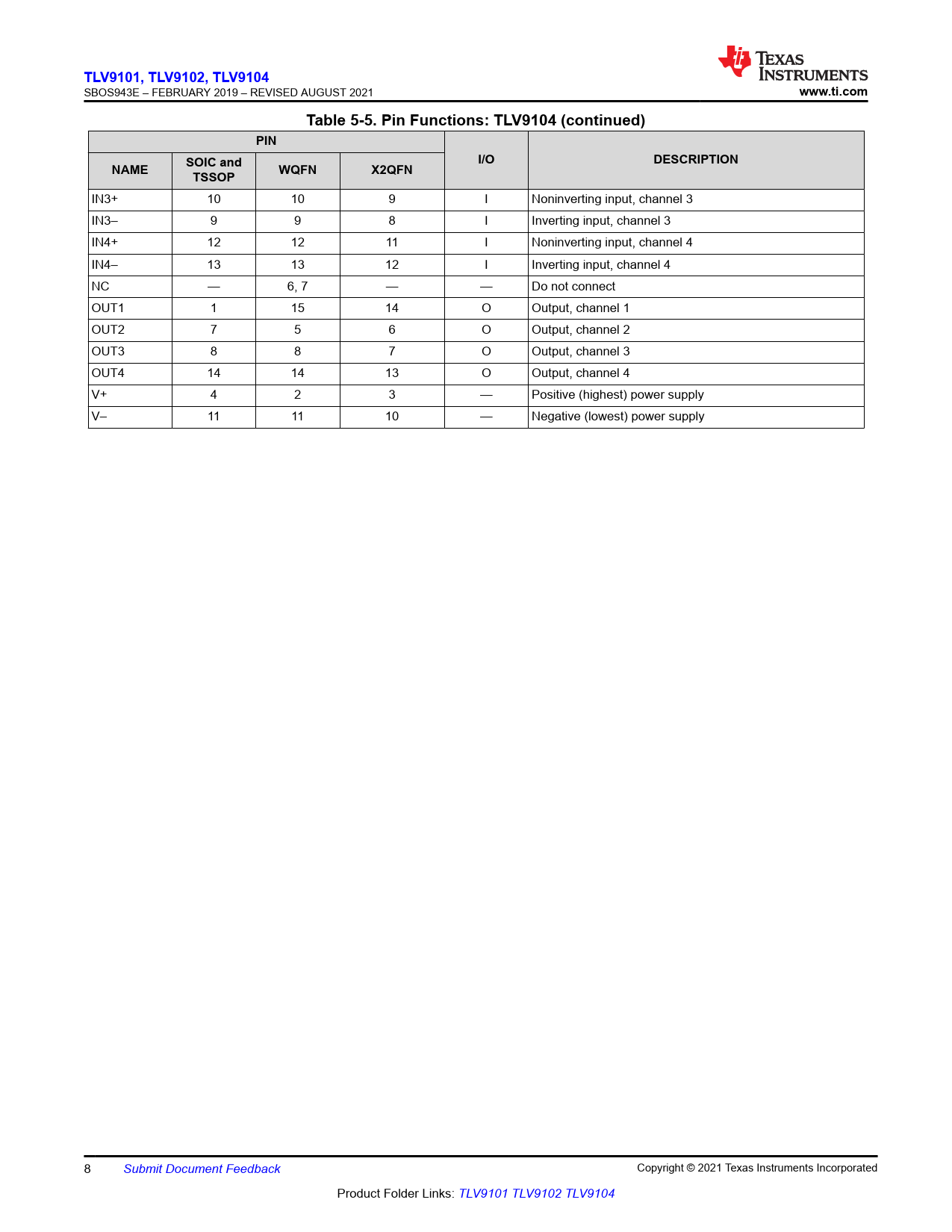

TLV9101, TL. V9102,. TLV9104. www.ti.com. Table 5-5. Pin Functions: TLV9104 (continued). PIN. I/O. DESCRIPTION. SOIC and. NAME. WQFN. X2QFN
Model Line for this Datasheet
Text Version of Document
TLV9101, TL V9102, TLV9104
SBOS943E – FEBRUARY 2019 – REVISED AUGUST 2021
www.ti.com Table 5-5. Pin Functions: TLV9104 (continued) PIN I/O DESCRIPTION SOIC and NAME WQFN X2QFN TSSOP
IN3+ 10 10 9 I Noninverting input, channel 3 IN3– 9 9 8 I Inverting input, channel 3 IN4+ 12 12 11 I Noninverting input, channel 4 IN4– 13 13 12 I Inverting input, channel 4 NC — 6, 7 — — Do not connect OUT1 1 15 14 O Output, channel 1 OUT2 7 5 6 O Output, channel 2 OUT3 8 8 7 O Output, channel 3 OUT4 14 14 13 O Output, channel 4 V+ 4 2 3 — Positive (highest) power supply V– 11 11 10 — Negative (lowest) power supply 8 Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated Product Folder Links: TLV9101 TLV9102 TLV9104 Document Outline 1 Features 2 Applications 3 Description Table of Contents 4 Revision History 5 Pin Configuration and Functions 6 Specifications 6.1 Absolute Maximum Ratings 6.2 ESD Ratings 6.3 Recommended Operating Conditions 6.4 Thermal Information for Single Channel 6.5 Thermal Information for Dual Channel 6.6 Thermal Information for Quad Channel 6.7 Electrical Characteristics 6.8 Typical Characteristics 7 Detailed Description 7.1 Overview 7.2 Functional Block Diagram 7.3 Feature Description 7.3.1 EMI Rejection 7.3.2 Phase Reversal Protection 7.3.3 Thermal Protection 7.3.4 Capacitive Load and Stability 7.3.5 Common-Mode Voltage Range 7.3.6 Electrical Overstress 7.3.7 Overload Recovery 7.3.8 Typical Specifications and Distributions 7.3.9 Packages With an Exposed Thermal Pad 7.3.10 Shutdown 7.4 Device Functional Modes 8 Application and Implementation 8.1 Application Information 8.2 Typical Applications 8.2.1 High Voltage Precision Comparator 8.2.1.1 Design Requirements 8.2.1.2 Detailed Design Procedure 8.2.1.3 Application Curve 9 Power Supply Recommendations 10 Layout 10.1 Layout Guidelines 10.2 Layout Example 11 Device and Documentation Support 11.1 Device Support 11.1.1 Development Support 11.1.1.1 TINA-TI™ (Free Software Download) 11.2 Documentation Support 11.2.1 Related Documentation 11.3 Receiving Notification of Documentation Updates 11.4 Support Resources 11.5 Trademarks 11.6 Electrostatic Discharge Caution 11.7 Glossary 12 Mechanical, Packaging, and Orderable Information
