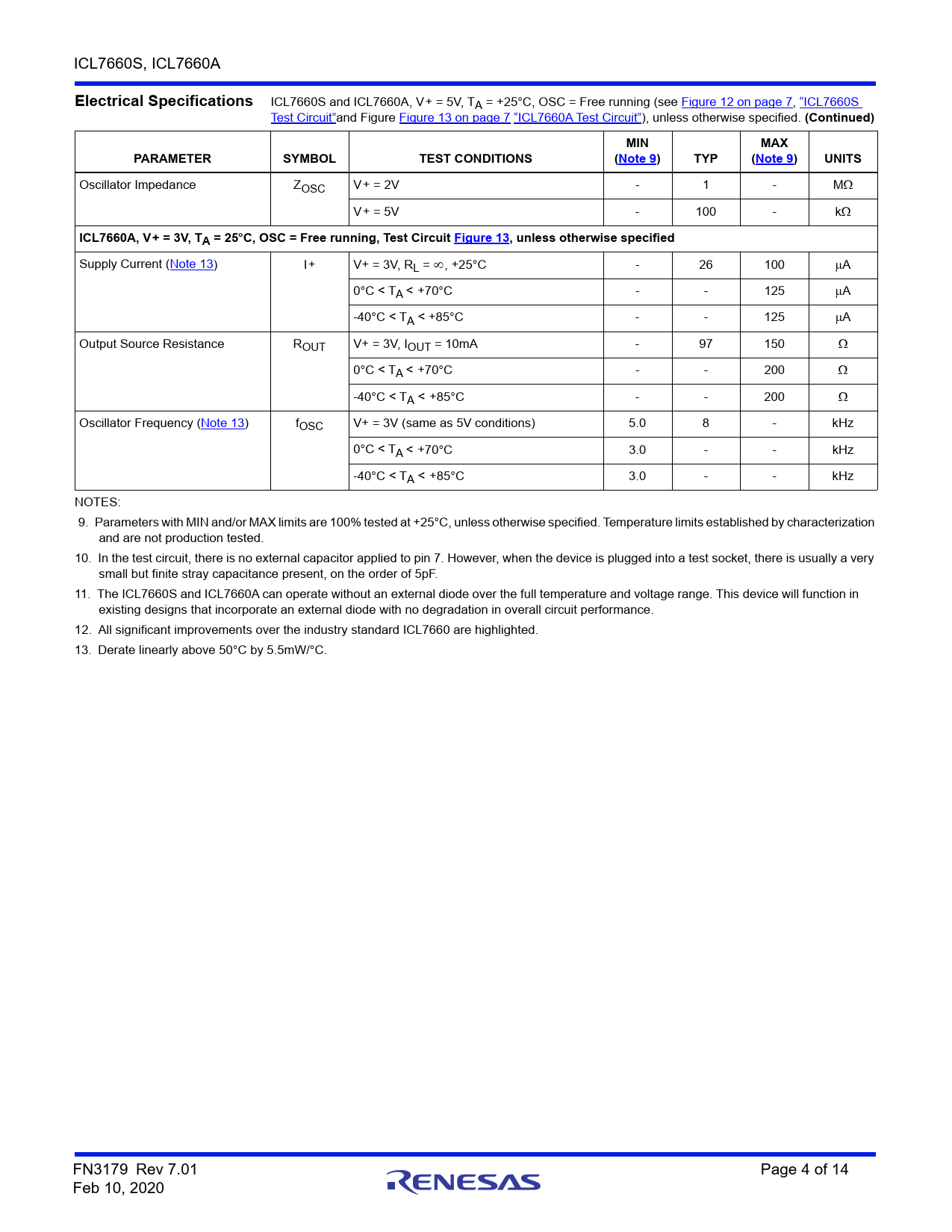

link to page 4 link to page 7 link to page 4 ICL7660S, ICL7660A
Electrical Specifications
ICL7660S and ICL7660A, V+ = 5V, TA = +25°C, OSC = Free running (see Figure 12 on page 7, “ICL7660S Test Circuit”and Figure Figure 13 on page 7 “ICL7660A Test Circuit”), unless otherwise specified.
(Continued) MIN MAX PARAMETER SYMBOL TEST CONDITIONS (Note 9) TYP (Note 9) UNITS
Oscillator Impedance ZOSC V+ = 2V - 1 - M V+ = 5V - 100 - k
ICL7660A, V+ = 3V, TA = 25°C, OSC = Free running, Test Circuit Figure 13 , unless otherwise specified
Supply Current (Note 13) I+ V+ = 3V, RL = , +25°C - 26 100 A 0°C < TA < +70°C - - 125 A -40°C < TA < +85°C - - 125 A Output Source Resistance ROUT V+ = 3V, IOUT = 10mA - 97 150 0°C < TA < +70°C - - 200 -40°C < TA < +85°C - - 200 Oscillator Frequency (Note 13) fOSC V+ = 3V (same as 5V conditions) 5.0 8 - kHz 0°C < TA < +70°C 3.0 - - kHz -40°C < TA < +85°C 3.0 - - kHz NOTES: 9. Parameters with MIN and/or MAX limits are 100% tested at +25°C, unless otherwise specified. Temperature limits established by characterization and are not production tested. 10. In the test circuit, there is no external capacitor applied to pin 7. However, when the device is plugged into a test socket, there is usually a very small but finite stray capacitance present, on the order of 5pF. 11. The ICL7660S and ICL7660A can operate without an external diode over the full temperature and voltage range. This device will function in existing designs that incorporate an external diode with no degradation in overall circuit performance. 12. All significant improvements over the industry standard ICL7660 are highlighted. 13. Derate linearly above 50°C by 5.5mW/°C. FN3179 Rev 7.01 Page 4 of 14 Feb 10, 2020
