Datasheet TDA7052A, TDA7052AT (NXP) - 7

ManufacturerNXP
Description1 W BTL Mono Audio Amplifier With DC Volume Control
Pages / Page14 / 7 — NXP. Semiconductors. Product. specification. 1. W. BTL. mono. audio. …
File Format / SizePDF / 298 Kb
Document LanguageEnglish

NXP. Semiconductors. Product. specification. 1. W. BTL. mono. audio. amplifier. with. DC. TDA7052A/AT. volume. control. MCD388. MCD389. -. 1. 40. 1000. handbook,

NXP Semiconductors Product specification 1 W BTL mono audio amplifier with DC TDA7052A/AT volume control MCD388 MCD389 - 1 40 1000 handbook,

Model Line for this Datasheet

Text Version of Document

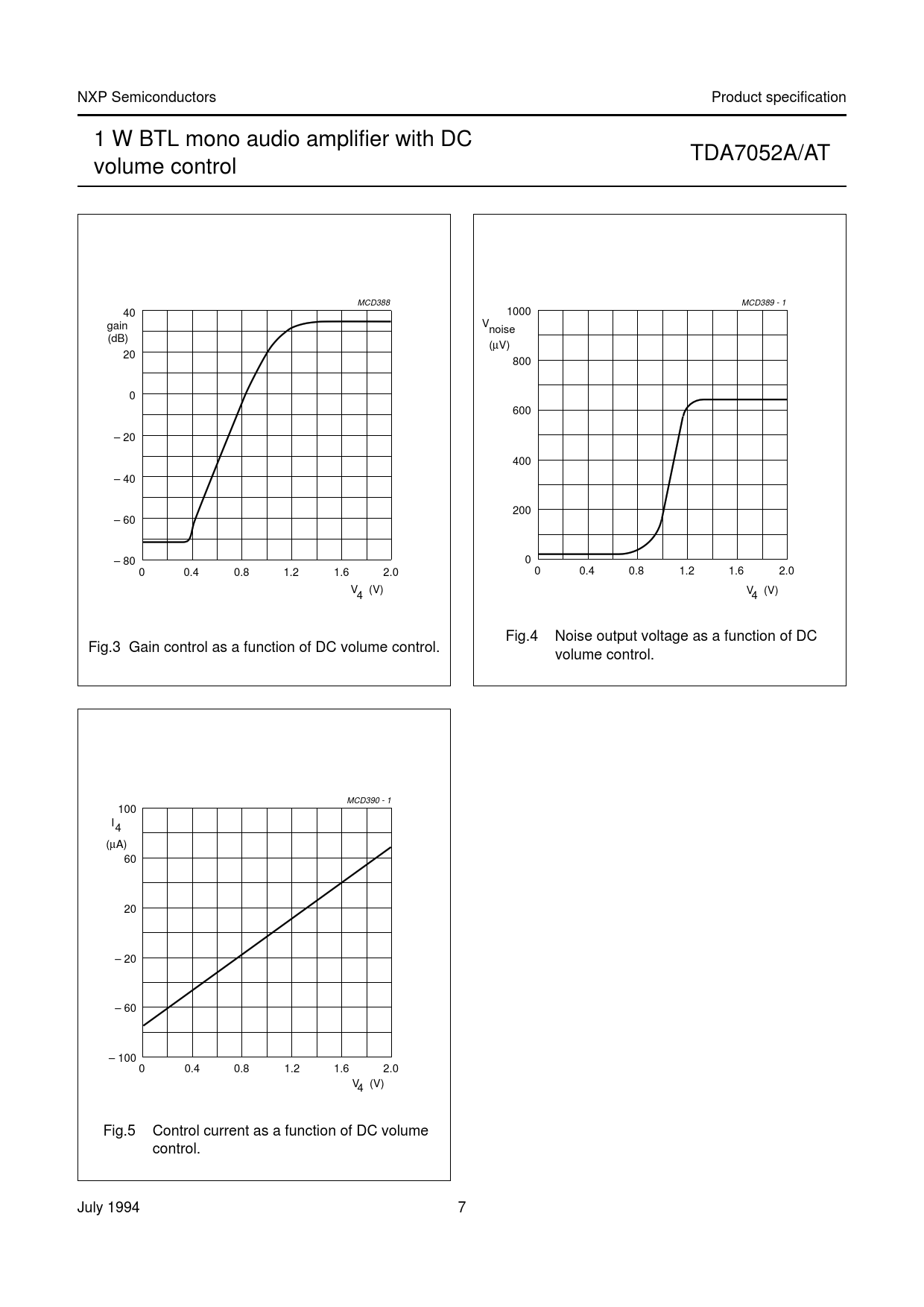

NXP Semiconductors Product specification 1 W BTL mono audio amplifier with DC TDA7052A/AT volume control MCD388 MCD389 - 1 40 1000 handbook, halfpage handbook, halfpage gain Vnoise (dB) (μV) 20 800 0 600 – 20 400 – 40 200 – 60 – 80 0 0 0.4 0.8 1.2 1.6 2.0 0 0.4 0.8 1.2 1.6 2.0 V (V) 4 V (V) 4 Fig.4 Noise output voltage as a function of DC Fig.3 Gain control as a function of DC volume control. volume control. MCD390 - 1 100 handbook, halfpage I4 (μA) 60 20 – 20 – 60 – 100 0 0.4 0.8 1.2 1.6 2.0 V (V) 4 Fig.5 Control current as a function of DC volume control. July 1994 7 Document Outline Features General description Missing Current Limiter (MCL) Quick reference data Ordering information Pinning Functional description Limiting values Thermal resistance Characteristics Application information Package outlines Soldering Introduction DIP SO Data sheet status Disclaimers
