Datasheet NTCLE100E3 (Vishay) - 10
| Manufacturer | Vishay |
| Description | NTC Thermistors, Radial Leaded, Standard Precision |
| Pages / Page | 17 / 10 — NTCLE100E3. RESISTANCE VALUES AT INTERMEDIATE TEMPERATURES WITH R. 25 AT … |
| File Format / Size | PDF / 226 Kb |
| Document Language | English |
NTCLE100E3. RESISTANCE VALUES AT INTERMEDIATE TEMPERATURES WITH R. 25 AT (2.2, 2.7, 3.3, 4.7, 5.0, 6.8, 10) k. PART NUMBER
Model Line for this Datasheet
- NTCLE100E3 NTCLE100E3101GB0 NTCLE100E3101GB0A NTCLE100E3101HB0 NTCLE100E3101HB0A NTCLE100E3101JB0 NTCLE100E3101JB0A NTCLE100E3102GB0 NTCLE100E3102GB0A NTCLE100E3102HB0 NTCLE100E3102HB0A NTCLE100E3102JB0 NTCLE100E3102JB0A NTCLE100E3103GB0 NTCLE100E3103GB0A NTCLE100E3103HB0 NTCLE100E3103HB0A NTCLE100E3103JB0 NTCLE100E3103JB0A NTCLE100E3104GB0 NTCLE100E3104GB0A NTCLE100E3104HB0 NTCLE100E3104HB0A NTCLE100E3104JB0 NTCLE100E3104JB0A NTCLE100E3109GB0 NTCLE100E3109GB0A NTCLE100E3109HB0 NTCLE100E3109HB0A NTCLE100E3109JB0 NTCLE100E3109JB0A NTCLE100E3123GB0 NTCLE100E3123GB0A NTCLE100E3123HB0 NTCLE100E3123HB0A NTCLE100E3123JB0 NTCLE100E3123JB0A NTCLE100E3151GB0 NTCLE100E3151GB0A NTCLE100E3151HB0 NTCLE100E3151HB0A NTCLE100E3151JB0 NTCLE100E3151JB0A NTCLE100E3152GB0 NTCLE100E3152GB0A NTCLE100E3152HB0 NTCLE100E3152HB0A NTCLE100E3152JB0 NTCLE100E3152JB0A NTCLE100E3153GB0 NTCLE100E3153GB0A NTCLE100E3153HB0 NTCLE100E3153HB0A NTCLE100E3153JB0 NTCLE100E3153JB0A NTCLE100E3154GB0 NTCLE100E3154GB0A NTCLE100E3154HB0 NTCLE100E3154HB0A NTCLE100E3154JB0 NTCLE100E3154JB0A NTCLE100E3159GB0 NTCLE100E3159GB0A NTCLE100E3159HB0 NTCLE100E3159HB0A NTCLE100E3159JB0 NTCLE100E3159JB0A NTCLE100E3202GB0 NTCLE100E3202GB0A NTCLE100E3202HB0 NTCLE100E3202HB0A NTCLE100E3202JB0 NTCLE100E3202JB0A NTCLE100E3221GB0 NTCLE100E3221GB0A NTCLE100E3221HB0 NTCLE100E3221HB0A NTCLE100E3221JB0 NTCLE100E3221JB0A NTCLE100E3222GB0 NTCLE100E3222GB0A NTCLE100E3222HB0 NTCLE100E3222HB0A NTCLE100E3222JB0 NTCLE100E3222JB0A NTCLE100E3223GB0 NTCLE100E3223GB0A NTCLE100E3223HB0 NTCLE100E3223HB0A NTCLE100E3223JB0 NTCLE100E3223JB0A NTCLE100E3224GB0 NTCLE100E3224GB0A NTCLE100E3224HB0 NTCLE100E3224HB0A NTCLE100E3224JB0 NTCLE100E3224JB0A NTCLE100E3229GB0 NTCLE100E3229GB0A NTCLE100E3229HB0 NTCLE100E3229HB0A NTCLE100E3229JB0 NTCLE100E3229JB0A NTCLE100E3272GB0 NTCLE100E3272GB0A NTCLE100E3272HB0 NTCLE100E3272HB0A NTCLE100E3272JB0 NTCLE100E3272JB0A NTCLE100E3331GB0 NTCLE100E3331GB0A NTCLE100E3331HB0 NTCLE100E3331HB0A NTCLE100E3331JB0 NTCLE100E3331JB0A NTCLE100E3332GB0 NTCLE100E3332GB0A NTCLE100E3332HB0 NTCLE100E3332HB0A NTCLE100E3332JB0 NTCLE100E3332JB0A NTCLE100E3333GB0 NTCLE100E3333GB0A NTCLE100E3333HB0 NTCLE100E3333HB0A NTCLE100E3333JB0 NTCLE100E3333JB0A NTCLE100E3334GB0 NTCLE100E3334GB0A NTCLE100E3334HB0 NTCLE100E3334HB0A NTCLE100E3334JB0 NTCLE100E3334JB0A NTCLE100E3338GB0 NTCLE100E3338GB0A NTCLE100E3338HB0 NTCLE100E3338HB0A NTCLE100E3338JB0 NTCLE100E3338JB0A NTCLE100E3339GB0 NTCLE100E3339GB0A NTCLE100E3339HB0 NTCLE100E3339HB0A NTCLE100E3339JB0 NTCLE100E3339JB0A NTCLE100E3471GB0 NTCLE100E3471GB0A NTCLE100E3471HB0 NTCLE100E3471HB0A NTCLE100E3471JB0 NTCLE100E3471JB0A NTCLE100E3472GB0 NTCLE100E3472GB0A NTCLE100E3472HB0 NTCLE100E3472HB0A NTCLE100E3472JB0 NTCLE100E3472JB0A NTCLE100E3473GB0 NTCLE100E3473GB0A NTCLE100E3473HB0 NTCLE100E3473HB0A NTCLE100E3473JB0 NTCLE100E3473JB0A NTCLE100E3474GB0 NTCLE100E3474GB0A NTCLE100E3474HB0 NTCLE100E3474HB0A NTCLE100E3474JB0 NTCLE100E3474JB0A NTCLE100E3478GB0 NTCLE100E3478GB0A NTCLE100E3478HB0 NTCLE100E3478HB0A NTCLE100E3478JB0 NTCLE100E3478JB0A NTCLE100E3479GB0 NTCLE100E3479GB0A NTCLE100E3479HB0 NTCLE100E3479HB0A NTCLE100E3479JB0 NTCLE100E3479JB0A NTCLE100E3502GB0 NTCLE100E3502GB0A NTCLE100E3502HB0 NTCLE100E3502HB0A NTCLE100E3502JB0 NTCLE100E3502JB0A NTCLE100E3503GB0 NTCLE100E3503GB0A NTCLE100E3503HB0 NTCLE100E3503HB0A NTCLE100E3503JB0 NTCLE100E3503JB0A NTCLE100E3681GB0 NTCLE100E3681GB0A NTCLE100E3681HB0 NTCLE100E3681HB0A NTCLE100E3681JB0 NTCLE100E3681JB0A NTCLE100E3682GB0 NTCLE100E3682GB0A NTCLE100E3682HB0 NTCLE100E3682HB0A NTCLE100E3682JB0 NTCLE100E3682JB0A NTCLE100E3683GB0 NTCLE100E3683GB0A NTCLE100E3683HB0 NTCLE100E3683HB0A NTCLE100E3683JB0 NTCLE100E3683JB0A NTCLE100E3688GB0 NTCLE100E3688GB0A NTCLE100E3688HB0 NTCLE100E3688HB0A NTCLE100E3688JB0 NTCLE100E3688JB0A NTCLE100E3689GB0 NTCLE100E3689GB0A NTCLE100E3689HB0 NTCLE100E3689HB0A NTCLE100E3689JB0 NTCLE100E3689JB0A
Text Version of Document
NTCLE100E3

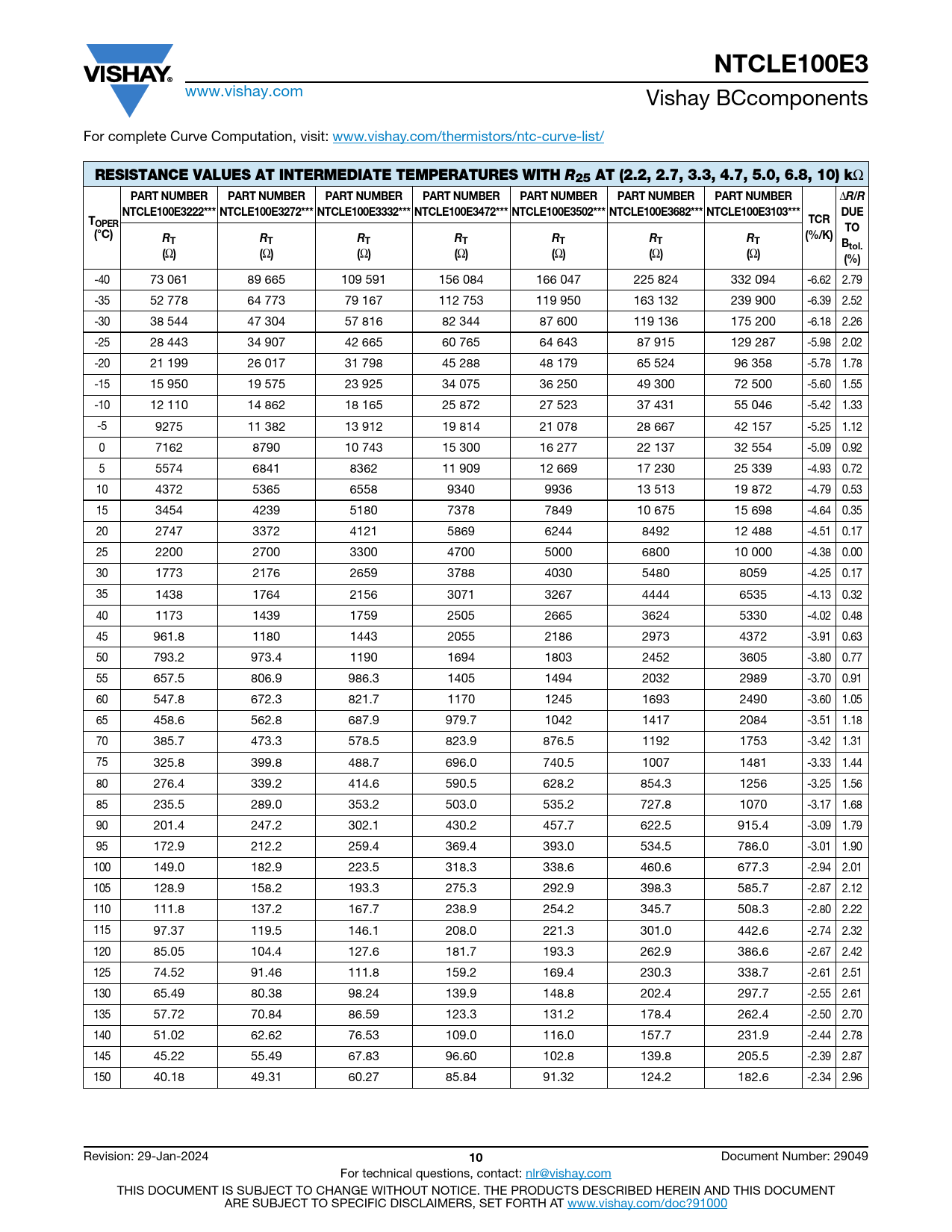

www.vishay.com Vishay BCcomponents For complete Curve Computation, visit: www.vishay.com/thermistors/ntc-curve-list/
RESISTANCE VALUES AT INTERMEDIATE TEMPERATURES WITH R 25 AT (2.2, 2.7, 3.3, 4.7, 5.0, 6.8, 10) k
Ω
PART NUMBER PART NUMBER PART NUMBER PART NUMBER PART NUMBER PART NUMBER PART NUMBER
Δ
R /R NTCLE100E3222*** NTCLE100E3272*** NTCLE100E3332*** NTCLE100E3472*** NTCLE100E3502*** NTCLE100E3682*** NTCLE100E3103*** DUE TOPER TCR TO (°C) (%/K) R T R T R T R T R T R T R T Btol. (
Ω
) (
Ω
) (
Ω
) (
Ω
) (
Ω
) (
Ω
) (
Ω
) (%)
-40 73 061 89 665 109 591 156 084 166 047 225 824 332 094 -6.62 2.79 -35 52 778 64 773 79 167 112 753 119 950 163 132 239 900 -6.39 2.52 -30 38 544 47 304 57 816 82 344 87 600 119 136 175 200 -6.18 2.26 -25 28 443 34 907 42 665 60 765 64 643 87 915 129 287 -5.98 2.02 -20 21 199 26 017 31 798 45 288 48 179 65 524 96 358 -5.78 1.78 -15 15 950 19 575 23 925 34 075 36 250 49 300 72 500 -5.60 1.55 -10 12 110 14 862 18 165 25 872 27 523 37 431 55 046 -5.42 1.33 -5 9275 11 382 13 912 19 814 21 078 28 667 42 157 -5.25 1.12 0 7162 8790 10 743 15 300 16 277 22 137 32 554 -5.09 0.92 5 5574 6841 8362 11 909 12 669 17 230 25 339 -4.93 0.72 10 4372 5365 6558 9340 9936 13 513 19 872 -4.79 0.53 15 3454 4239 5180 7378 7849 10 675 15 698 -4.64 0.35 20 2747 3372 4121 5869 6244 8492 12 488 -4.51 0.17 25 2200 2700 3300 4700 5000 6800 10 000 -4.38 0.00 30 1773 2176 2659 3788 4030 5480 8059 -4.25 0.17 35 1438 1764 2156 3071 3267 4444 6535 -4.13 0.32 40 1173 1439 1759 2505 2665 3624 5330 -4.02 0.48 45 961.8 1180 1443 2055 2186 2973 4372 -3.91 0.63 50 793.2 973.4 1190 1694 1803 2452 3605 -3.80 0.77 55 657.5 806.9 986.3 1405 1494 2032 2989 -3.70 0.91 60 547.8 672.3 821.7 1170 1245 1693 2490 -3.60 1.05 65 458.6 562.8 687.9 979.7 1042 1417 2084 -3.51 1.18 70 385.7 473.3 578.5 823.9 876.5 1192 1753 -3.42 1.31 75 325.8 399.8 488.7 696.0 740.5 1007 1481 -3.33 1.44 80 276.4 339.2 414.6 590.5 628.2 854.3 1256 -3.25 1.56 85 235.5 289.0 353.2 503.0 535.2 727.8 1070 -3.17 1.68 90 201.4 247.2 302.1 430.2 457.7 622.5 915.4 -3.09 1.79 95 172.9 212.2 259.4 369.4 393.0 534.5 786.0 -3.01 1.90 100 149.0 182.9 223.5 318.3 338.6 460.6 677.3 -2.94 2.01 105 128.9 158.2 193.3 275.3 292.9 398.3 585.7 -2.87 2.12 110 111.8 137.2 167.7 238.9 254.2 345.7 508.3 -2.80 2.22 115 97.37 119.5 146.1 208.0 221.3 301.0 442.6 -2.74 2.32 120 85.05 104.4 127.6 181.7 193.3 262.9 386.6 -2.67 2.42 125 74.52 91.46 111.8 159.2 169.4 230.3 338.7 -2.61 2.51 130 65.49 80.38 98.24 139.9 148.8 202.4 297.7 -2.55 2.61 135 57.72 70.84 86.59 123.3 131.2 178.4 262.4 -2.50 2.70 140 51.02 62.62 76.53 109.0 116.0 157.7 231.9 -2.44 2.78 145 45.22 55.49 67.83 96.60 102.8 139.8 205.5 -2.39 2.87 150 40.18 49.31 60.27 85.84 91.32 124.2 182.6 -2.34 2.96 Revision: 29-Jan-2024
10
Document Number: 29049 For technical questions, contact: nlr@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
