Datasheet TDA8360; TDA8361; TDA8362 (Philips) - 3
| Manufacturer | Philips |
| Description | Integrated PAL and PAL/NTSC TV processors |
| Pages / Page | 39 / 3 — QUICK REFERENCE DATA. SYMBOL. PARAMETER. CONDITIONS. MIN. TYP. MAX. UNIT. … |
| File Format / Size | PDF / 243 Kb |
| Document Language | English |
QUICK REFERENCE DATA. SYMBOL. PARAMETER. CONDITIONS. MIN. TYP. MAX. UNIT. Input voltages. Output signals. Control voltages
Model Line for this Datasheet
Text Version of Document

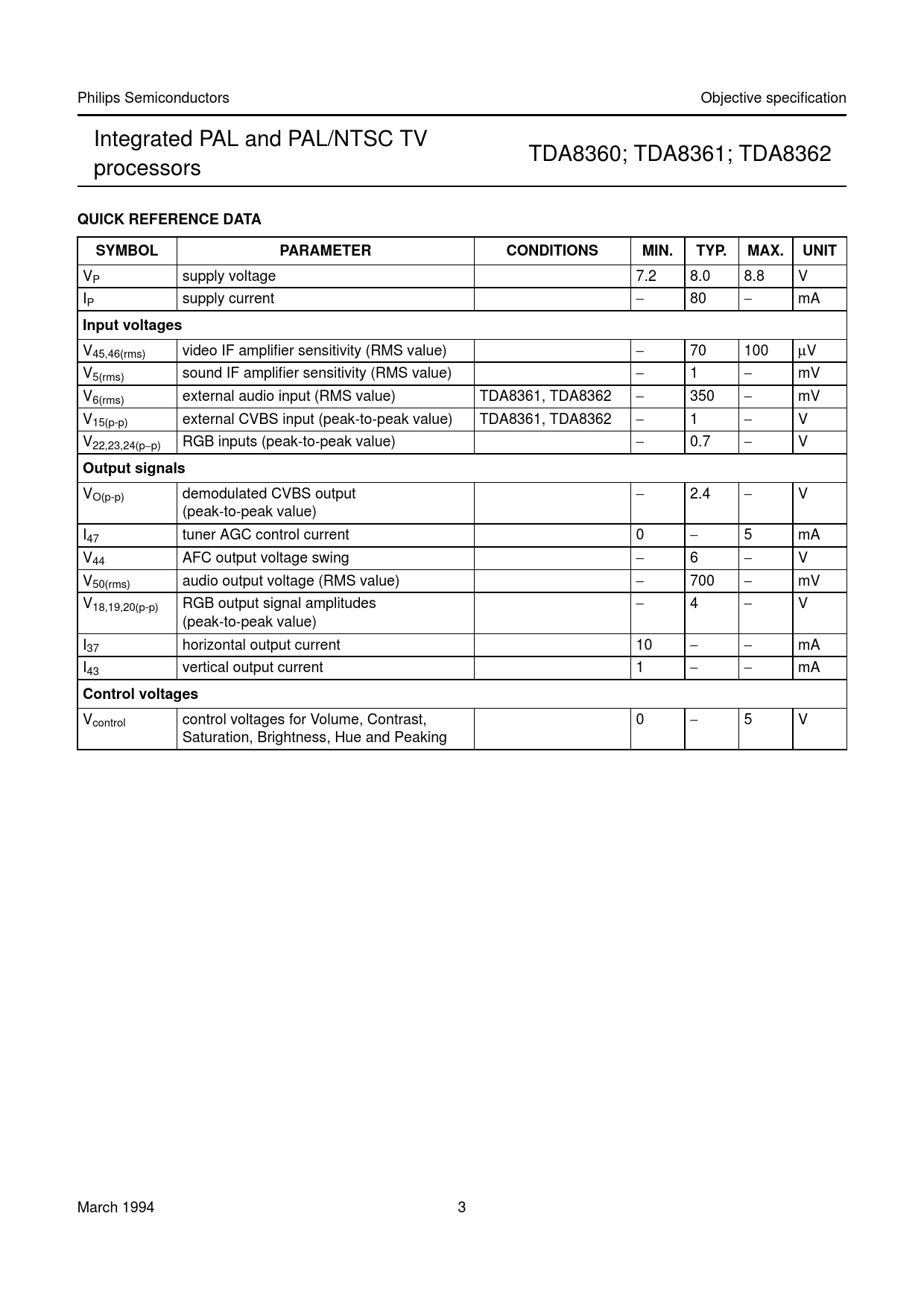

Philips Semiconductors Objective specification Integrated PAL and PAL/NTSC TV TDA8360; TDA8361; TDA8362 processors
QUICK REFERENCE DATA SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT
VP supply voltage 7.2 8.0 8.8 V IP supply current − 80 − mA
Input voltages
V45,46(rms) video IF amplifier sensitivity (RMS value) − 70 100 µV V5(rms) sound IF amplifier sensitivity (RMS value) − 1 − mV V6(rms) external audio input (RMS value) TDA8361, TDA8362 − 350 − mV V15(p-p) external CVBS input (peak-to-peak value) TDA8361, TDA8362 − 1 − V V22,23,24(p−p) RGB inputs (peak-to-peak value) − 0.7 − V
Output signals
VO(p-p) demodulated CVBS output − 2.4 − V (peak-to-peak value) I47 tuner AGC control current 0 − 5 mA V44 AFC output voltage swing − 6 − V V50(rms) audio output voltage (RMS value) − 700 − mV V18,19,20(p-p) RGB output signal amplitudes − 4 − V (peak-to-peak value) I37 horizontal output current 10 − − mA I43 vertical output current 1 − − mA
Control voltages
Vcontrol control voltages for Volume, Contrast, 0 − 5 V Saturation, Brightness, Hue and Peaking March 1994 3
QUICK REFERENCE DATA SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT
VP supply voltage 7.2 8.0 8.8 V IP supply current − 80 − mA
Input voltages
V45,46(rms) video IF amplifier sensitivity (RMS value) − 70 100 µV V5(rms) sound IF amplifier sensitivity (RMS value) − 1 − mV V6(rms) external audio input (RMS value) TDA8361, TDA8362 − 350 − mV V15(p-p) external CVBS input (peak-to-peak value) TDA8361, TDA8362 − 1 − V V22,23,24(p−p) RGB inputs (peak-to-peak value) − 0.7 − V
Output signals
VO(p-p) demodulated CVBS output − 2.4 − V (peak-to-peak value) I47 tuner AGC control current 0 − 5 mA V44 AFC output voltage swing − 6 − V V50(rms) audio output voltage (RMS value) − 700 − mV V18,19,20(p-p) RGB output signal amplitudes − 4 − V (peak-to-peak value) I37 horizontal output current 10 − − mA I43 vertical output current 1 − − mA
Control voltages
Vcontrol control voltages for Volume, Contrast, 0 − 5 V Saturation, Brightness, Hue and Peaking March 1994 3
