ADR1001. SPECIFICATIONS. HEATER AMPLIFIER ELECTRICAL CHARACTERISTICS. Table 2. Parameter. Symbol. Test Conditions/Comments. Min. Typ. Max
Model Line for this Datasheet
Text Version of Document
link to page 4 link to page 4 link to page 4 link to page 7 link to page 17 link to page 17 link to page 5 link to page 5 Data Sheet

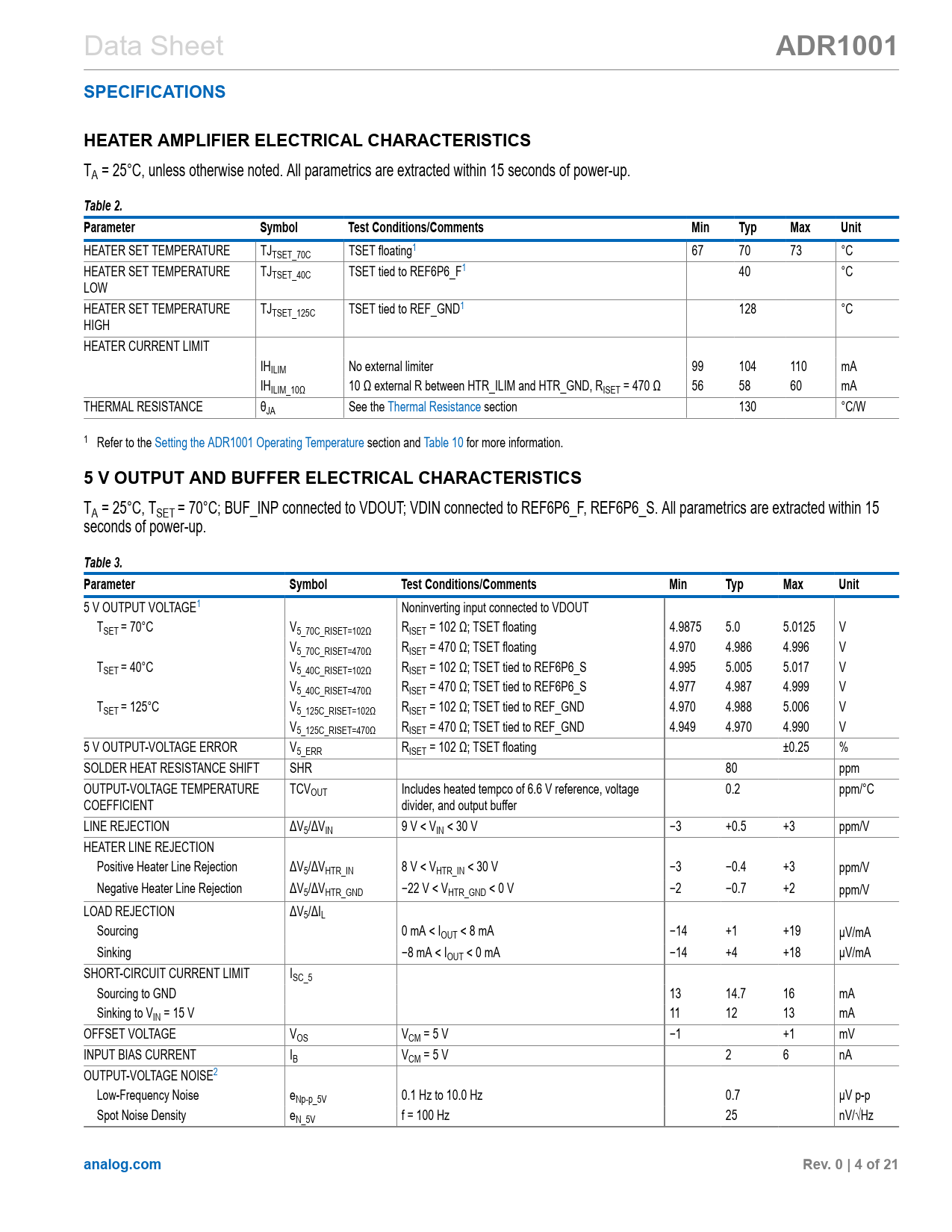

ADR1001 SPECIFICATIONS HEATER AMPLIFIER ELECTRICAL CHARACTERISTICS
TA = 25°C, unless otherwise noted. All parametrics are extracted within 15 seconds of power-up.
Table 2. Parameter Symbol Test Conditions/Comments Min Typ Max Unit
HEATER SET TEMPERATURE TJTSET_70C TSET floating1 67 70 73 °C HEATER SET TEMPERATURE TJTSET_40C TSET tied to REF6P6_F1 40 °C LOW HEATER SET TEMPERATURE TJTSET_125C TSET tied to REF_GND1 128 °C HIGH HEATER CURRENT LIMIT IHILIM No external limiter 99 104 110 mA IHILIM_10Ω 10 Ω external R between HTR_ILIM and HTR_GND, RISET = 470 Ω 56 58 60 mA THERMAL RESISTANCE θJA See the Thermal Resistance section 130 °C/W 1 Refer to the Setting the ADR1001 Operating Temperature section and Table 10 for more information.
5 V OUTPUT AND BUFFER ELECTRICAL CHARACTERISTICS
TA = 25°C, TSET = 70°C; BUF_INP connected to VDOUT; VDIN connected to REF6P6_F, REF6P6_S. All parametrics are extracted within 15 seconds of power-up.
Table 3. Parameter Symbol Test Conditions/Comments Min Typ Max Unit
5 V OUTPUT VOLTAGE1 Noninverting input connected to VDOUT TSET = 70°C V5_70C_RISET=102Ω RISET = 102 Ω; TSET floating 4.9875 5.0 5.0125 V V5_70C_RISET=470Ω RISET = 470 Ω; TSET floating 4.970 4.986 4.996 V TSET = 40°C V5_40C_RISET=102Ω RISET = 102 Ω; TSET tied to REF6P6_S 4.995 5.005 5.017 V V5_40C_RISET=470Ω RISET = 470 Ω; TSET tied to REF6P6_S 4.977 4.987 4.999 V TSET = 125°C V5_125C_RISET=102Ω RISET = 102 Ω; TSET tied to REF_GND 4.970 4.988 5.006 V V5_125C_RISET=470Ω RISET = 470 Ω; TSET tied to REF_GND 4.949 4.970 4.990 V 5 V OUTPUT-VOLTAGE ERROR V5_ERR RISET = 102 Ω; TSET floating ±0.25 % SOLDER HEAT RESISTANCE SHIFT SHR 80 ppm OUTPUT-VOLTAGE TEMPERATURE TCVOUT Includes heated tempco of 6.6 V reference, voltage 0.2 ppm/°C COEFFICIENT divider, and output buffer LINE REJECTION ΔV5/ΔVIN 9 V < VIN < 30 V −3 +0.5 +3 ppm/V HEATER LINE REJECTION Positive Heater Line Rejection ΔV5/ΔVHTR_IN 8 V < VHTR_IN < 30 V −3 −0.4 +3 ppm/V Negative Heater Line Rejection ΔV5/ΔVHTR_GND −22 V < VHTR_GND < 0 V −2 −0.7 +2 ppm/V LOAD REJECTION ΔV5/ΔIL Sourcing 0 mA < IOUT < 8 mA −14 +1 +19 μV/mA Sinking −8 mA < IOUT < 0 mA −14 +4 +18 μV/mA SHORT-CIRCUIT CURRENT LIMIT ISC_5 Sourcing to GND 13 14.7 16 mA Sinking to VIN = 15 V 11 12 13 mA OFFSET VOLTAGE VOS VCM = 5 V −1 +1 mV INPUT BIAS CURRENT IB VCM = 5 V 2 6 nA OUTPUT-VOLTAGE NOISE2 Low-Frequency Noise eNp-p_5V 0.1 Hz to 10.0 Hz 0.7 μV p-p Spot Noise Density eN_5V f = 100 Hz 25 nV/√Hz
