200kHz, 4µA, Rail-to-Rail. I/O Op Amps with Shutdown. MAX9910–MAX9913. General Description. Features. 200kHz GBW
Model Line for this Datasheet
Text Version of Document

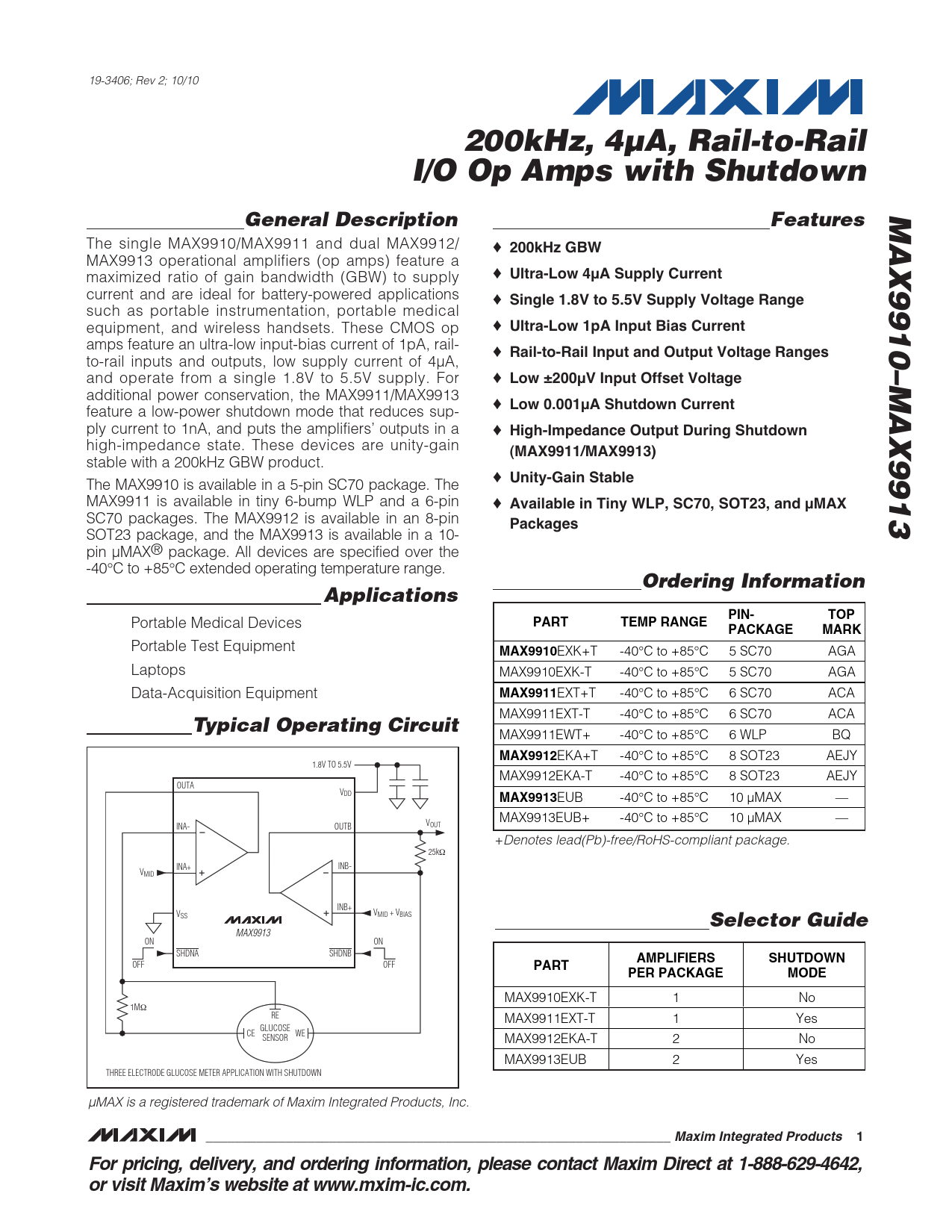

19-3406; Rev 2; 10/10
200kHz, 4µA, Rail-to-Rail I/O Op Amps with Shutdown MAX9910–MAX9913 General Description Features
The single MAX9910/MAX9911 and dual MAX9912/ o
200kHz GBW
MAX9913 operational amplifiers (op amps) feature a maximized ratio of gain bandwidth (GBW) to supply o
Ultra-Low 4µA Supply Current
current and are ideal for battery-powered applications o
Single 1.8V to 5.5V Supply Voltage Range
such as portable instrumentation, portable medical equipment, and wireless handsets. These CMOS op o
Ultra-Low 1pA Input Bias Current
amps feature an ultra-low input-bias current of 1pA, rail- o
Rail-to-Rail Input and Output Voltage Ranges
to-rail inputs and outputs, low supply current of 4µA, and operate from a single 1.8V to 5.5V supply. For o
Low ±200µV Input Offset Voltage
additional power conservation, the MAX9911/MAX9913 o
Low 0.001µA Shutdown Current
feature a low-power shutdown mode that reduces sup- ply current to 1nA, and puts the amplifiers’ outputs in a o
High-Impedance Output During Shutdown
high-impedance state. These devices are unity-gain
(MAX9911/MAX9913)
stable with a 200kHz GBW product. o
Unity-Gain Stable
The MAX9910 is available in a 5-pin SC70 package. The MAX9911 is available in tiny 6-bump WLP and a 6-pin o
Available in Tiny WLP, SC70, SOT23, and µMAX
SC70 packages. The MAX9912 is available in an 8-pin
Packages
SOT23 package, and the MAX9913 is available in a 10- pin µMAX® package. All devices are specified over the -40°C to +85°C extended operating temperature range.
Ordering Information Applications PIN- TOP
Portable Medical Devices
PART TEMP RANGE PACKAGE MARK
Portable Test Equipment
MAX9910
EXK+T -40°C to +85°C 5 SC70 AGA Laptops MAX9910EXK-T -40°C to +85°C 5 SC70 AGA Data-Acquisition Equipment
MAX9911
EXT+T -40°C to +85°C 6 SC70 ACA MAX9911EXT-T -40°C to +85°C 6 SC70 ACA
Typical Operating Circuit
MAX9911EWT+ -40°C to +85°C 6 WLP BQ
MAX9912
EKA+T -40°C to +85°C 8 SOT23 AEJY 1.8V TO 5.5V MAX9912EKA-T -40°C to +85°C 8 SOT23 AEJY OUTA VDD
MAX9913
EUB -40°C to +85°C 10 µMAX — MAX9913EUB+ -40°C to +85°C 10 µMAX — INA- OUTB VOUT +Denotes lead(Pb)-free/RoHS-compliant package. 25kΩ INA+ INB- VMID INB+ V VMID + VBIAS SS
Selector Guide
MAX9913 ON ON SHDNA SHDNB
AMPLIFIERS SHUTDOWN
OFF OFF
PART PER PACKAGE MODE
MAX9910EXK-T 1 No 1MΩ RE MAX9911EXT-T 1 Yes GLUCOSE CE WE SENSOR MAX9912EKA-T 2 No MAX9913EUB 2 Yes THREE ELECTRODE GLUCOSE METER APPLICATION WITH SHUTDOWN µMAX is a registered trademark of Maxim Integrated Products, Inc.
________________________________________________________________ Maxim Integrated Products 1 For pricing, delivery, and ordering information, please contact Maxim Direct at 1-888-629-4642, or visit Maxim’s website at www.mxim-ic.com.
